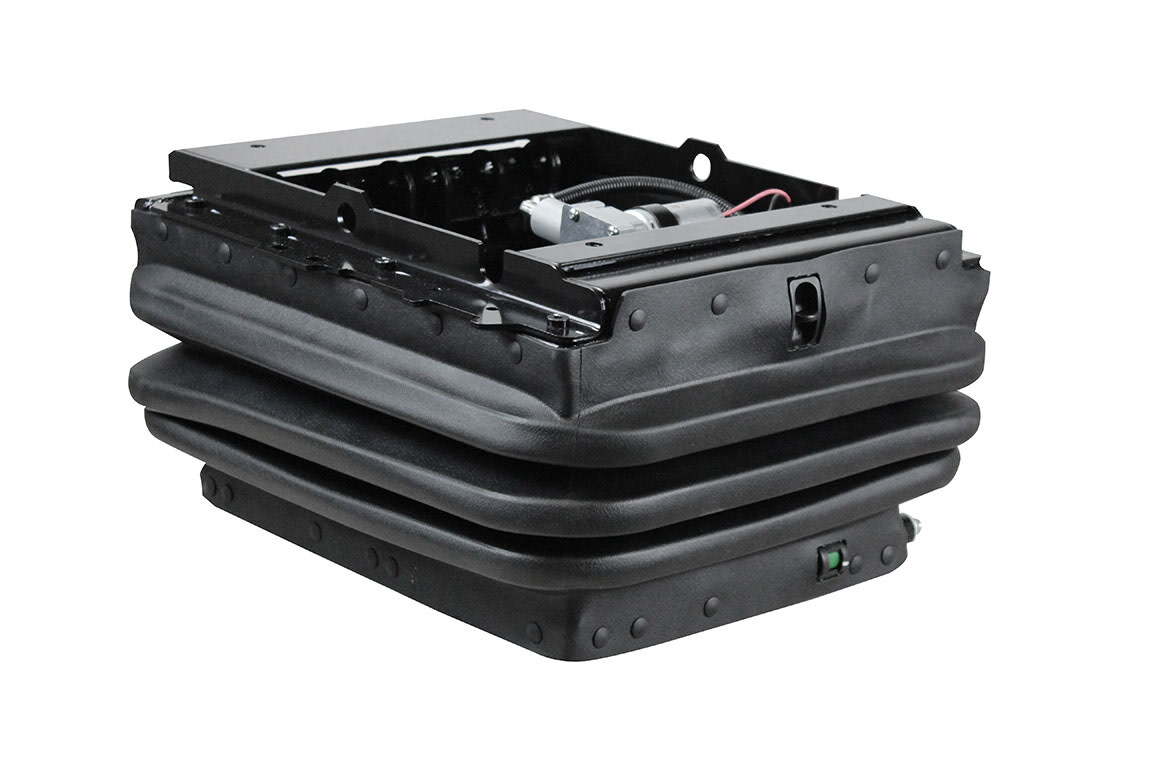

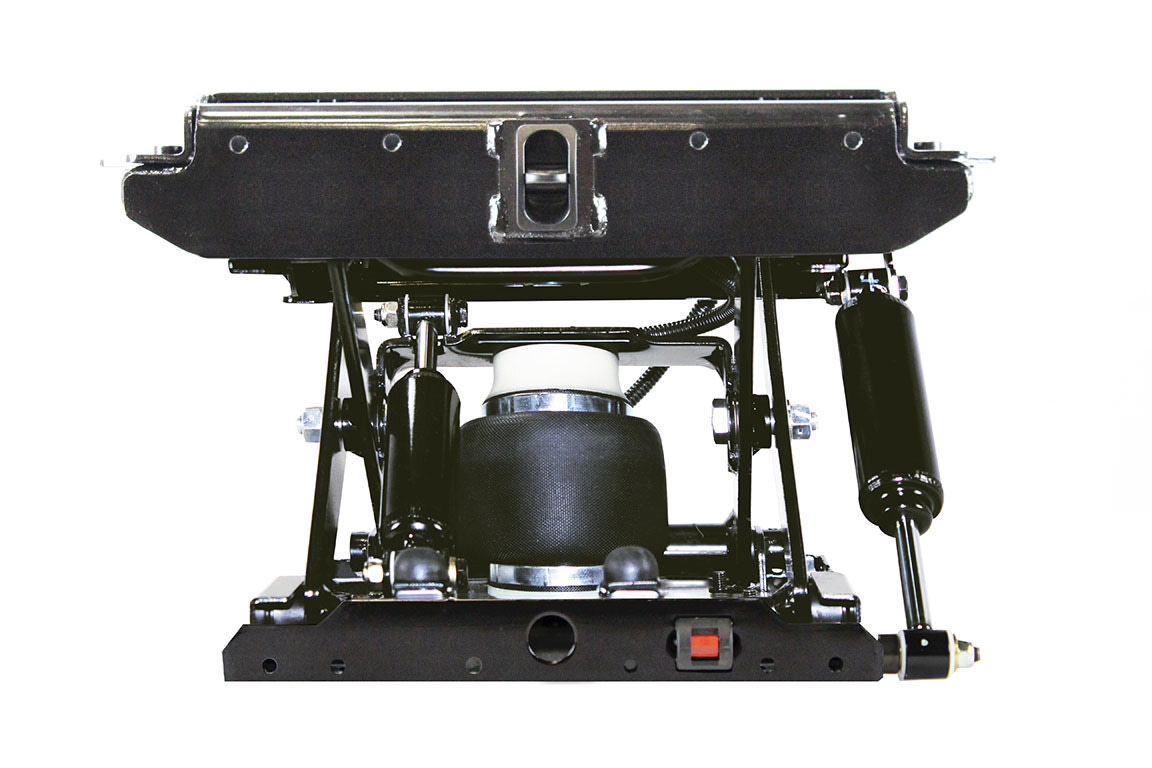

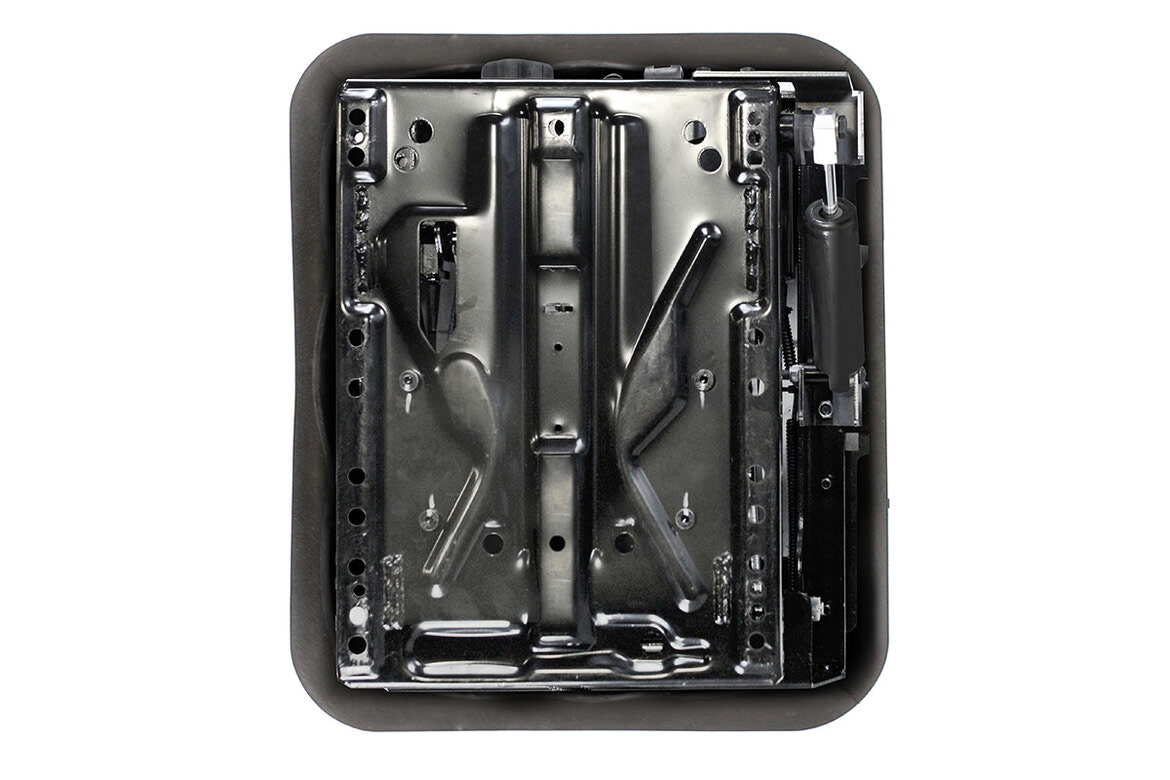

S078CHD 24V Air Suspension with Double Damper

Features

• Heavy Duty Air Ride Suspension

• 24 Volt Compressor Included
• Up to 190kg (418lbs) Manual Weight Adjustment
• 100mm (4”) Suspension Stroke
• Double Damper
• Suspension Cover

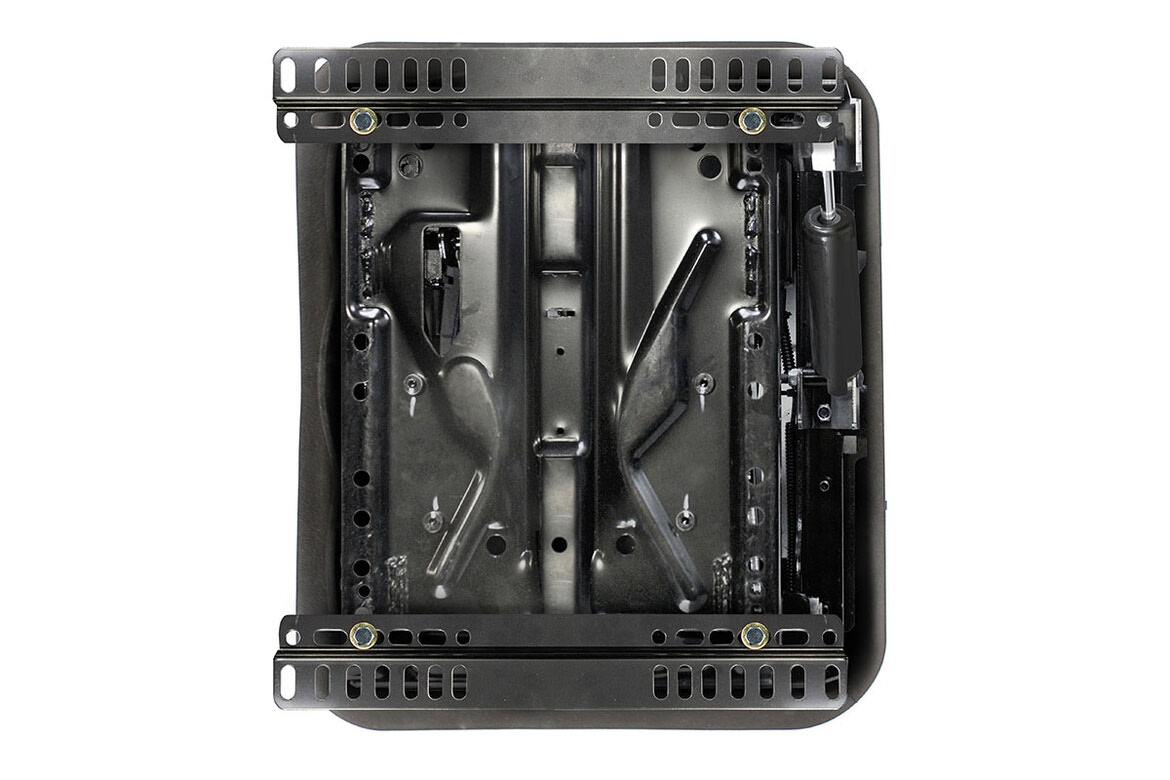

Bolt Pattern (Top of Suspension)

• Side to Side Top Mount 330mm (13”)

• Front to Back Top Mount 155mm (6”), 261mm (10”), 355mm (14”)

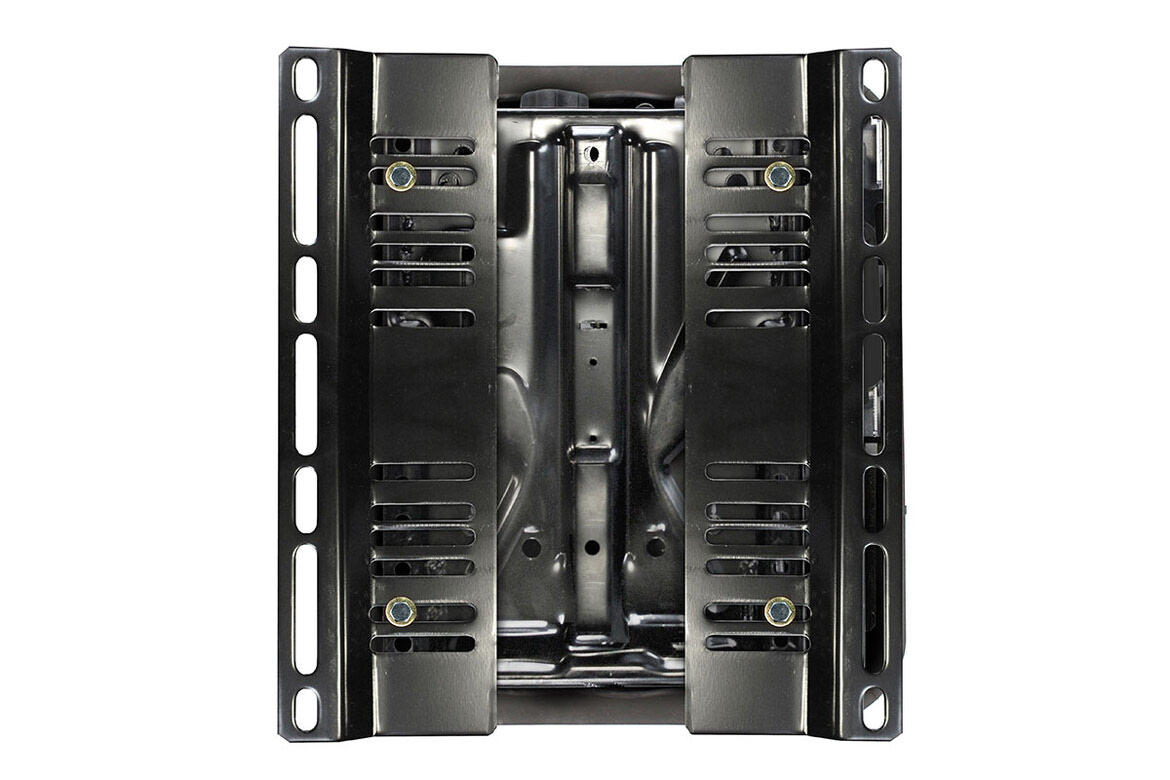

Bolt Pattern (Bottom of Suspension)

• Side to Side Bottom Mount 260mm (10.25”)

• Front to Back Bottom Mount 246mm (10”), 292mm (11.5”), 325mm (13”)

Industry Standards

• Operator Seat Vibration: ISO 7096

Suitable for Many Applications.
