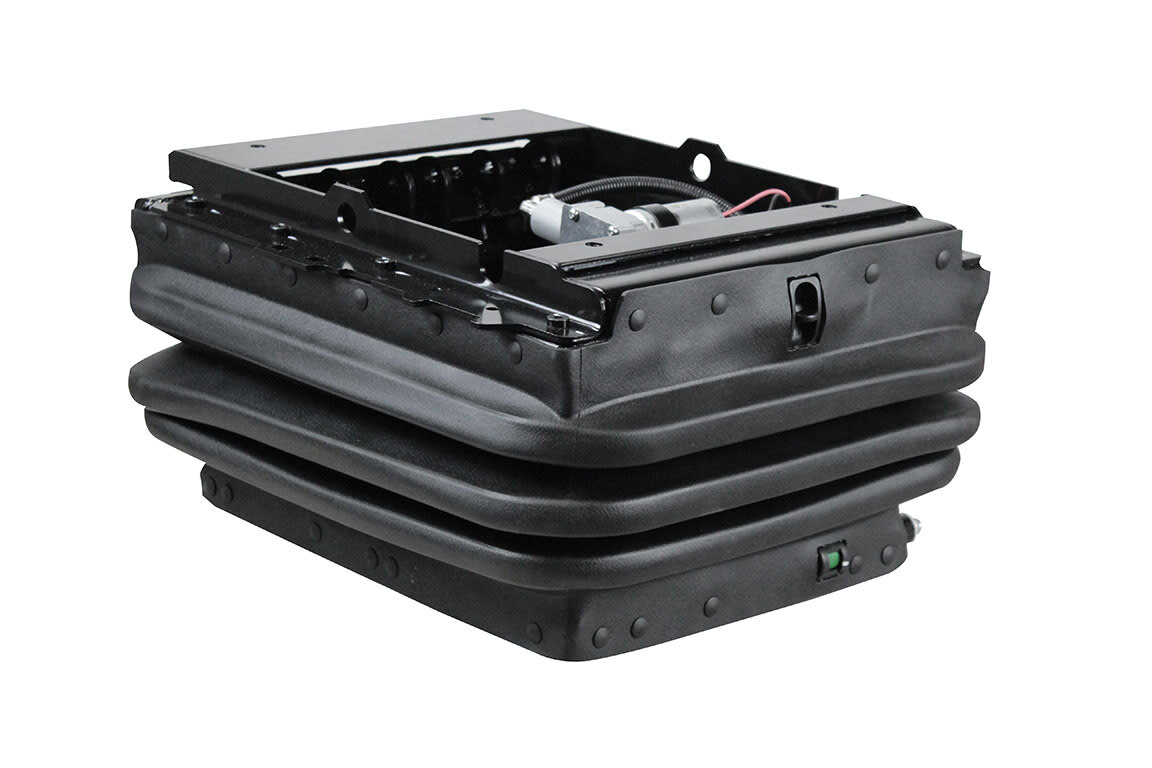

Features ![](/uploads/files/images/buttons/Feature%20Sheet%20Button%20Large.png)
- Heavy Duty Air Ride Suspension
- 12 Volt Compressor Included
- Up to 190kg (418lbs) Manual Weight Adjustment
- 100mm (4”) Suspension Stroke
- Double Damper
- Suspension Cover

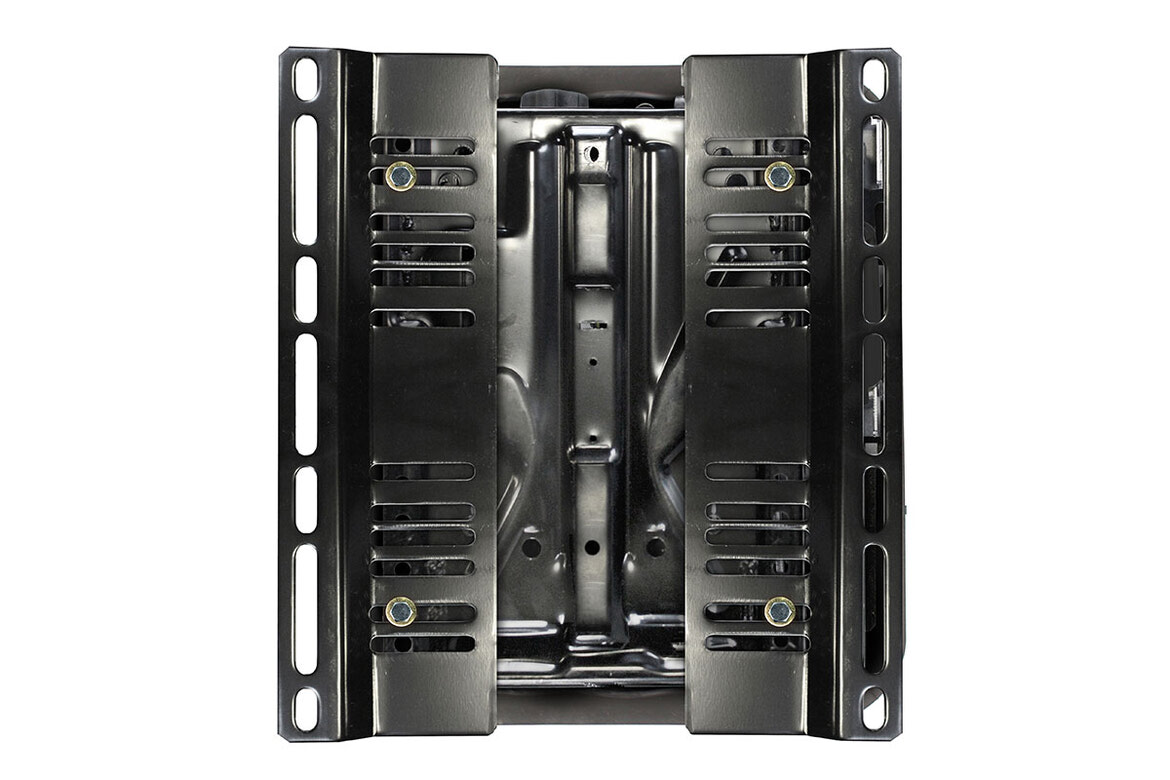

Bolt Pattern (Top of Suspension) ![](/uploads/files/images/buttons/Top-Bolt-Pattern.png)
- Side to Side Top Mount 330mm (13”)
- Front to Back Top Mount 155mm (6”), 261mm (10”), 355mm (14”)

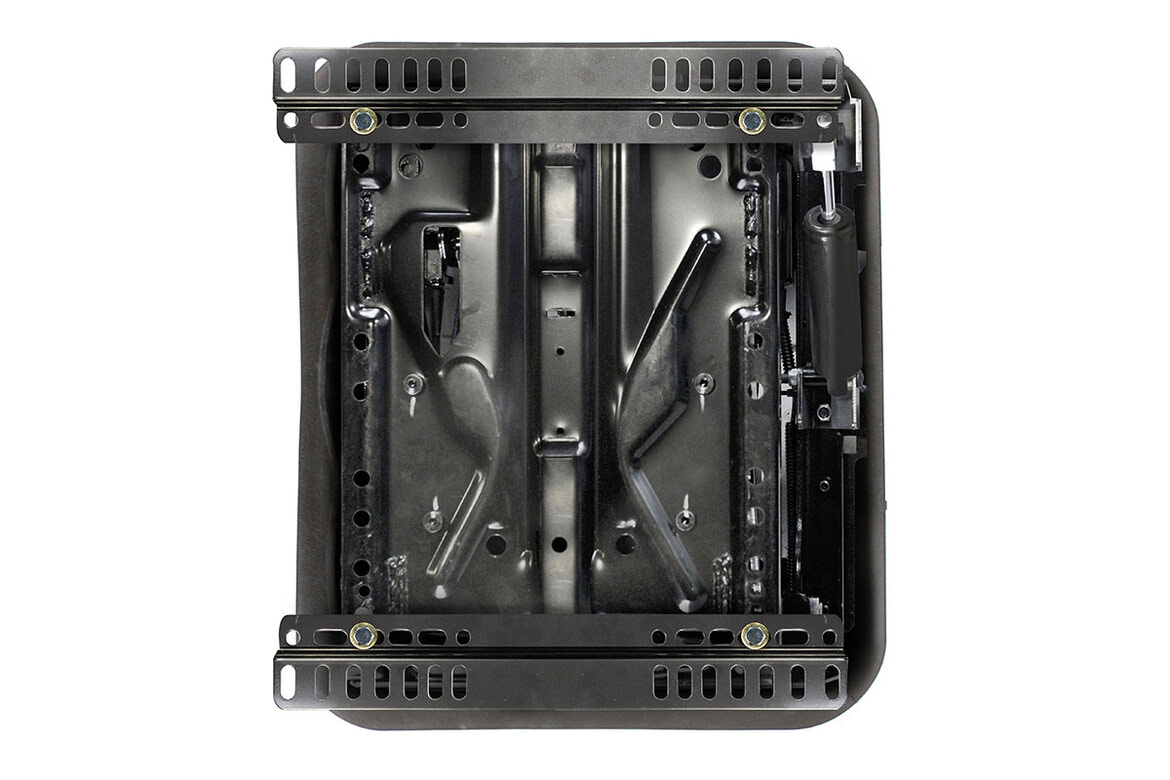

Bolt Pattern (Bottom of Suspension) ![](/uploads/files/images/buttons/Bottom-Bolt-Pattern.png)
- Side to Side Bottom Mount 260mm (10.25”)
- Front to Back Bottom Mount 246mm (10”), 292mm (11.5”), 325mm (13”)
Industry Standards
- Operator Seat Vibration: ISO 7096
Suitable for Many Applications.
