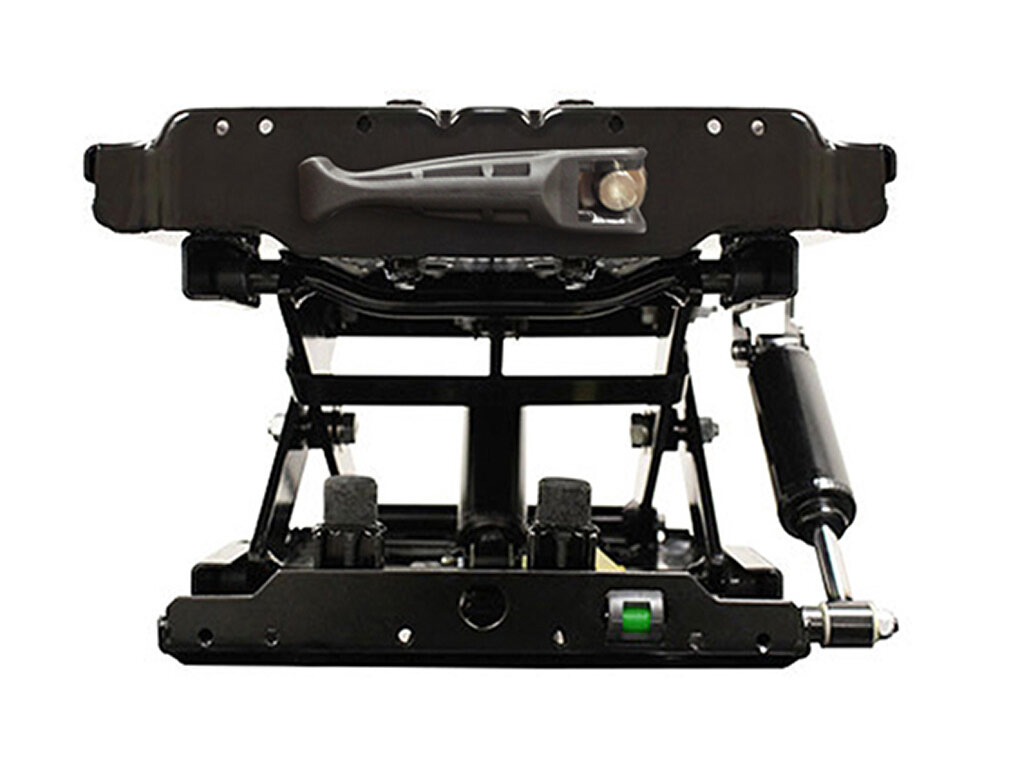

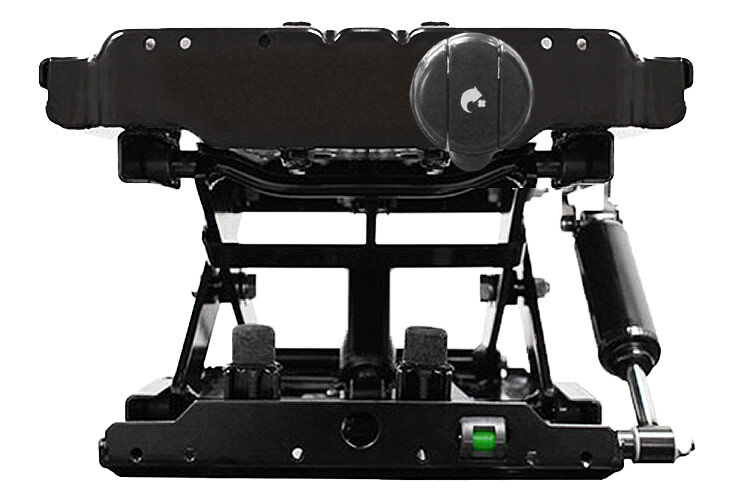

S073HD Mechanical Suspension with Double Damper
$685.33 USD
570243HD
Features
- Heavy Duty Mechanical Suspension
- Up to 190kg (418lbs) Manual Weight Adjustment
- 100mm (4”) Suspension Stroke
- Double Damper

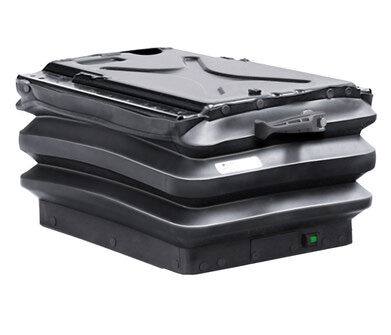

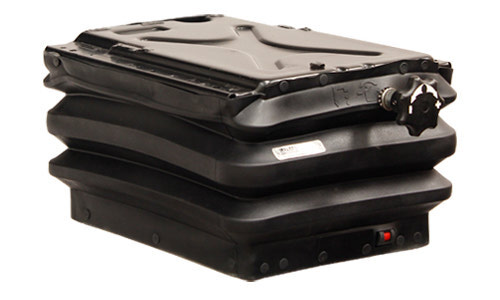

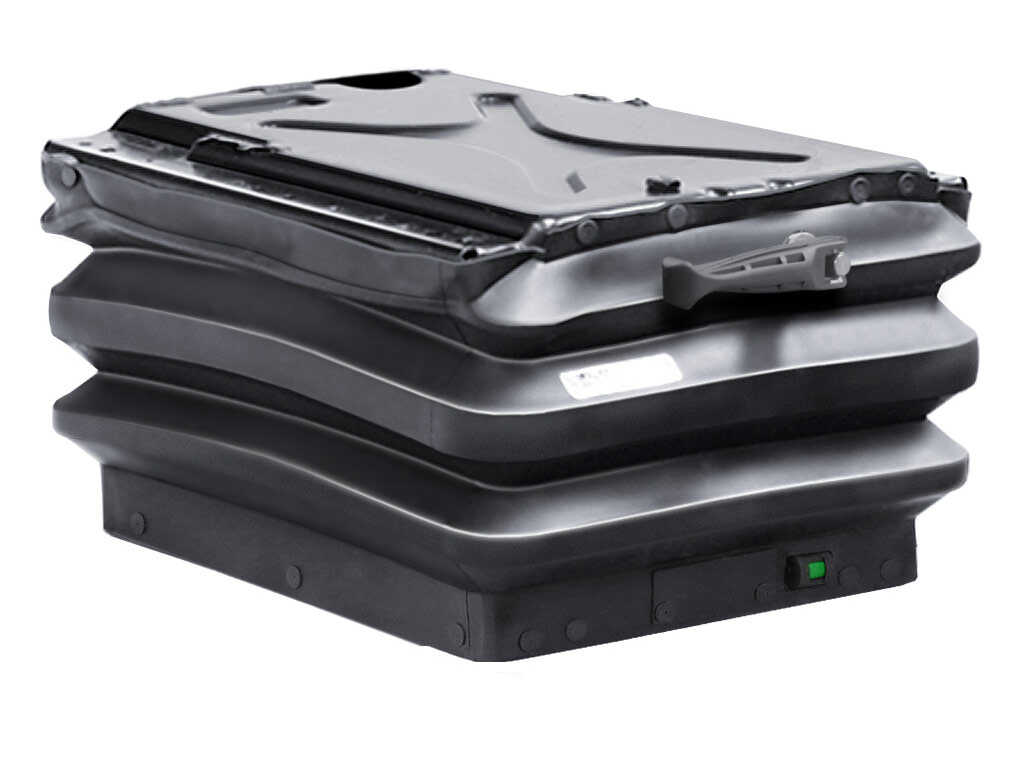

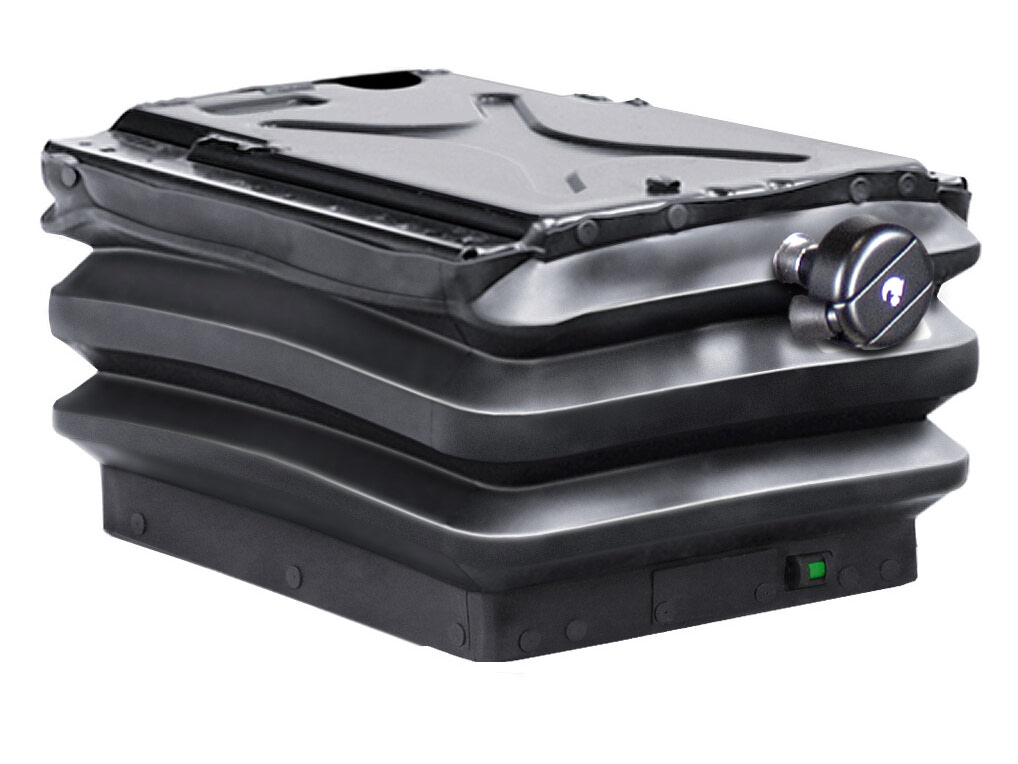

- Suspension Cover
Bolt Pattern (Top of Suspension)
- Side to Side Top Mount 330mm (13”)
- Front to Back Top Mount 254mm (10”), 280mm (11”), 305mm (12”)

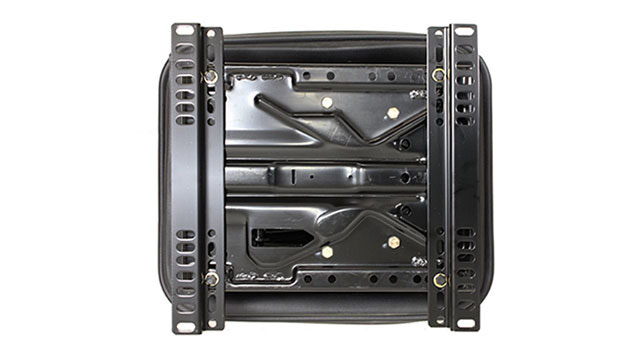

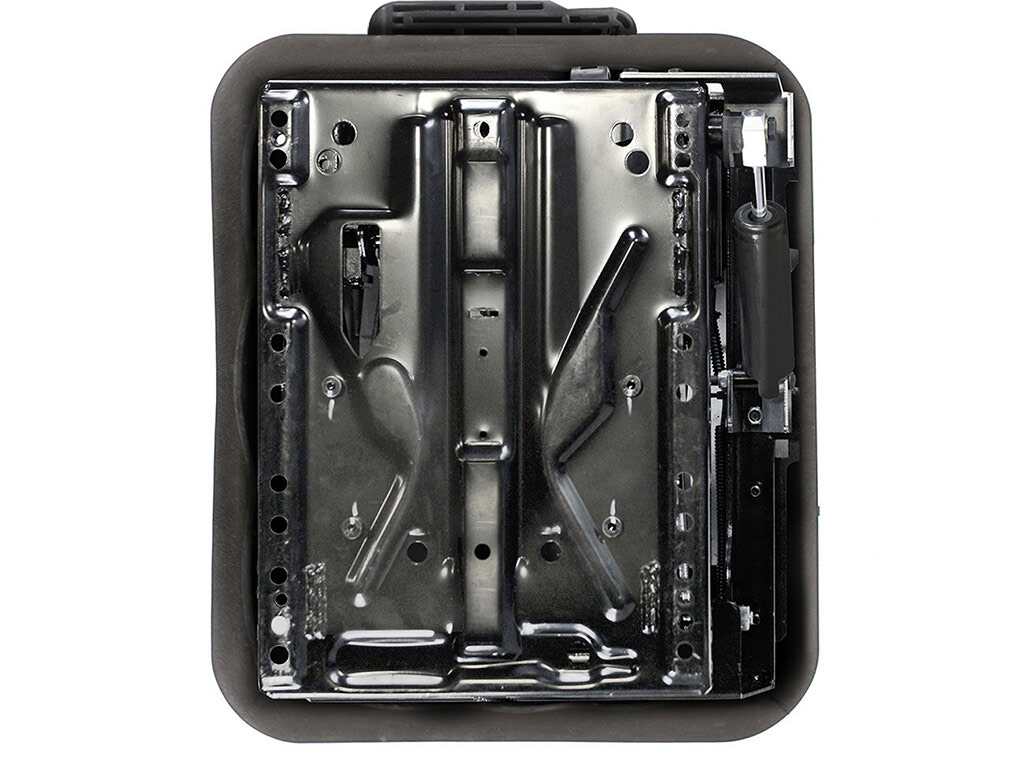

Bolt Pattern (Bottom of Suspension)
- Side to Side Bottom Mount 260mm (10.25”)
- Front to Back Bottom Mount 280mm
(11”), 305mm (12”), 324mm (12.75”)
Suitable for Many Applications.
