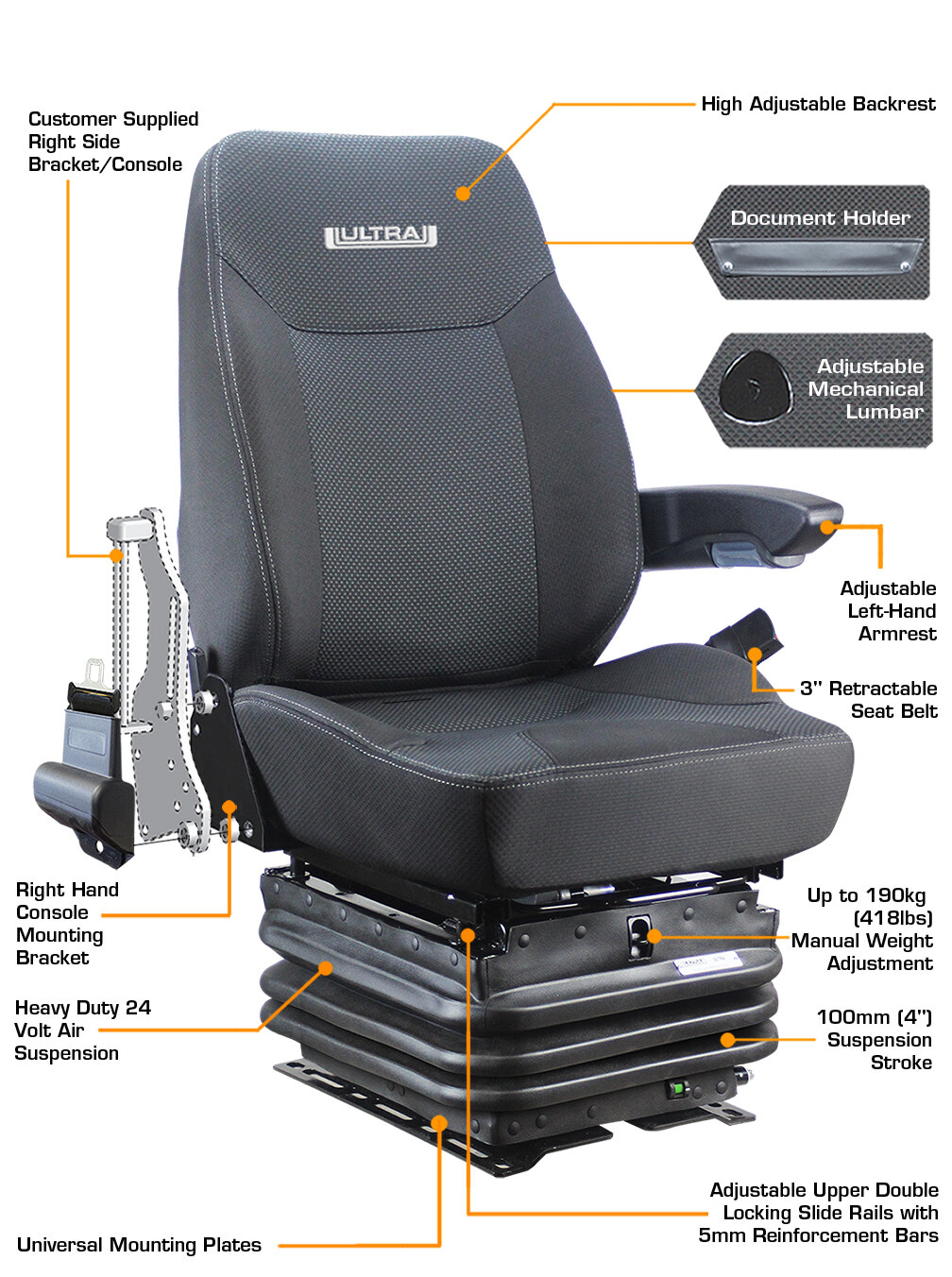

Features
- High Adjustable Backrest
 - Right-hand side Control for Recline Adjustment
 - Adjustable Mechanical Lumbar
 - Document Holder

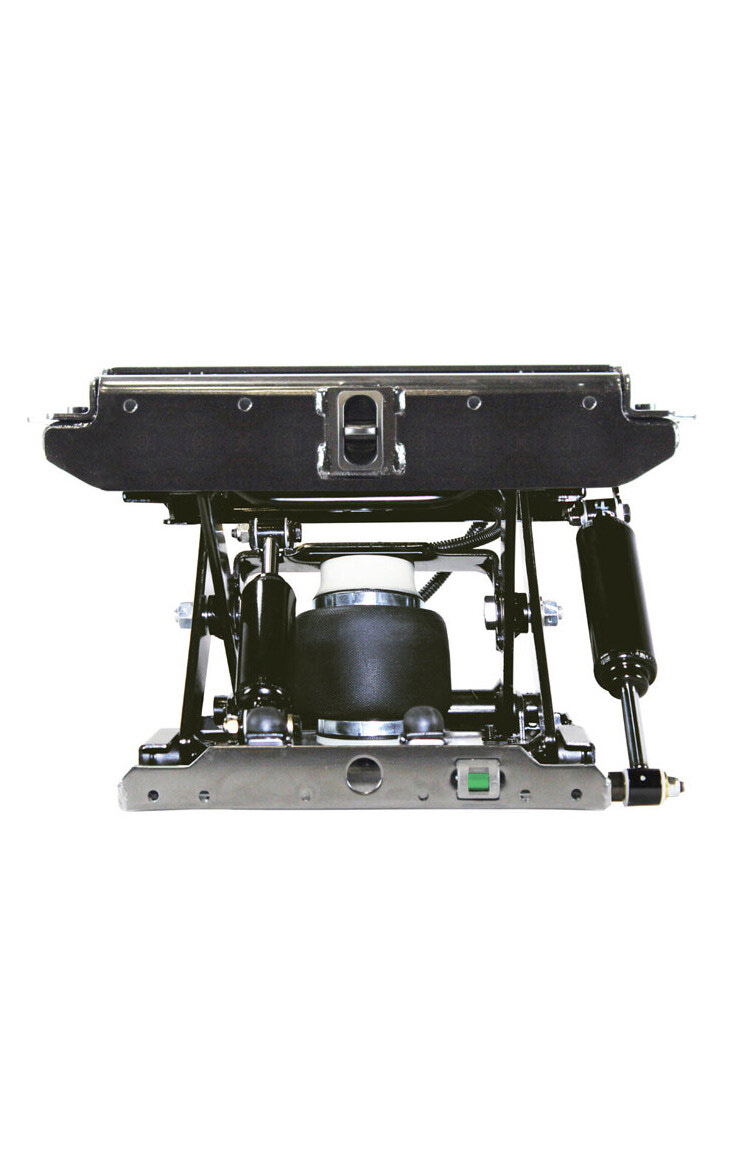

 - Heavy Duty 24 Volt Air Suspension
 - Up to 190kg (418lbs) Manual Weight Adjustment
 - Double Dampers
 - Adjustable Upper Double Locking Slide Rail with 5mm Reinforcement Bars
 - Adjustable Left-Hand Armrest
 - 100mm (4”) Suspension Stroke
 - 3” Retractable Seat Belt

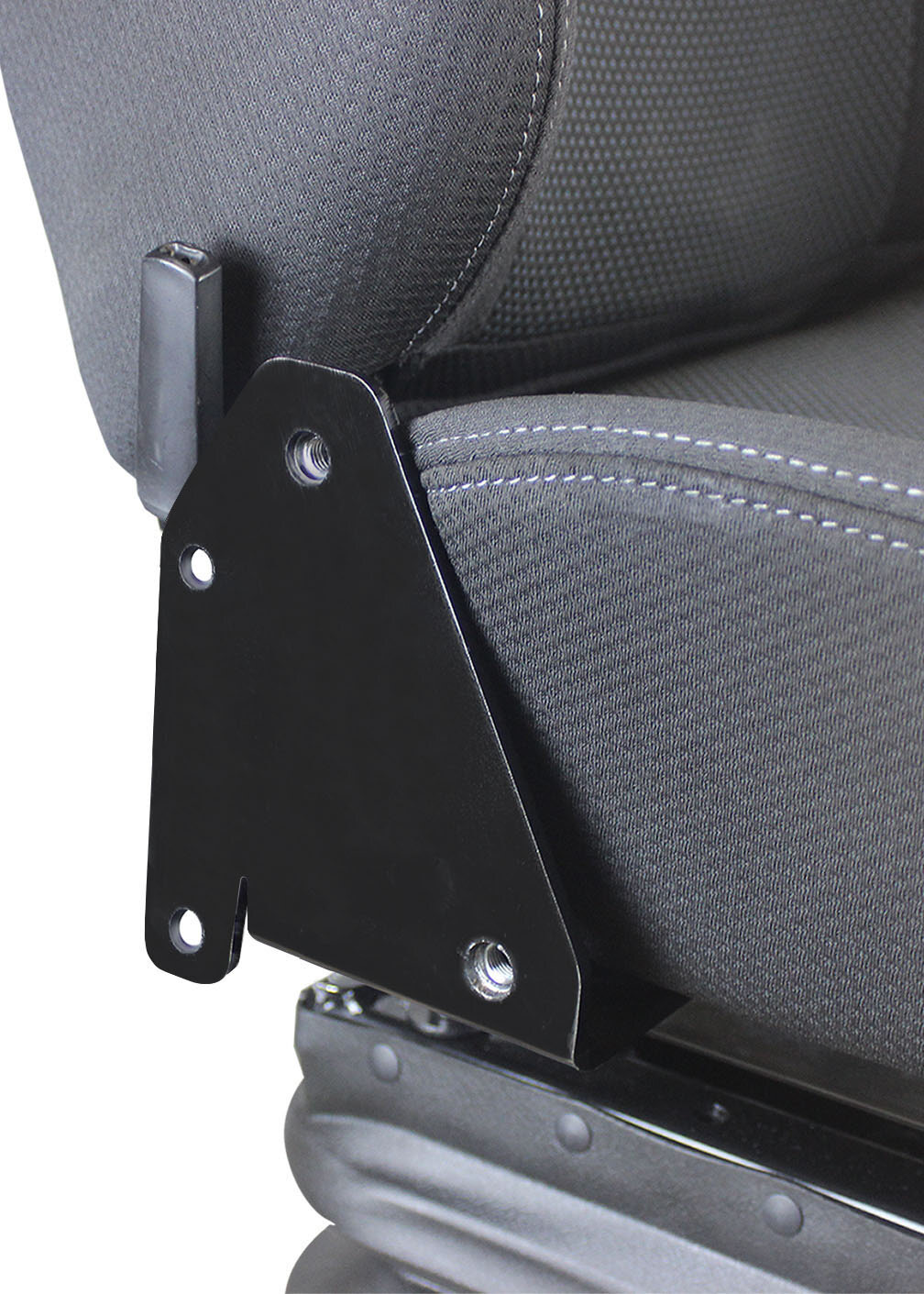

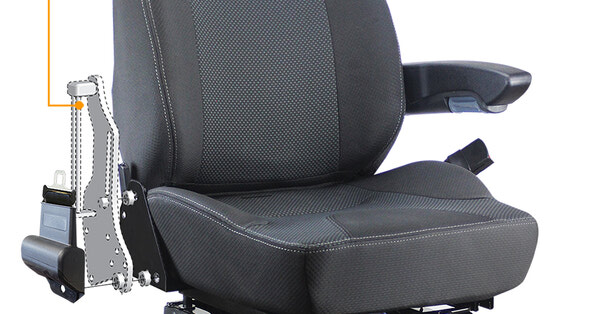

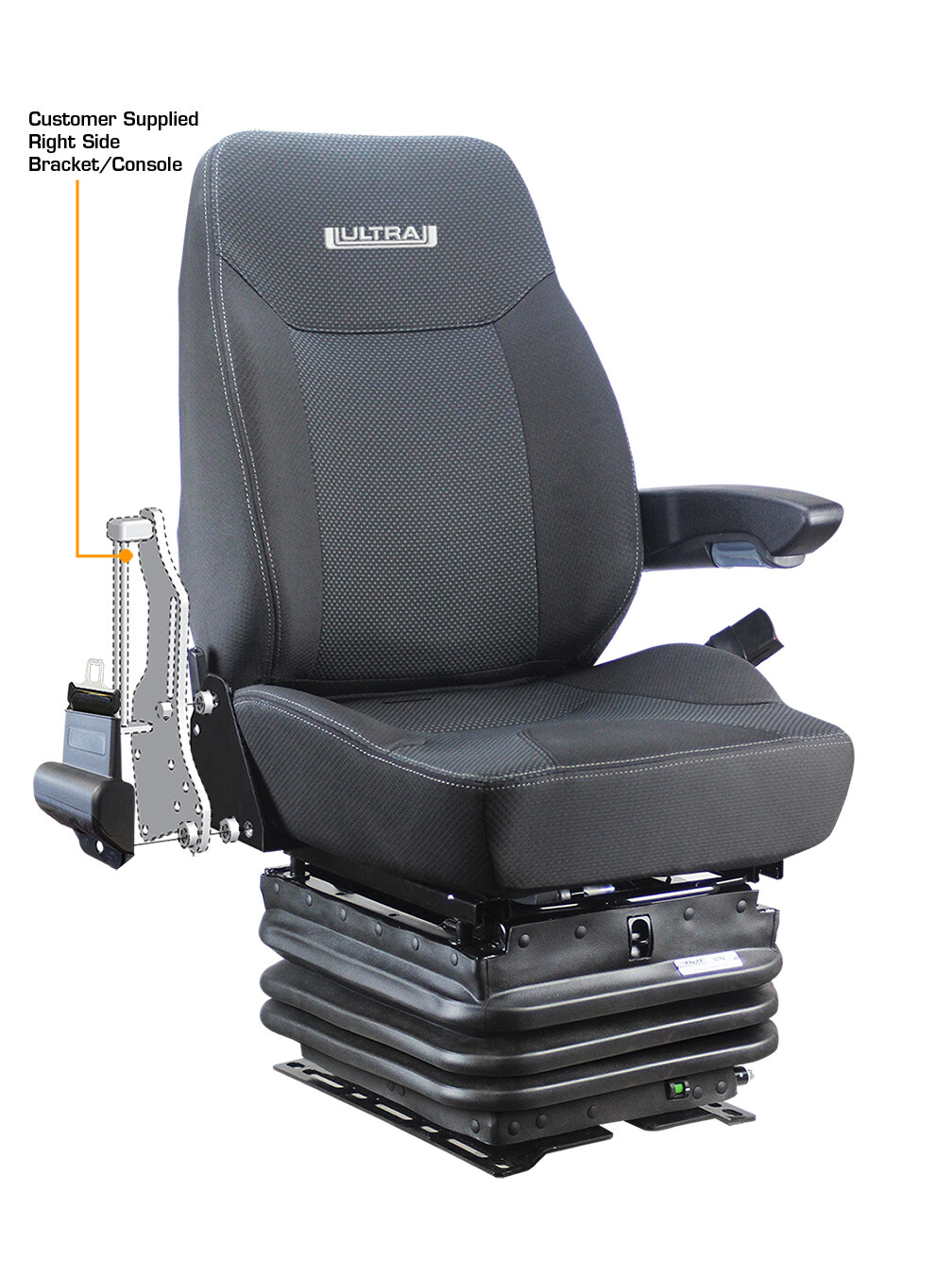

 - Right-Hand Console Mounting Bracket

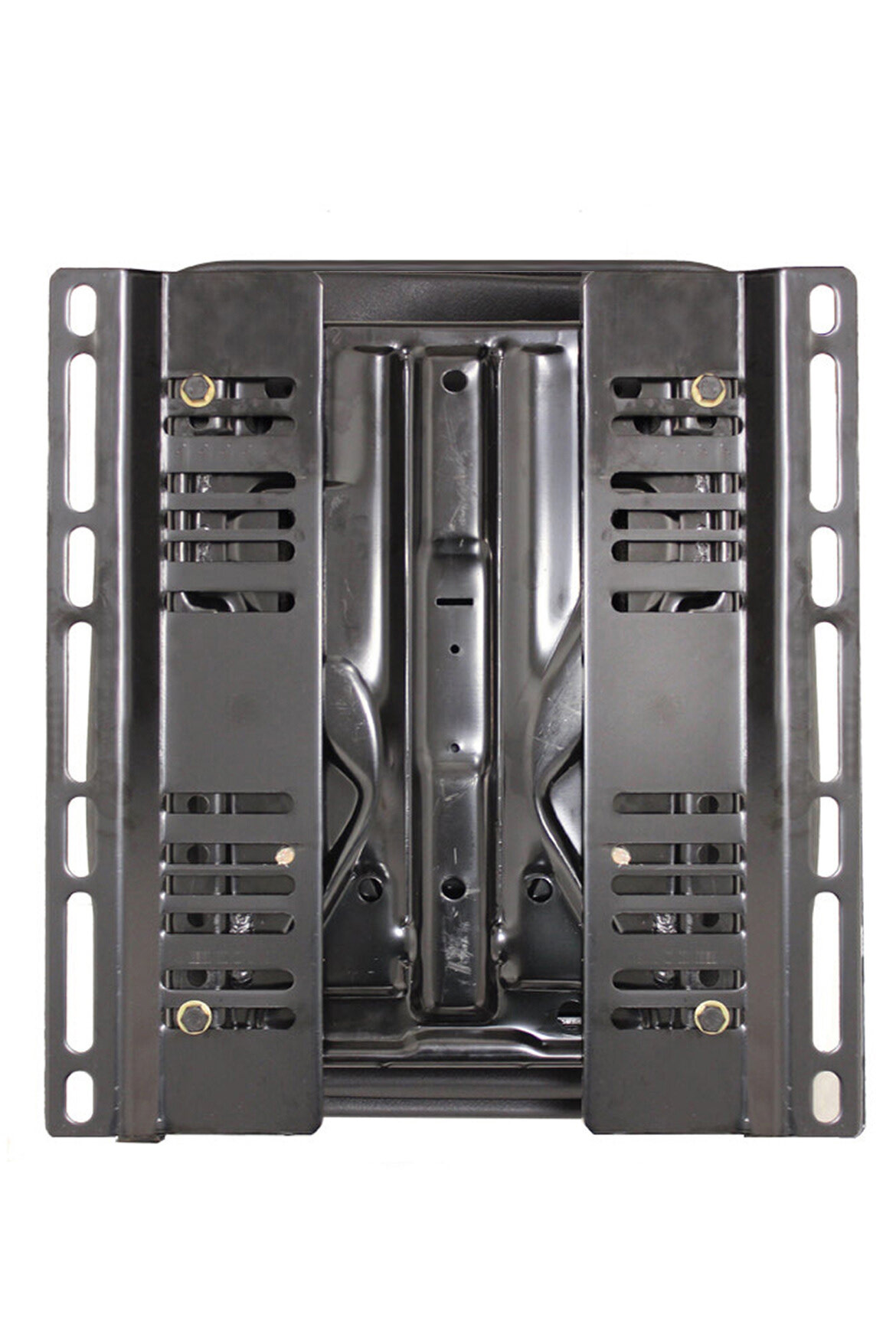

 - Universal Mounting Plates

Bolt Pattern
- Mounting Plates (88059) Shipped With Seat
 - Side to Side - Adjustable From a Minimum of 273mm (10 3/4") to a Maximum of 363mm (14 5/16")
 - Front to Back - Various up to 406mm (16")

Industry Standards
-
Operator Seat Vibration: ISO 7096
 -
Flammability: FMVSS 302
 -
Seat Belt Anchor: ISO 6683
