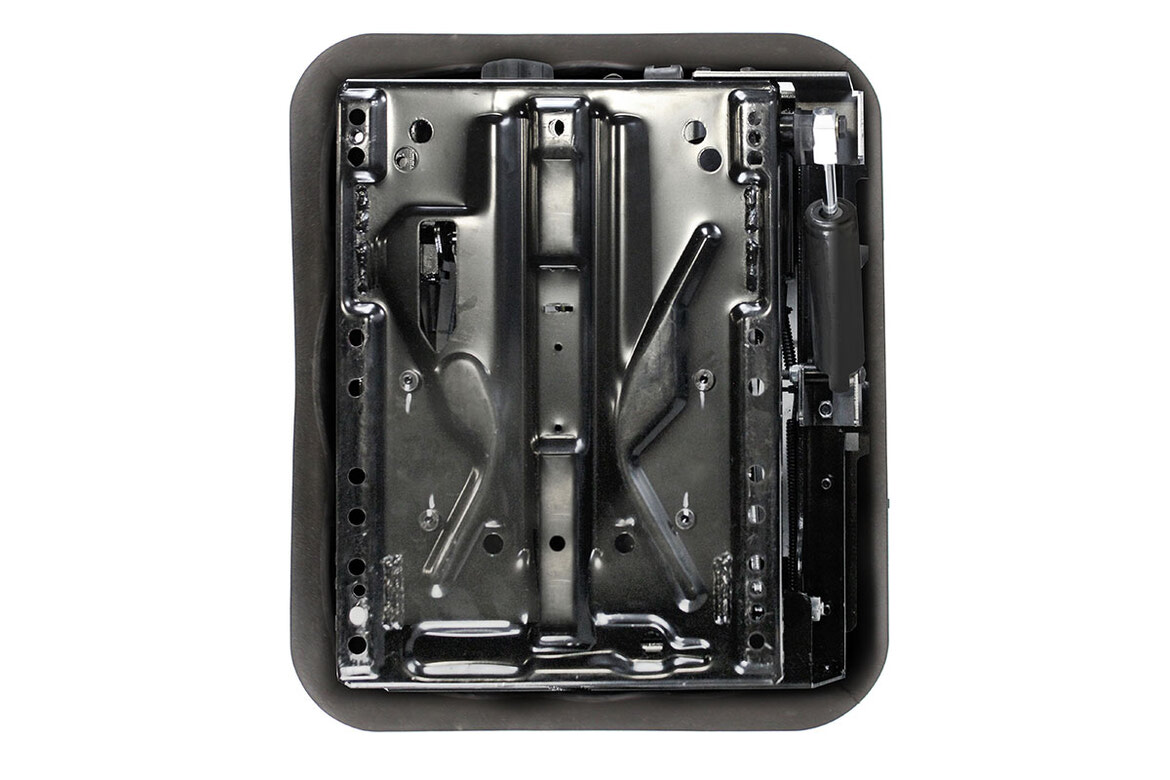

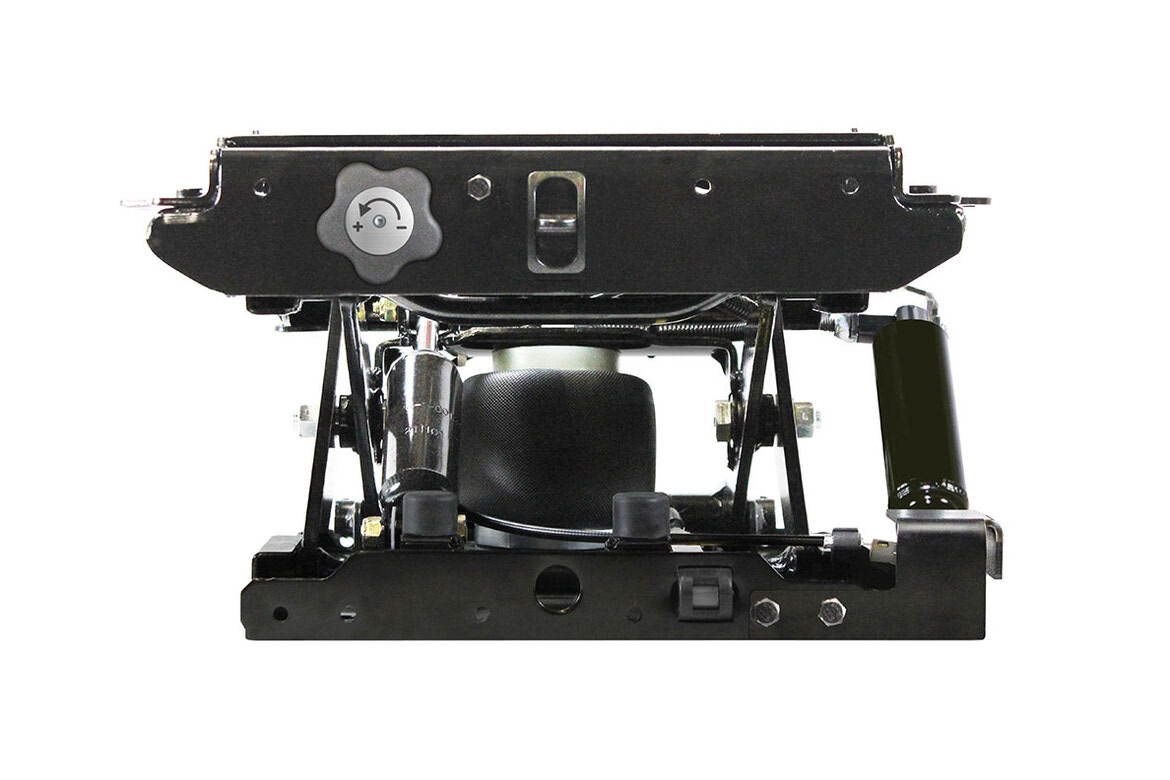

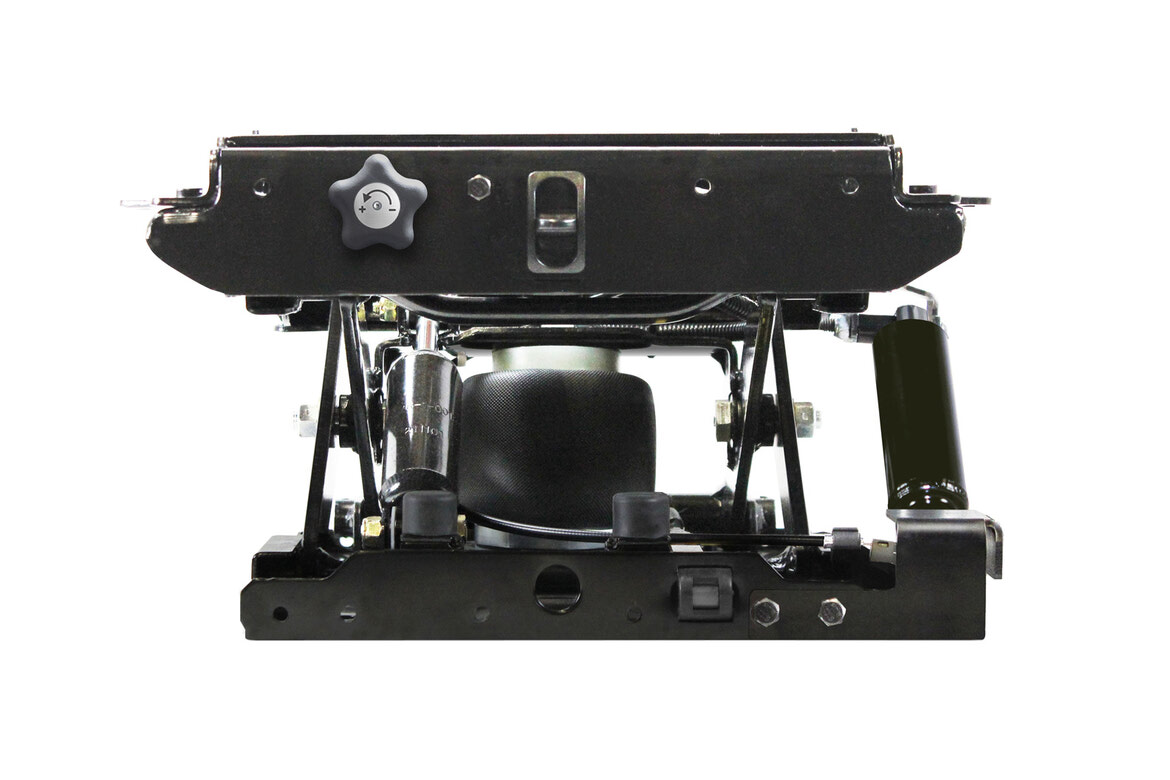

S078CAD 24V Air Suspension with Double Damper (One Adjustable)
$1,276.00 USD
570349C24AD
Features
- Heavy Duty Air Ride Suspension
- 24 Volt Compressor Included
- Up to 190kg (418lbs) Manual Weight Adjustment
- 100mm (4”) Suspension Stroke
- Double Damper (One Adjustable)

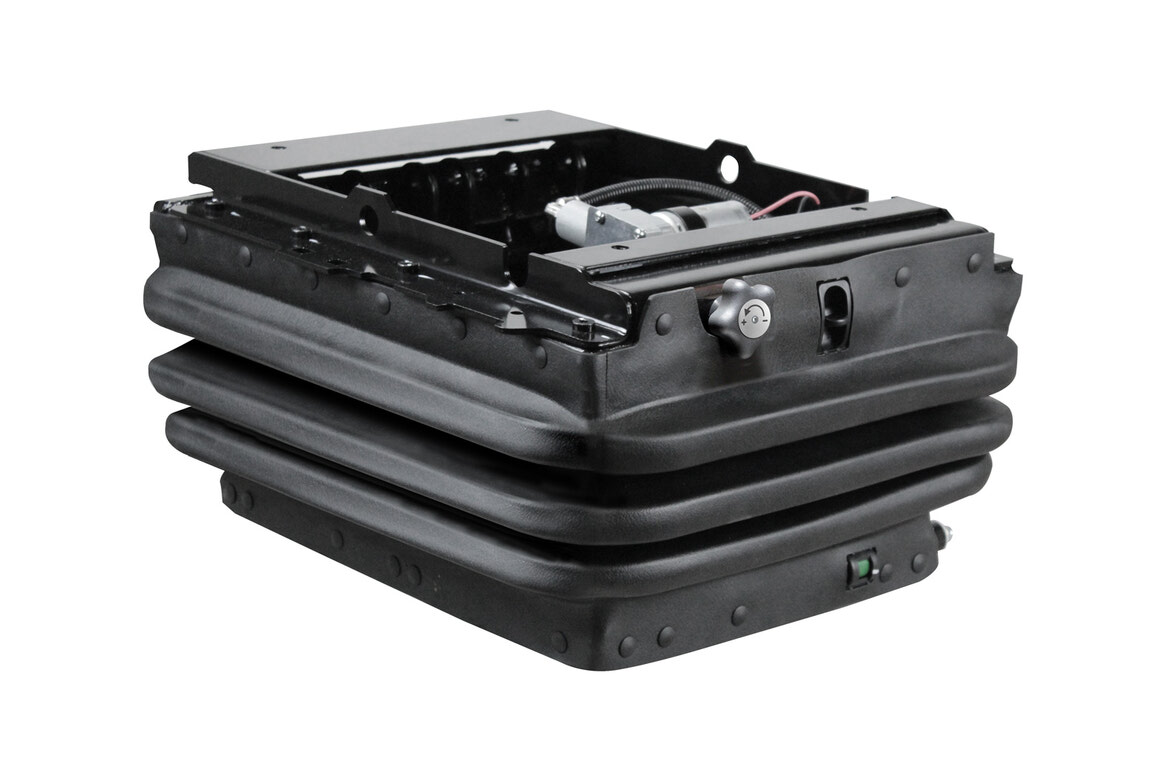

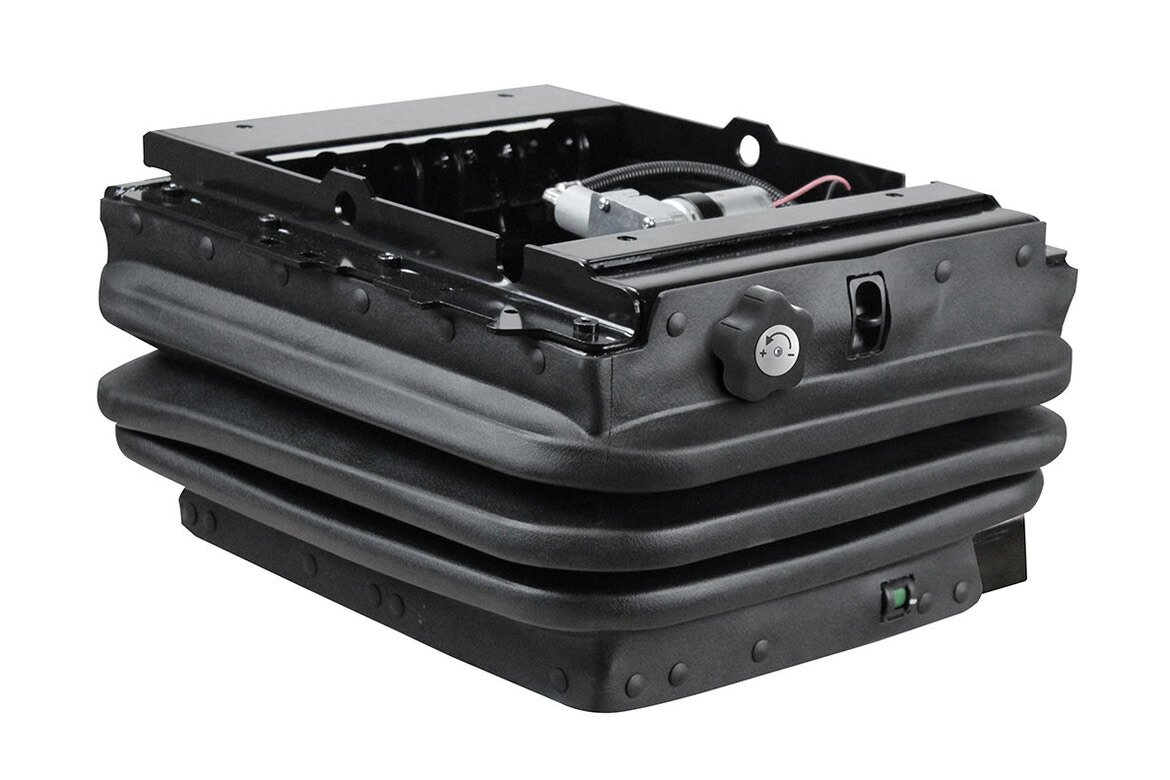

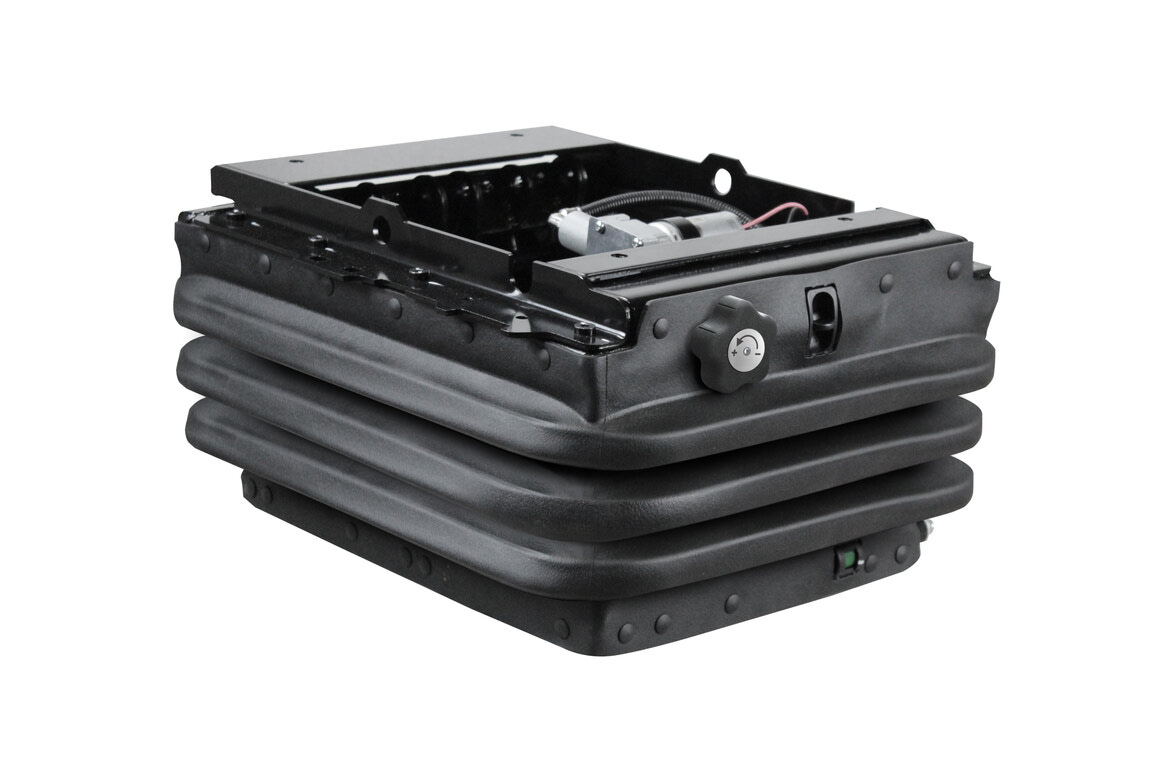

- Suspension Cover

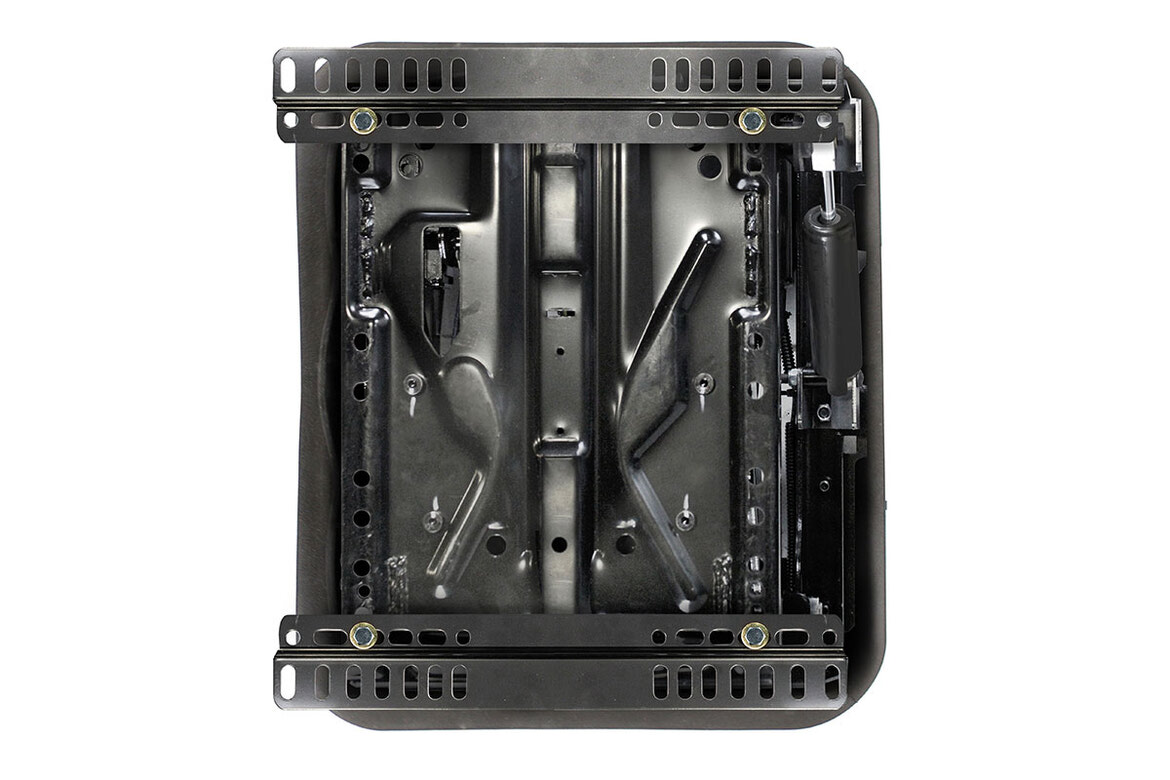

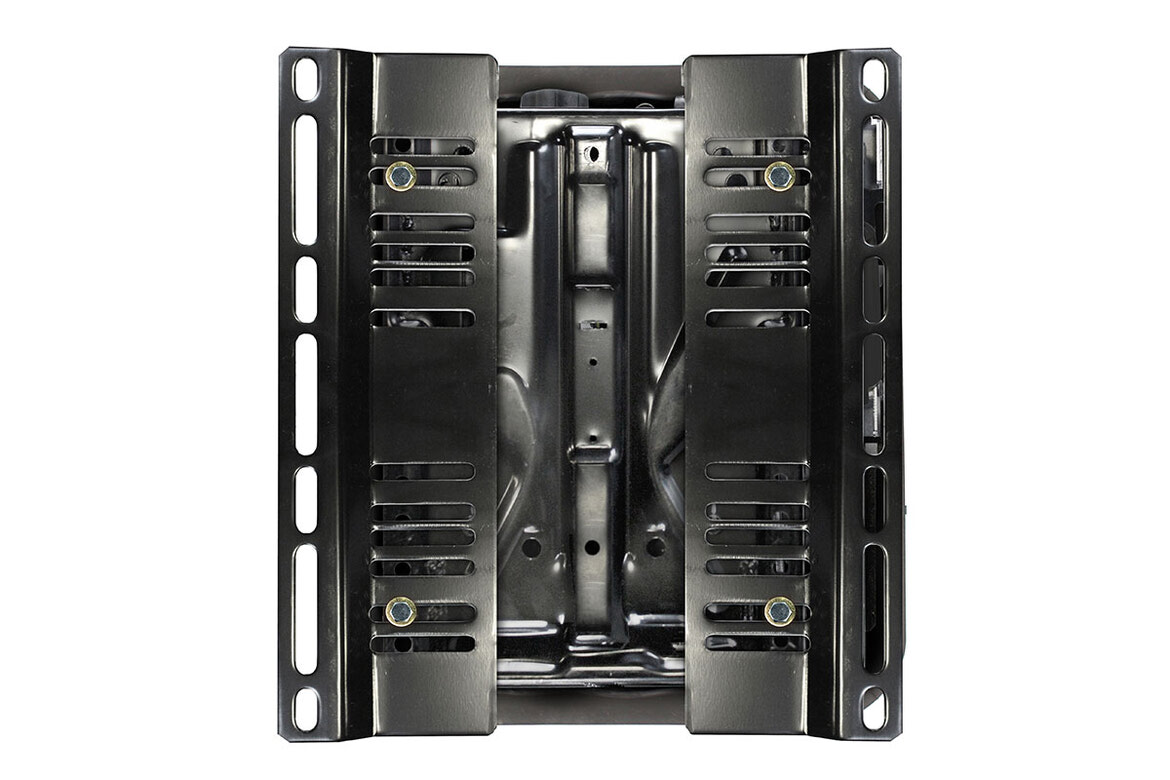

Bolt Pattern (Top of Suspension)
- Side to Side Top Mount 330mm (13”)
- Front to Back Top Mount 155mm (6”), 261mm (10”), 355mm (14”)
Bolt Pattern (Bottom of Suspension)
- Side to Side Bottom Mount 260mm (10.25”)
- Front to Back Bottom Mount 246mm (10”), 292mm (11.5”), 325mm (13”)
Industry Standards
- Operator Seat Vibration: ISO 7096
Suitable for Many Applications.
