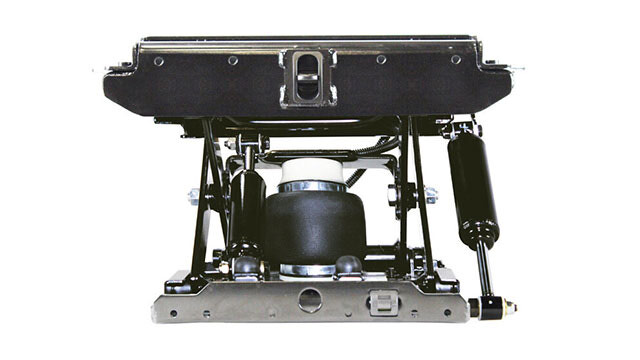

S076CHD 12V Air Suspension with Double Damper

Features

• Heavy Duty Air Ride Suspension

• 12 Volt Compressor Included
• Up to 190kg (418lbs) Manual Weight Adjustment
• 100mm (4”) Suspension Stroke
• Double Damper

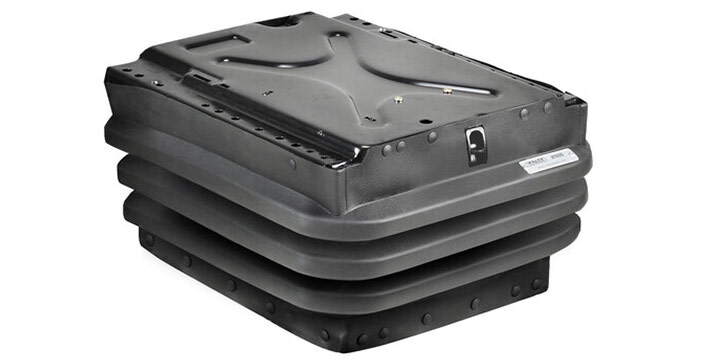

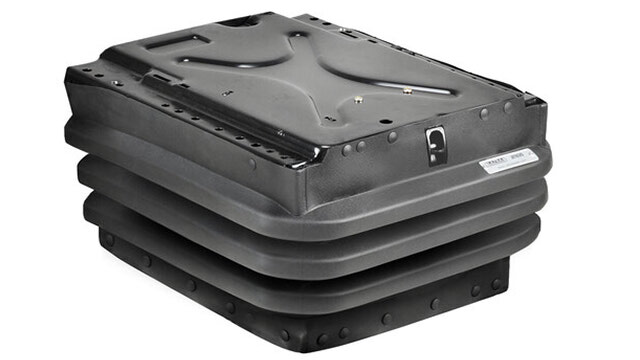

• Suspension Cover

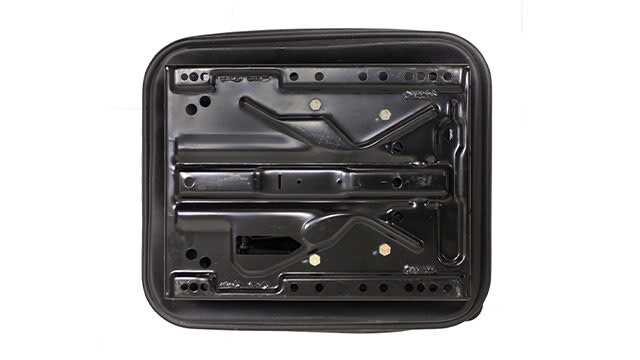

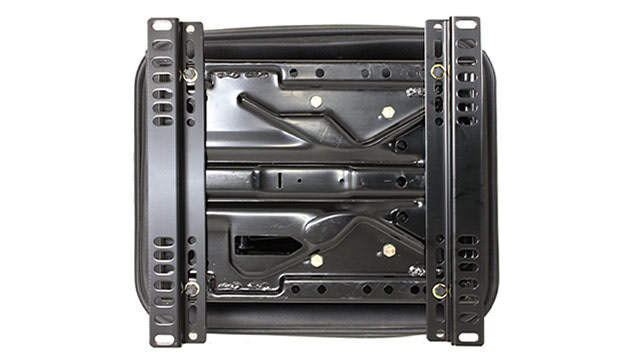

Bolt Pattern (Top of Suspension)

• Side to Side Top Mount 330mm (13”)

• Front to Back Top Mount 254mm (10”), 280mm (11”), 305mm (12”)

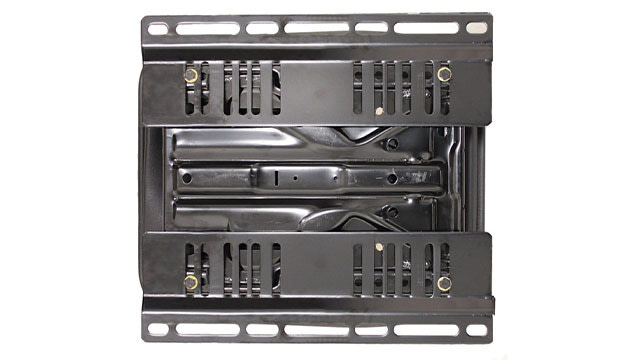

Bolt Pattern (Bottom of Suspension)

• Side to Side Bottom Mount 260mm (10.25”)

• Front to Back Bottom Mount 280mm
  (11”), 305mm (12”), 324mm (12.75”)

Suitable for Many Applications.
