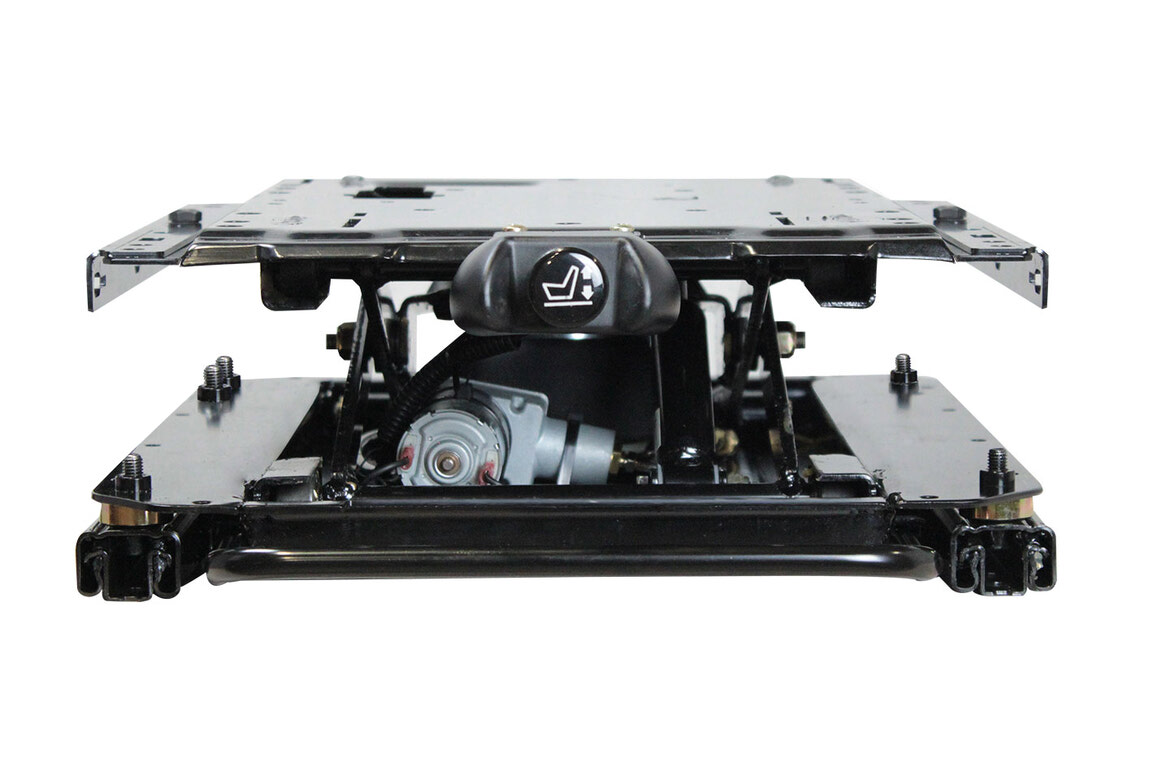

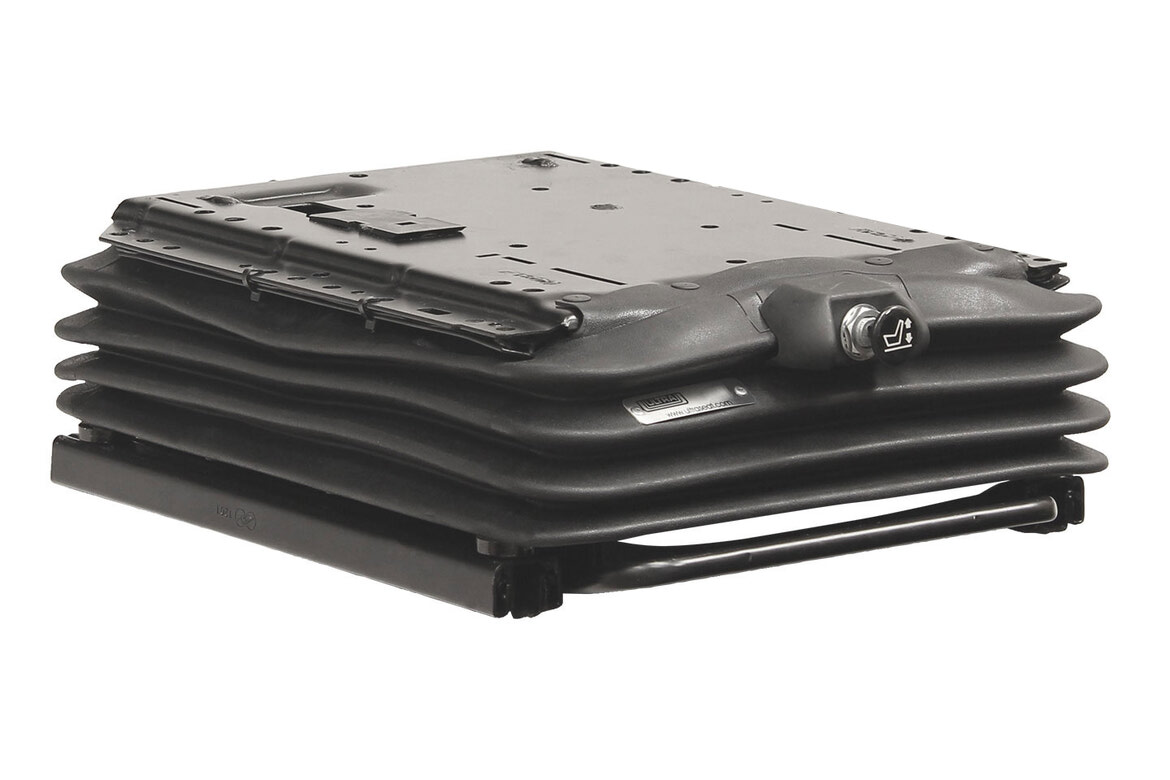

S025C 12V Low Profile Air Suspension includes Slide Rails
$690.67 USD
865405C12
Features
- Heavy Duty Low Profile Air Suspension
- 12 Volt Compressor Included
- Up to 150kg (330lbs) Manual Weight Adjustment
- 60mm (2.375”) Suspension Stroke
- Adjustable Lower Double Locking Slide Rails
- Single Damper
- Suspension Cover

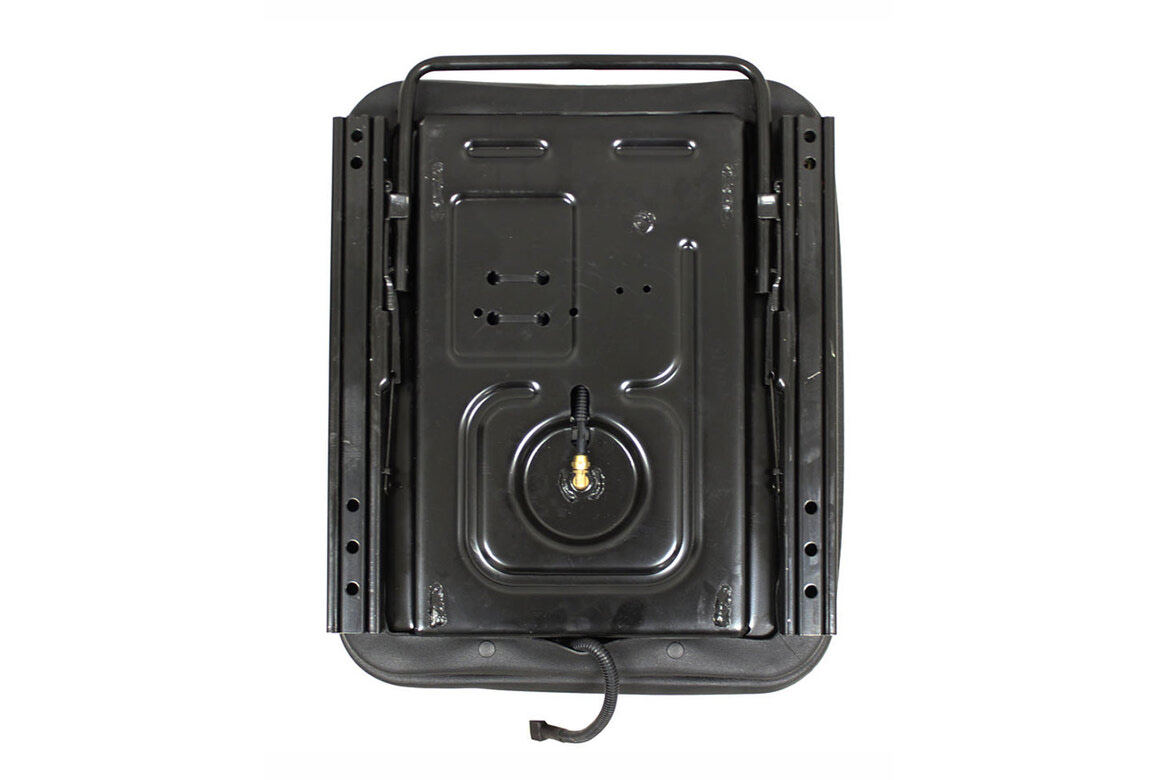

Bolt Pattern (Top of Suspension)
- Side to Side Top Mount 330mm (13”)
- Front to Back Top Mount (Various, See Pattern)

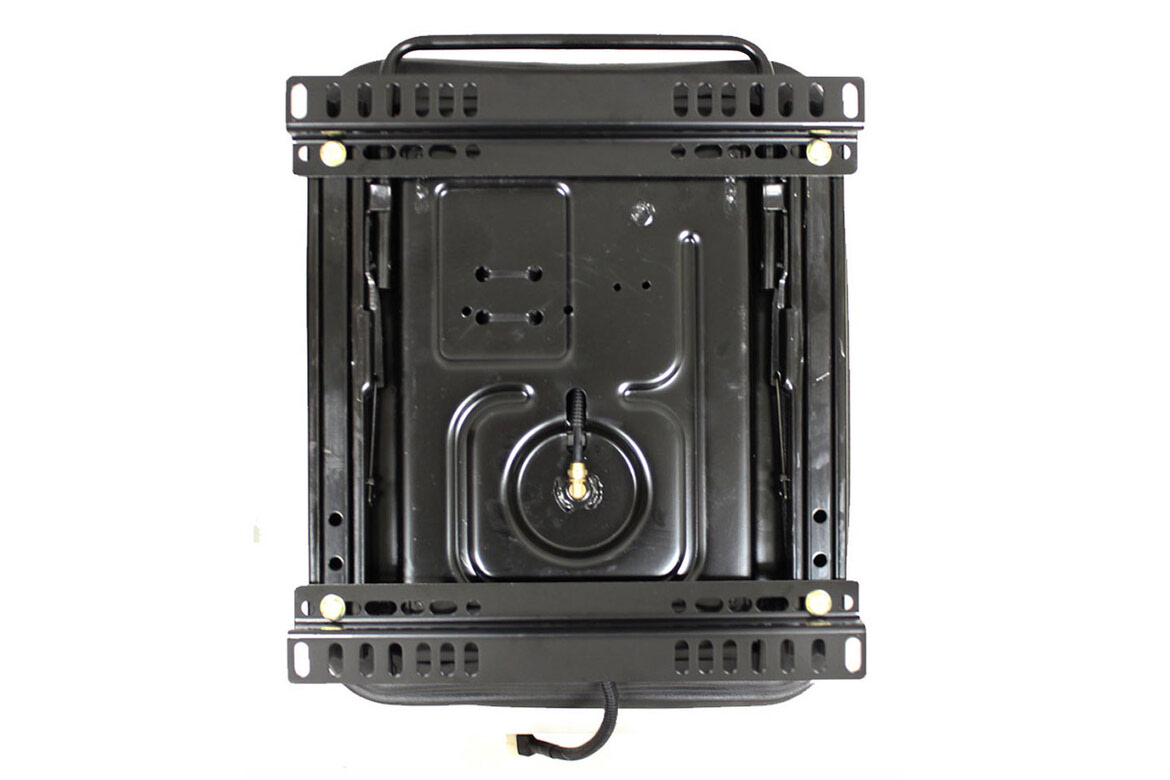

Bolt Pattern (Bottom of Suspension)
- Side to Side Bottom Mount 330mm (13”)
- 251/279/330mm (9.875/11/13”) Front to Back (See Bolt Pattern Download for Details)
Suitable for Many Applications.
