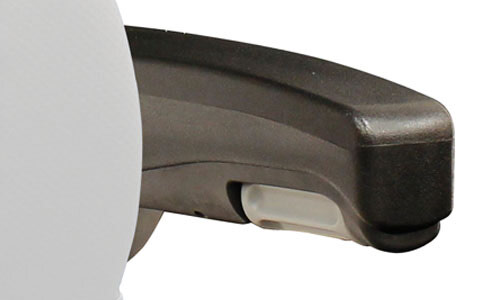

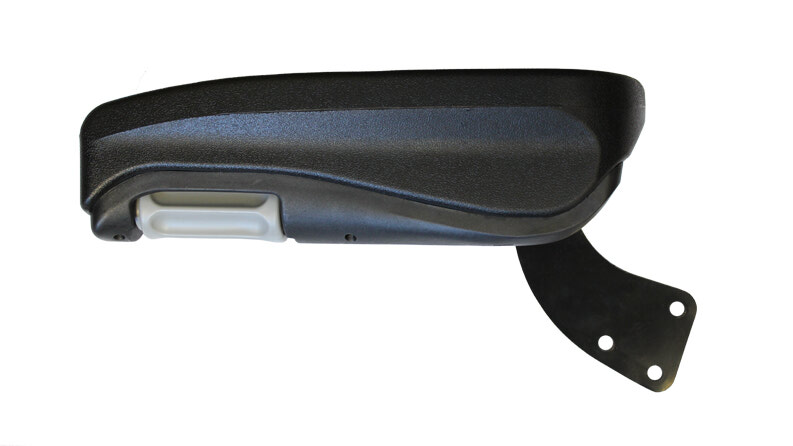

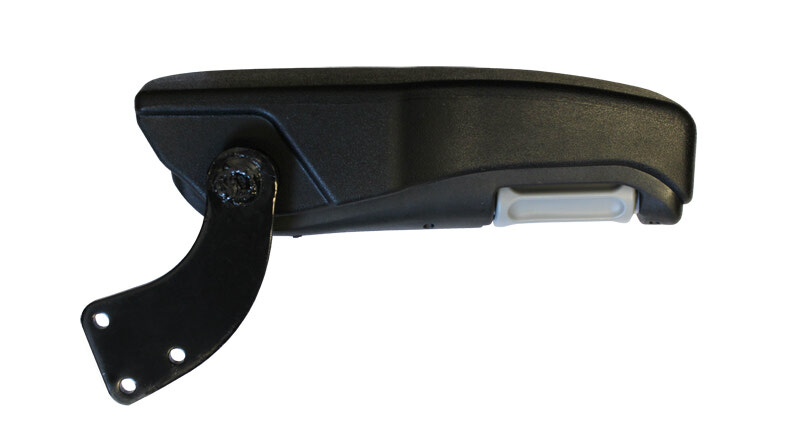

3.5 inch Standard Left Armrest

Features

• Designed to fit T Series Seats

• Heavy Duty Molded Vinyl / Cushioned Top Pad
• Angle Adjustable / Adjustment Dial

• Flip Up

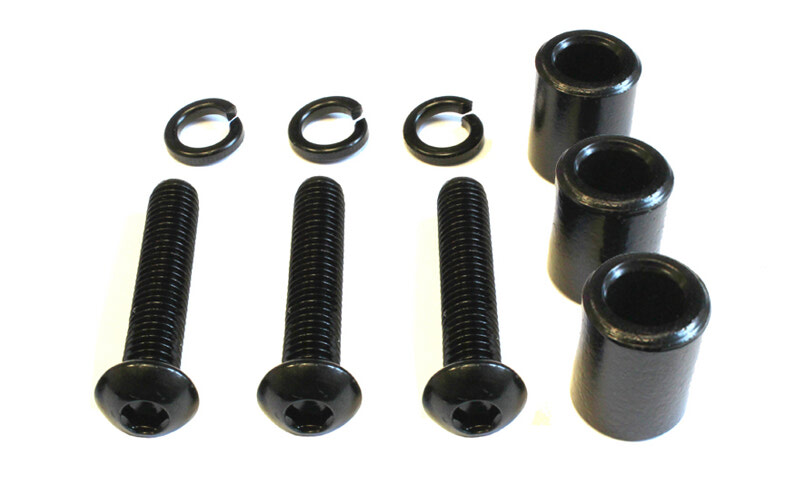

Bolt Kit

• Supplied with Each Arm (3 - 8mm x 40mm Button Head Bolts, 3 - 8mm Lock Washes, 3 - 20mm Long x 16mm Wide (OD) X 9mm (ID) Spacers)

Dimensions / Mounting Pattern

• 89mm (3.5”) Wide, 324mm (12.75”) Long (see Mounting Pattern Download)

Replacement For

• Ultra "K" & "T" Series, KAB Seats with Arms Mounted Directly to Side of Seat (Seat Frame), KAB 172336 Left Hand

Armrest Installation Guide

• See Installation Guide Download (Ultra Seats)

• See Installation Guide Download (KAB Seats)
