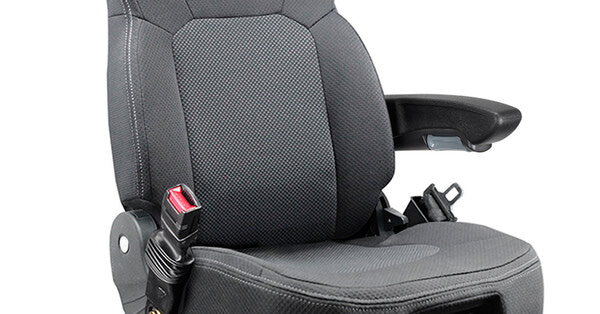

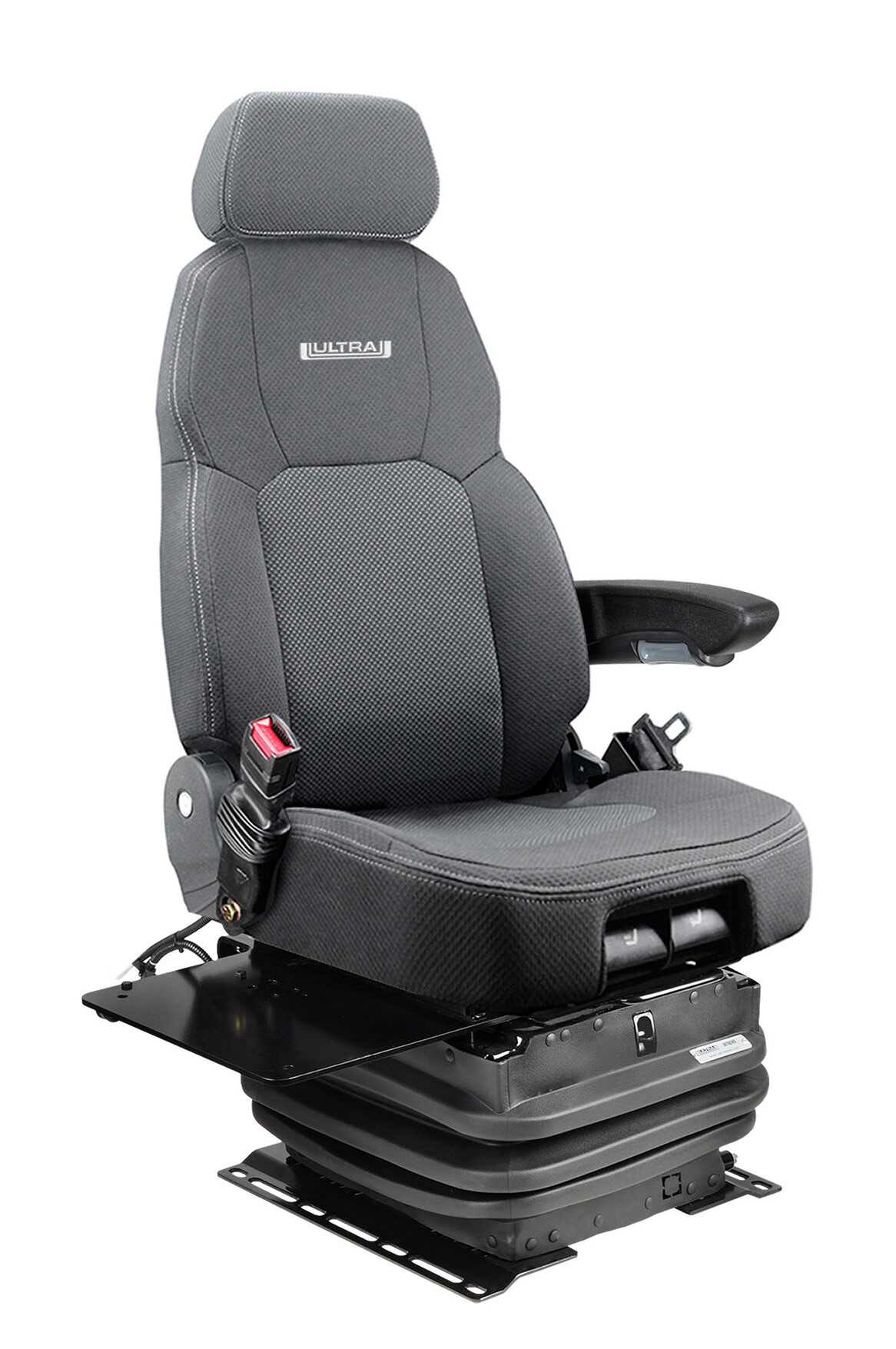

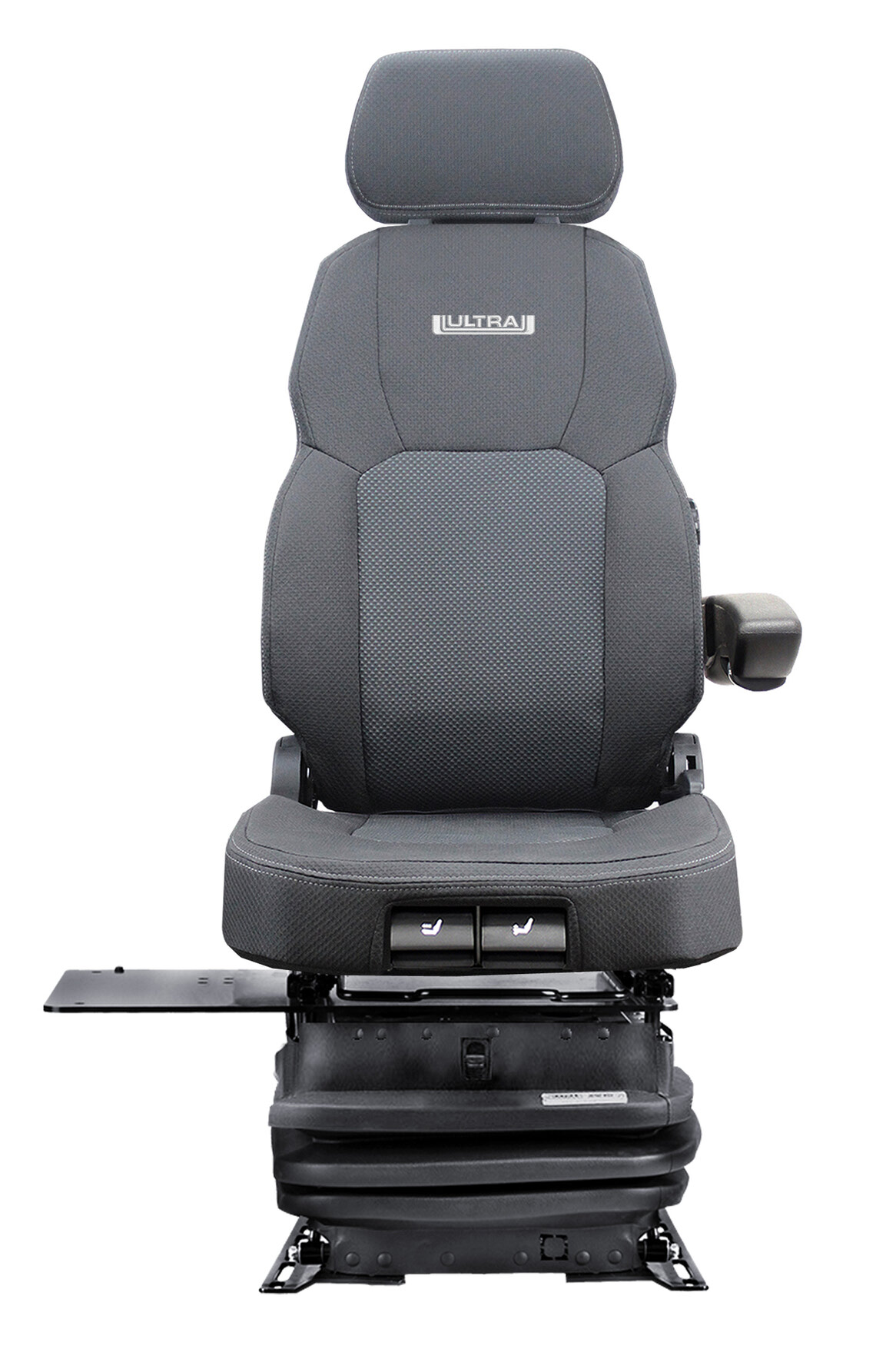

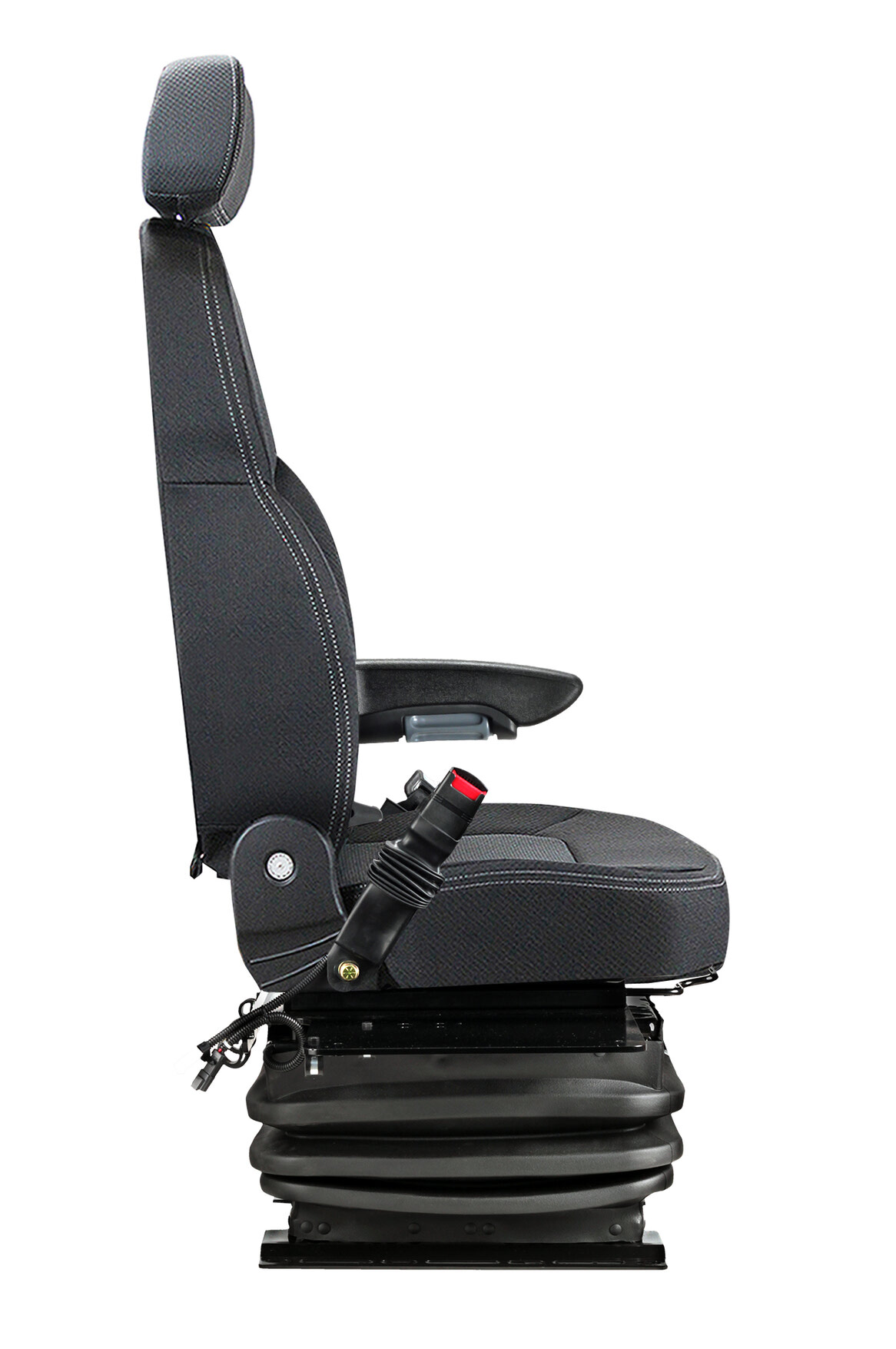

V878C KSU3 Komatsu Wheel Loader Air Suspension Seat with Double Dampers

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal


Features

  • High Adjustable Backrest
  • Adjustable Headrest
  • Left Hand Side Control for Recline Adjustment
  • Adjustable Mechanical Lumbar
  • Document Holder
  • 7° Seat Tilt Adjustment in 3 Positions
  • 50mm Seat Cushion Length Adjustment

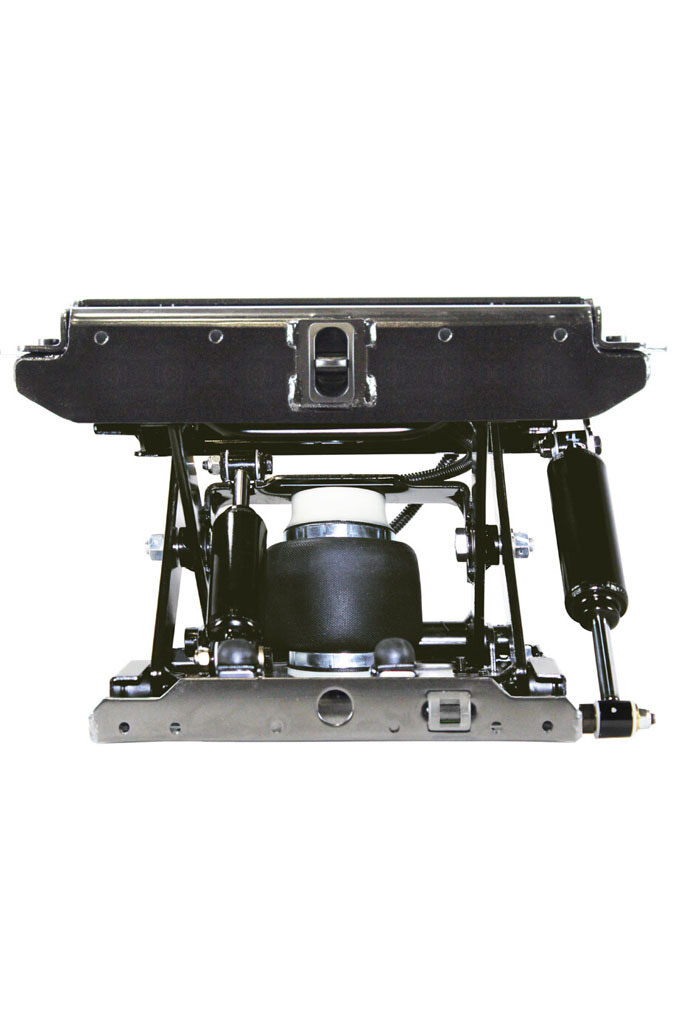

  • Heavy Duty 24 Volt Air Suspension
  • Double Dampers
  • Up to 190kg (418lbs) Manual Weight Adjustment
  • 100mm (4”) Suspension Stroke
  • Adjustable 2.5" Left Hand Armrest
  • Right Hand Console Mounting Bracket
  • Adjustable Upper Double Locking Slide Rails with 5mm  Reinforcement Bars
  • Universal Mounting Plates
  • 3” Retractable Seat Belt with Normally Open Safety Switch

Bolt Pattern

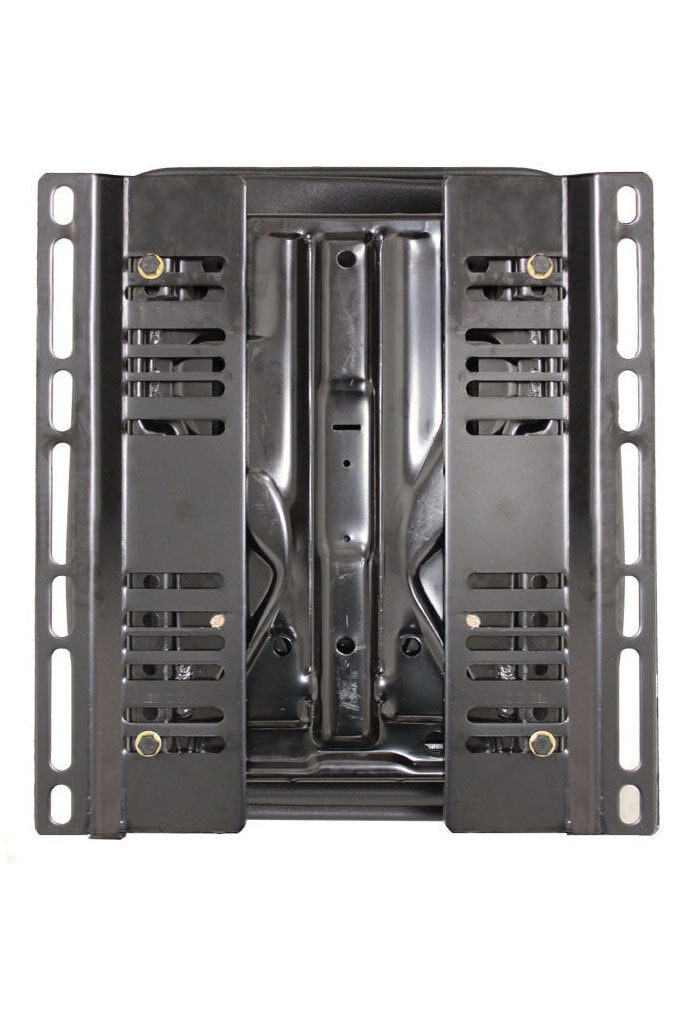

  • Mounting Plates (88059) Shipped With Seat

  • Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")

  • Front to Back - Various up to 406 mm (16")

Industry Standards

  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302
  • Seat Belt Anchor: ISO 6683

Replacement For

  • Komatsu Seat Group Numbers: 421-57-61131, 421-57-61141, 421-S33-6131, 421-S33-6141
