Weight: 109lb (49.54kg)

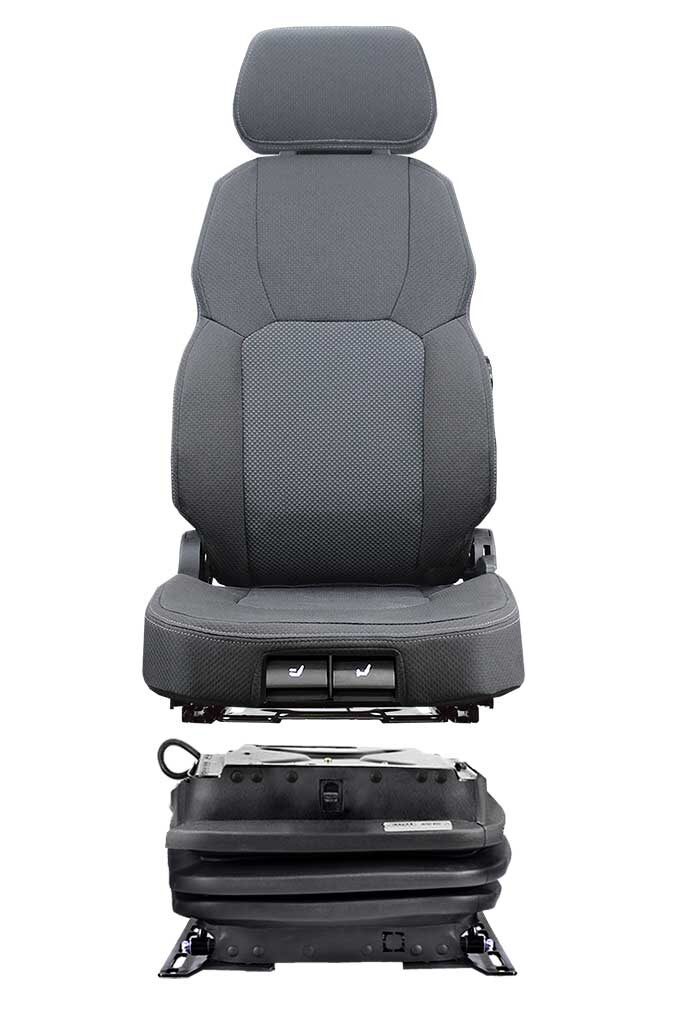

Front View

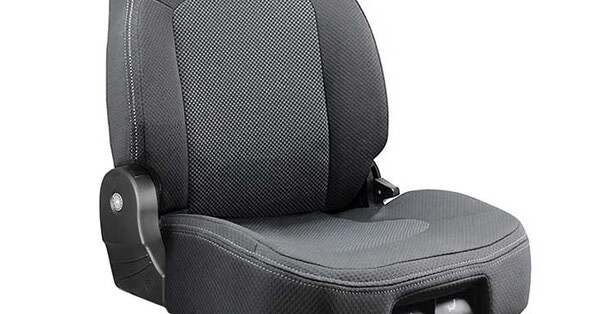

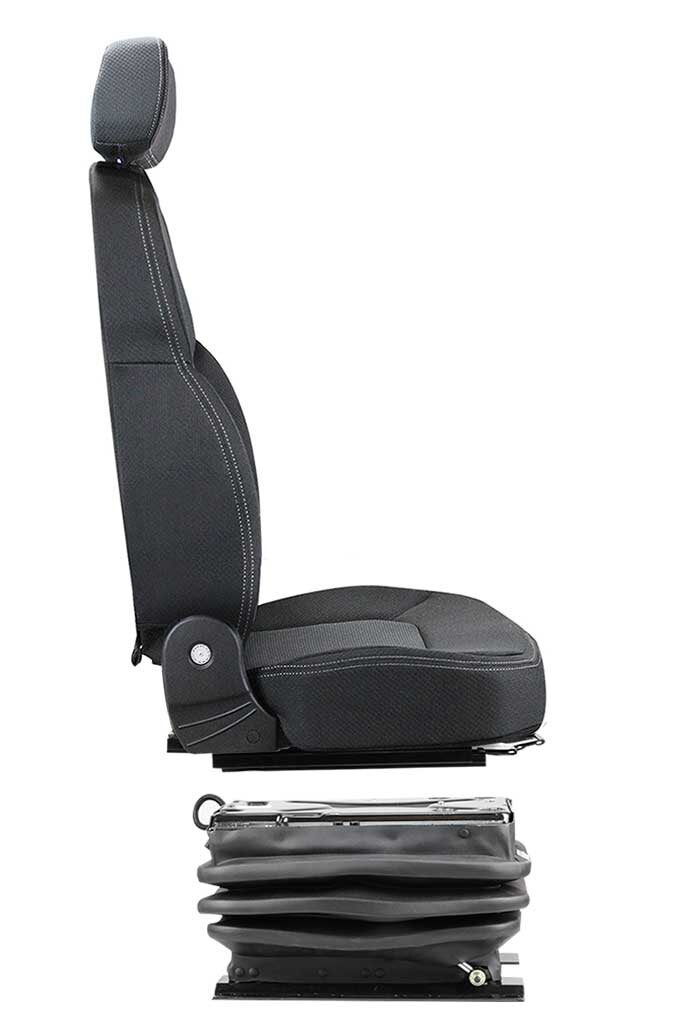

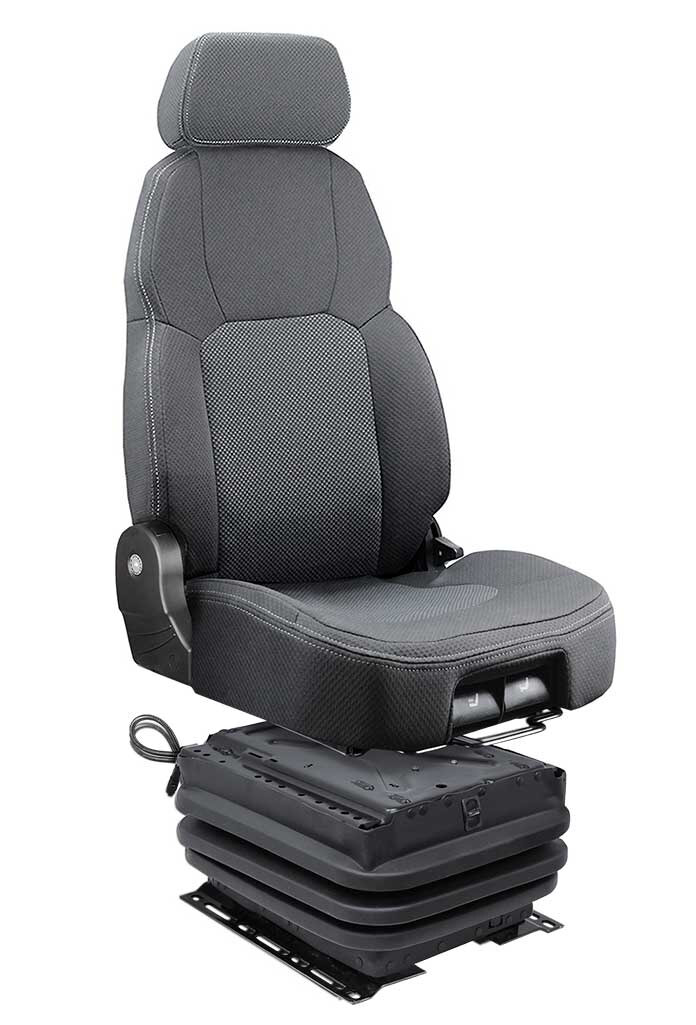

V878C KSU Komatsu Wheel Loader Air Suspension Seat with Double Dampers

SELECT YOUR SEAT

		$2,041.33 USD V878C KSU GRM Black/Grey Cloth 24 Volt Air Suspension Seat 585395C24 Air Suspension Komatsu Seat

		None of the above This field is optional...

SELECT YOUR SEAT BELT

		$160.00 USD 2 inch Retractable Seat Belt 81065 Suited For Most Seat Models.

		$210.67 USD 3 inch Retractable Seat Belt 81067 Suited For Most Seat Models.

		None of the above This field is optional...

Let us Help! What are you installing this seat in?

$0 Base Price

+ $NaN SELECT YOUR SEAT

+ $NaN SELECT YOUR SEAT BELT

+ $NaN Let us Help! What are you installing this seat in?

+ $0 Price Modifiers

+ $0 Subtotal

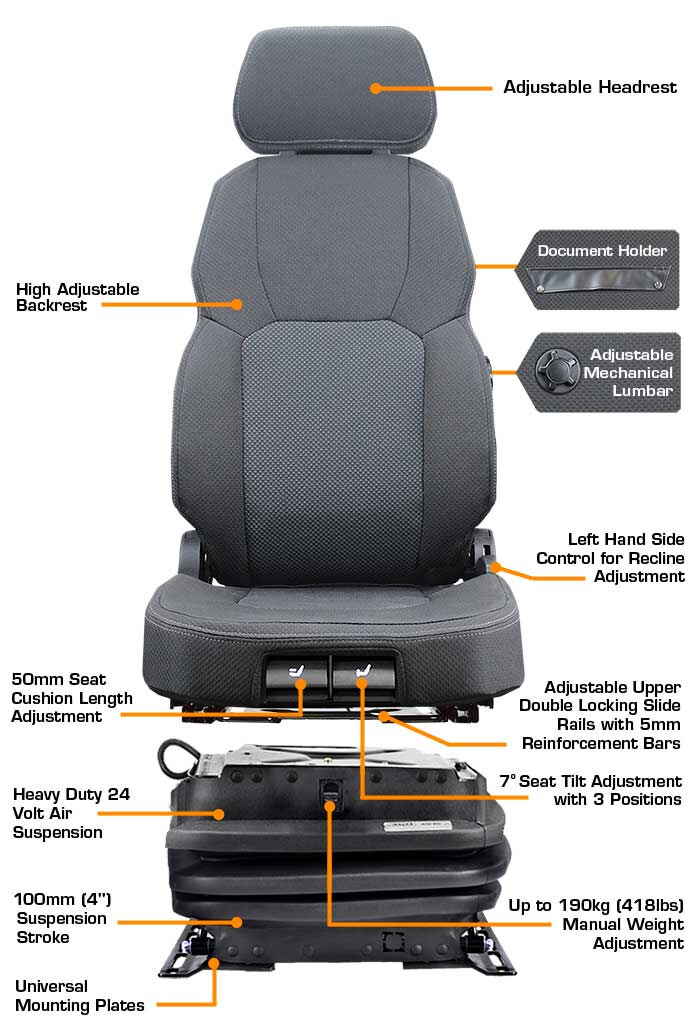

Features

High Adjustable Backrest
Left Hand Side Control for Recline Adjustment
Adjustable Mechanical Lumbar
Adjustable Headrest
Document Holder
7° Seat Tilt Adjustment in 3 Positions
50mm Seat Cushion Length Adjustment
Heavy Duty 24 Volt Air Suspension
Double Dampers
Up to 190kg (418lbs) Manual Weight Adjustment
100mm (4”) Suspension Stroke
Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars
Universal Mounting Plates

Bolt Pattern

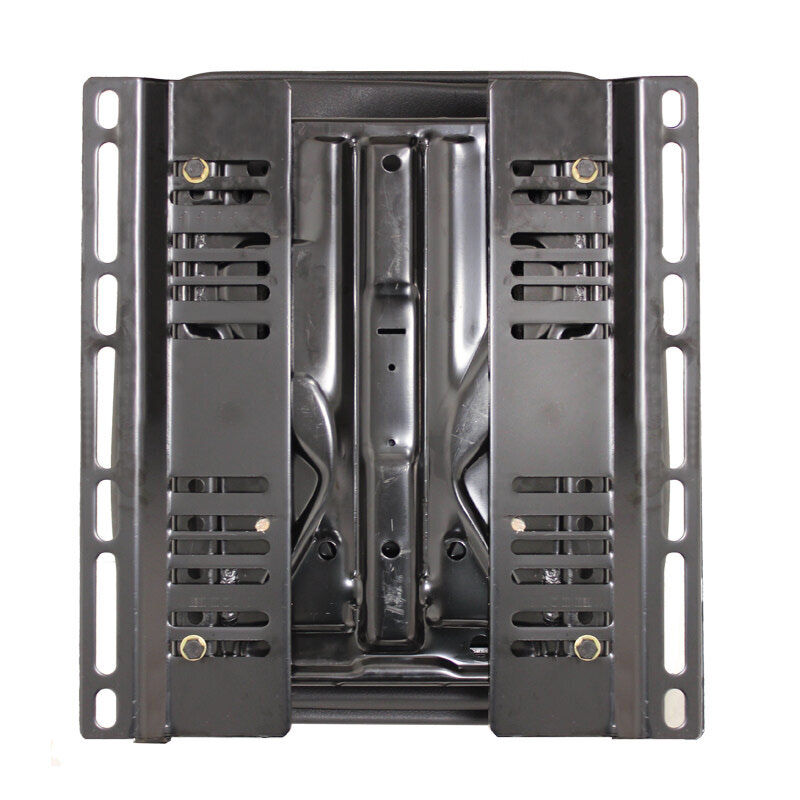

Mounting Plates (88059) Shipped With Seat
Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")
Front to Back - Various up to 406mm (16")

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302
Seat Belt Anchor: ISO 6683

Replacement For

Komatsu Part Number, 425-S33-3510, 425-S33-3511, 425-S33-3512, 425-S33-3513, 425-S33-5511, 426-57-21413, 426-57-21412, 426-57-51430, 428-S33-2823
Komatsu Wheel Loaders, WA430-6, WA470-6, WA470-6A, WA480-6, WA500-6, WA500-6R
570395C24
