Weight: 129lb (58kg)

Features View

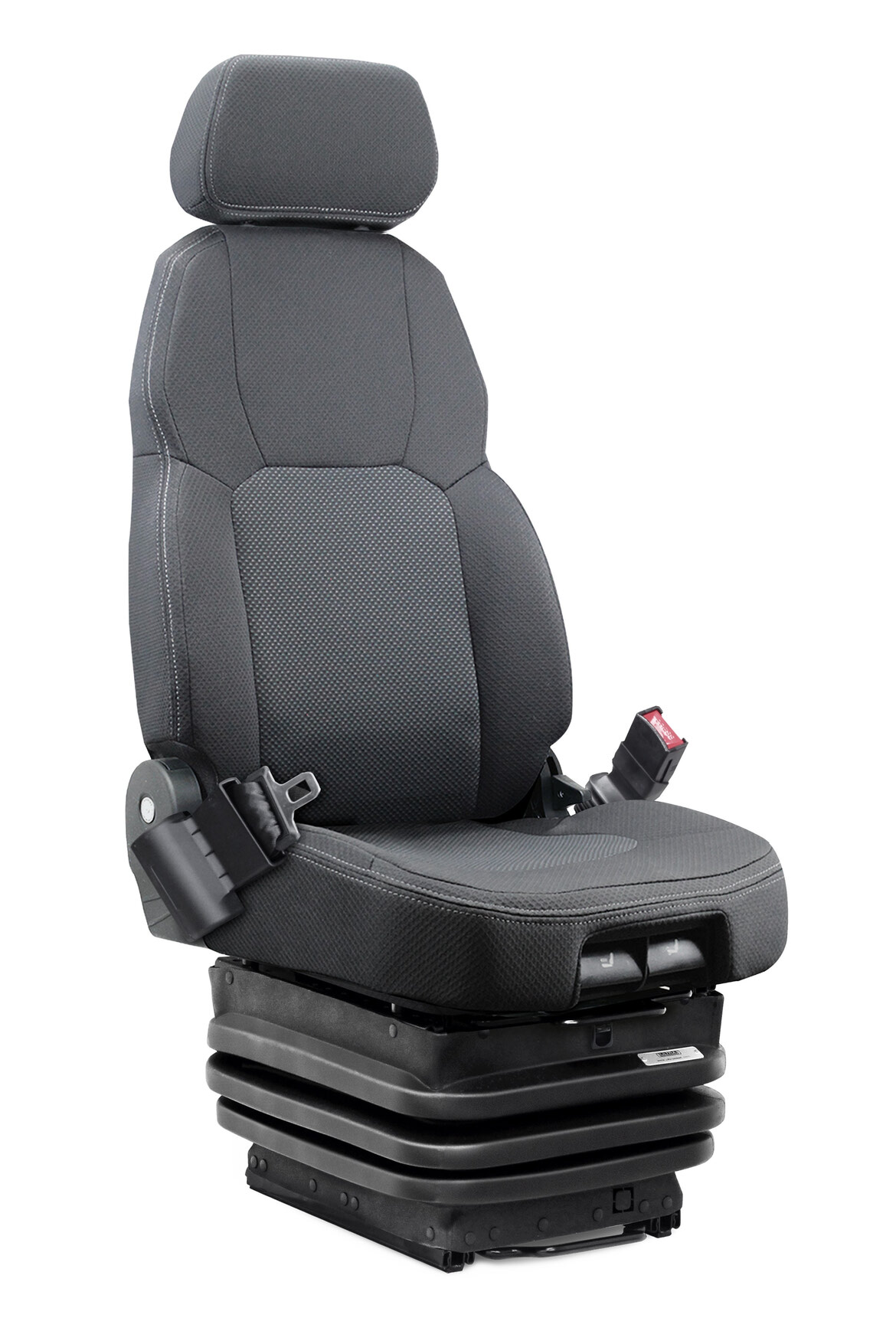

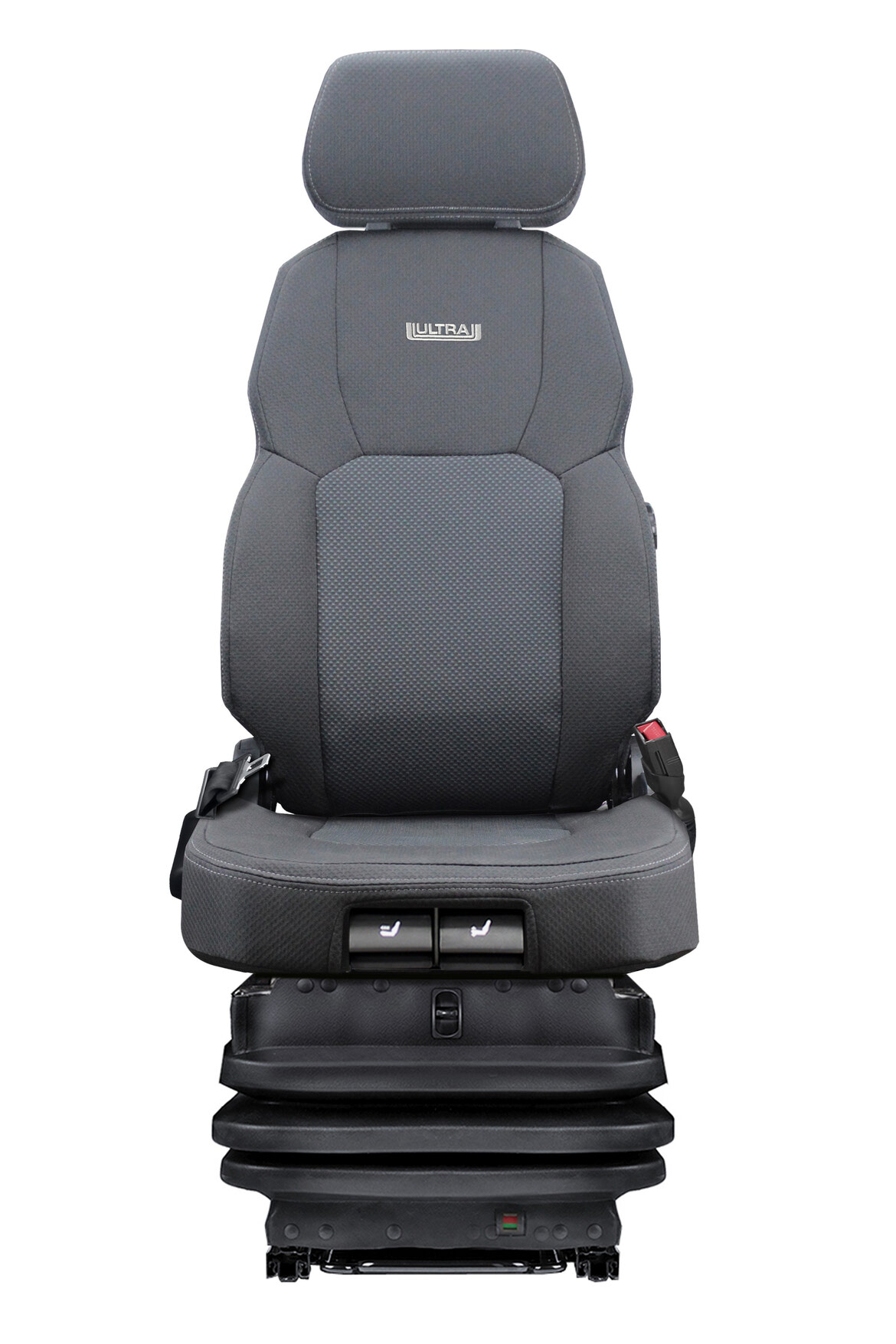

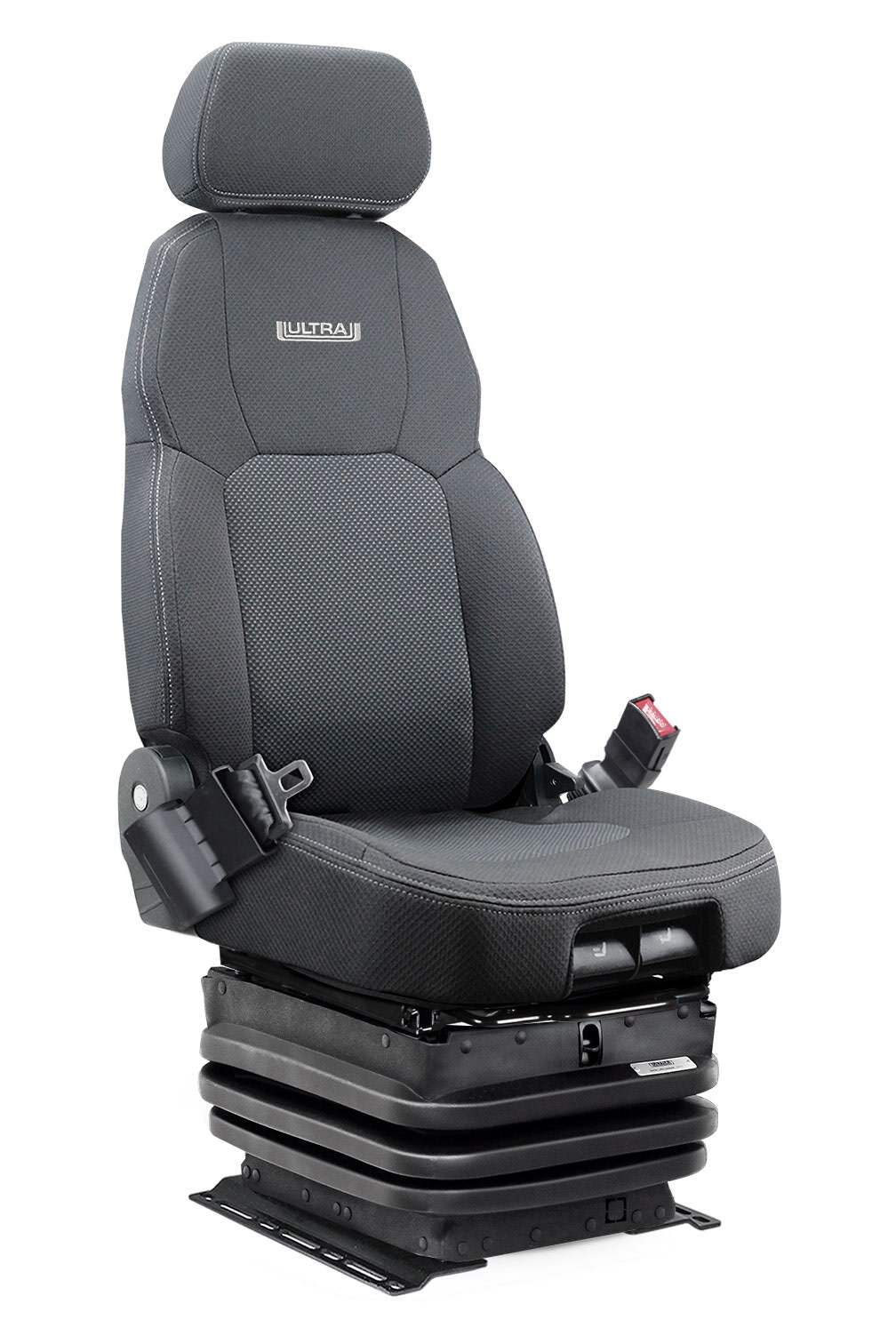

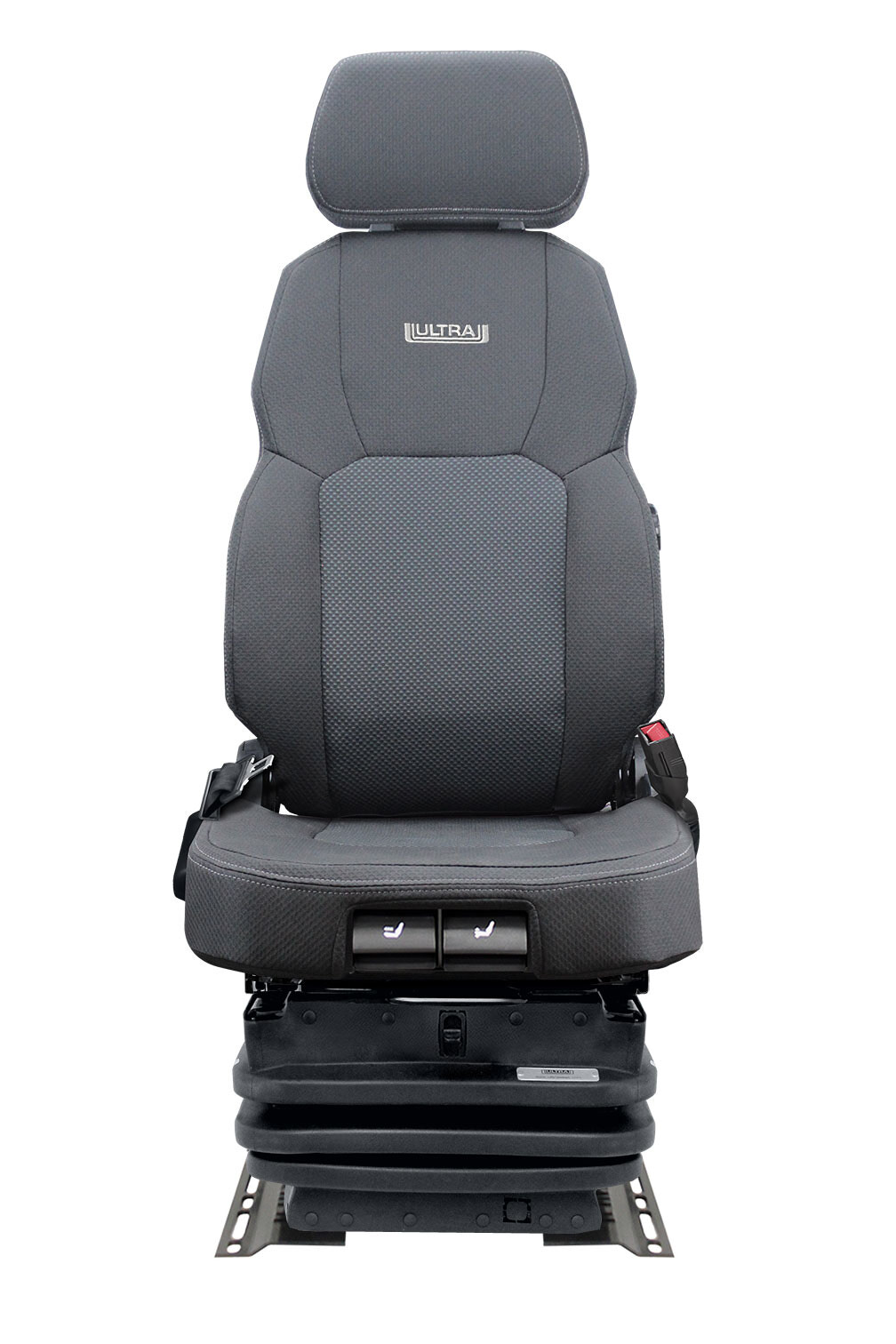

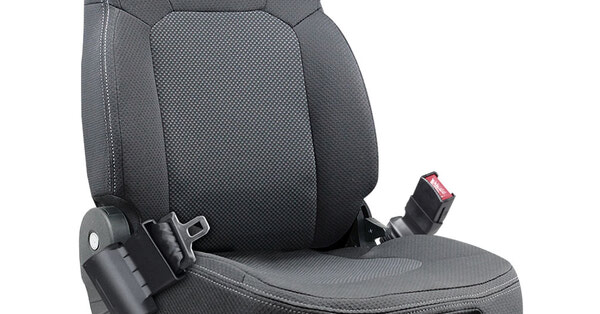

V878 VRT Volvo Rock Truck Direct Air Suspension Seat w/Seat Switch & Double Dampers

SELECT YOUR SEAT

		$1,922.67 USD V878 VRT Black/Grey Cloth Direct Air Suspension Seat 58597VRT Lower Double Locking Slide Rails Direct Air Suspension Seat.

		None of the above This field is optional...

SELECT YOUR LEFT ARMREST

		$68.00 USD 2.5 inch Standard Left J & V Series Armrest 57034L Suited For J & V Series Seat Models.

		None of the above This field is optional...

SELECT YOUR RIGHT ARMREST

		$68.00 USD 2.5 inch Standard Right J & V Series Armrest 57034R Suited For J Series Seat Models.

		None of the above This field is optional...

SELECT YOUR ALTERNATE MOUNTING BRACKETS

		$114.67 USD Universal Mounting Plates - (Pair) 880-59 88059 Suited for most applications that require a wide side to side mounting pattern. Increase side to side pattern by a minimum of 3.5in to a maximum of 8in (per mounting bar / each side). Front to back mounting pattern is various to a maximum 406mm (16in).

		None of the above This field is optional...

Let us help! What are you installing this seat in?

$0 Base Price

+ $NaN SELECT YOUR SEAT

+ $NaN SELECT YOUR LEFT ARMREST

+ $NaN SELECT YOUR RIGHT ARMREST

+ $NaN SELECT YOUR ALTERNATE MOUNTING BRACKETS

+ $NaN Let us help! What are you installing this seat in?

+ $0 Price Modifiers

+ $0 Subtotal

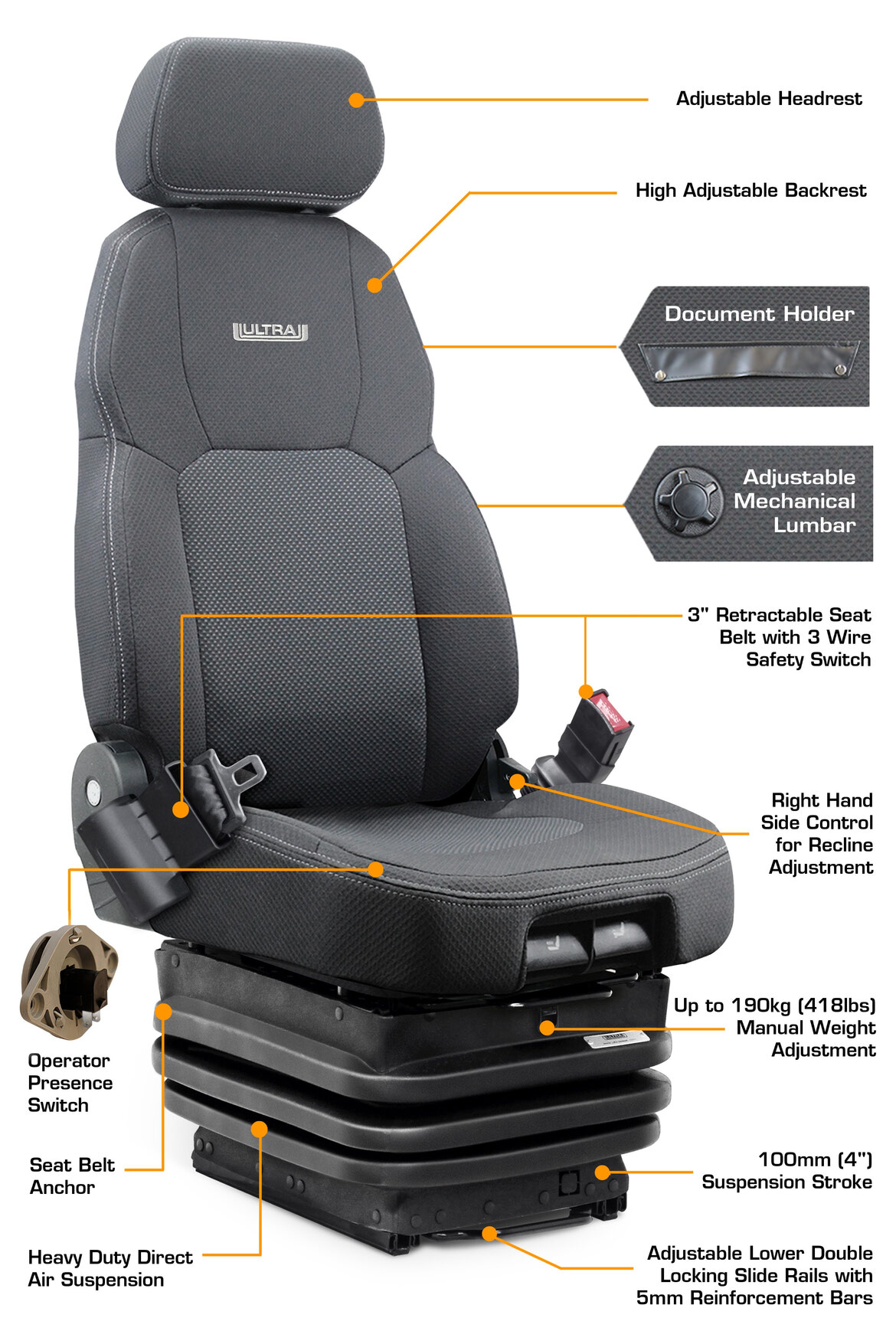

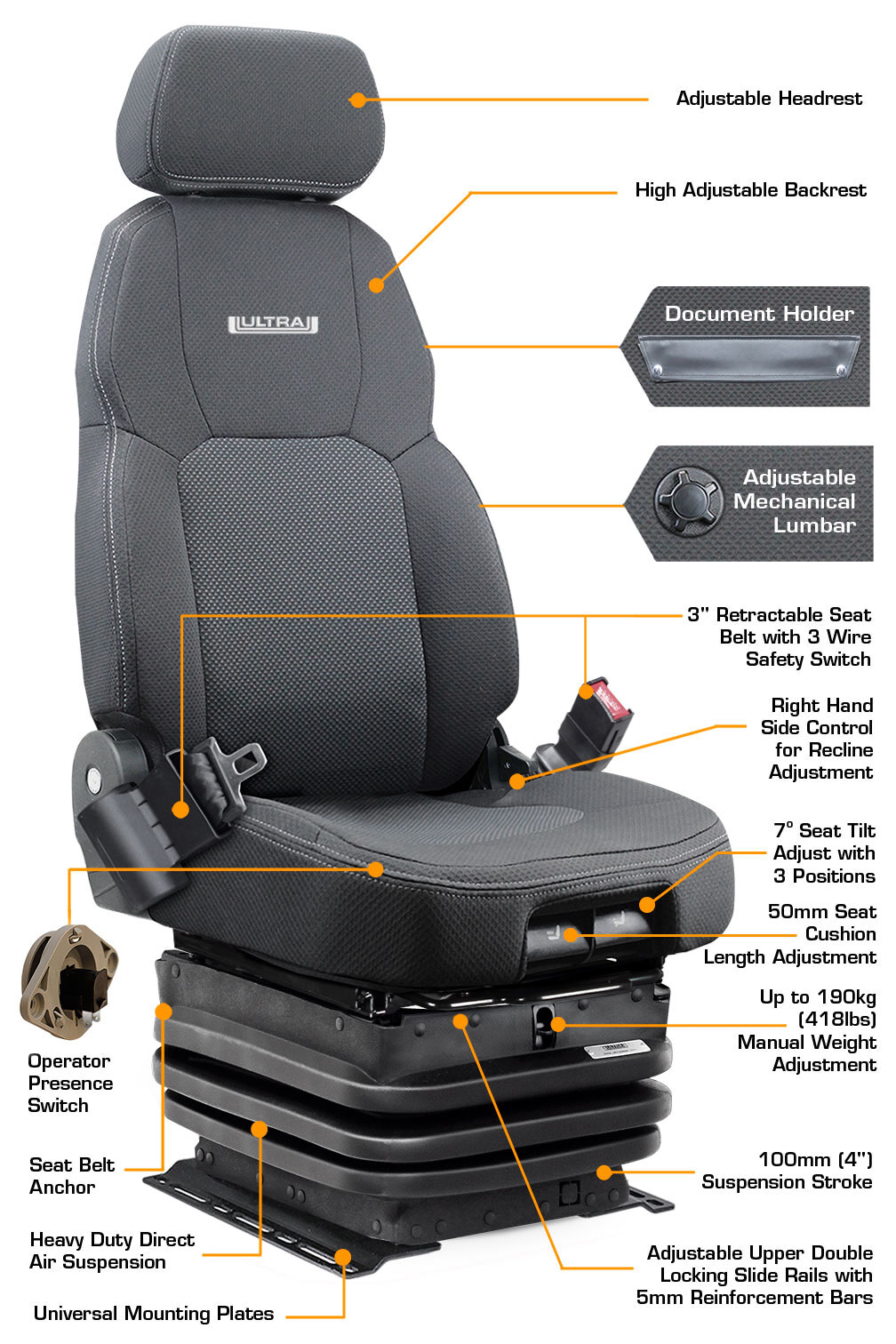

Features

High Adjustable Backrest
Adjustable Headrest
Left-hand side Control for Recline Adjustment
Adjustable Mechanical Lumbar
Document Holder
7° Seat Tilt Adjustment in 3 Positions
50mm Seat Cushion Length Adjustment

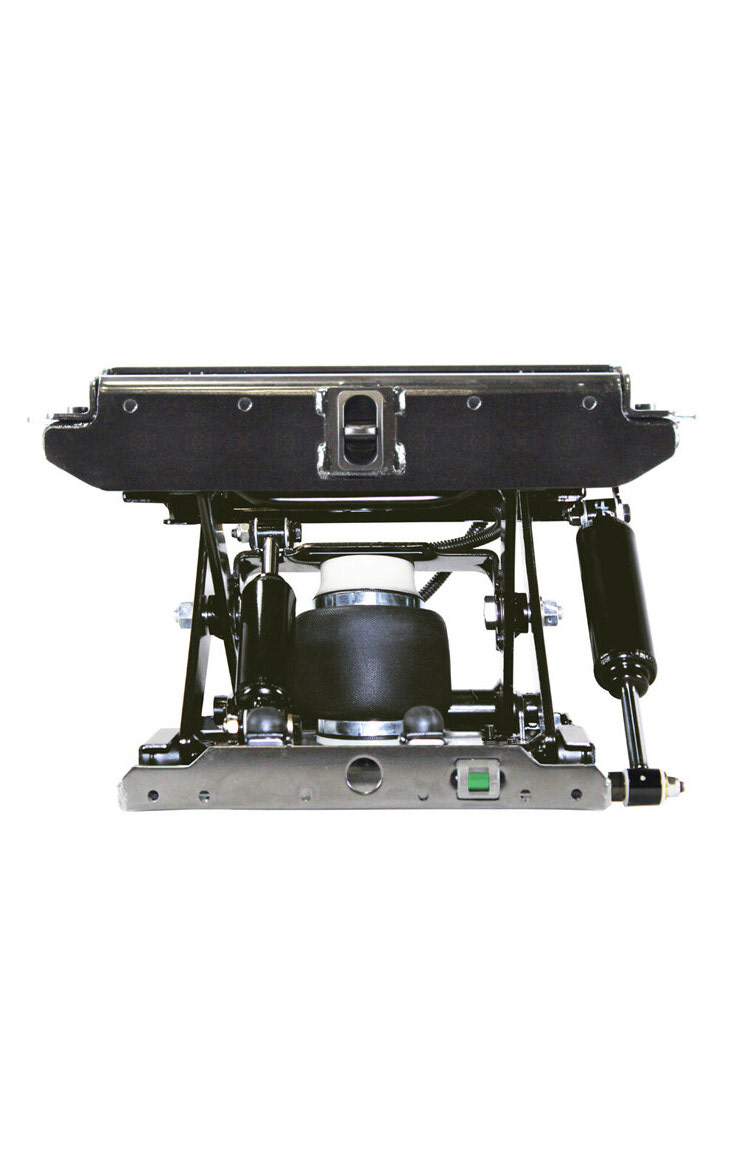

Heavy Duty Direct Air Suspension

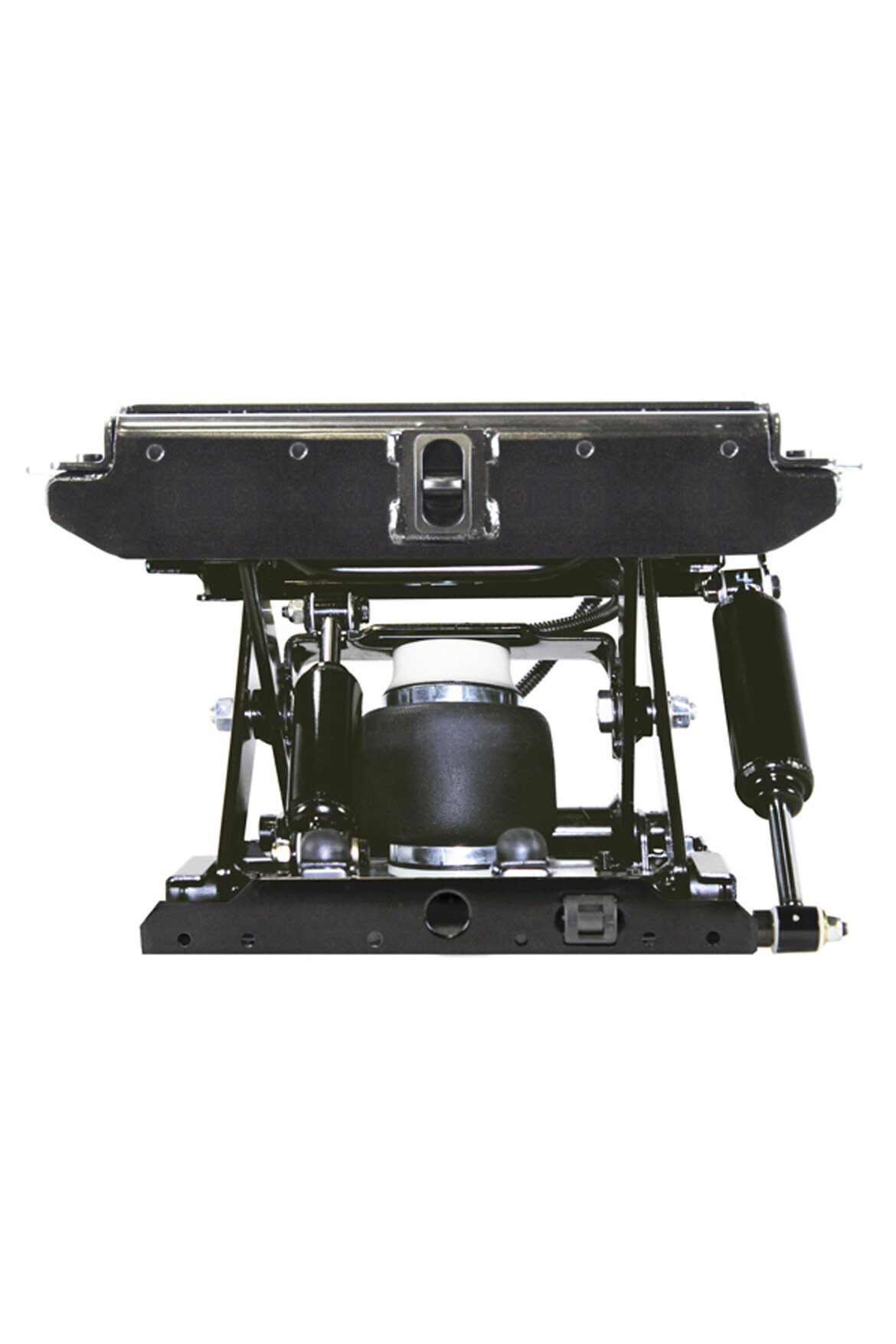

Double Dampers
Up to 190kg (418lbs) Manual Weight Adjustment
100mm (4") Suspension Stroke

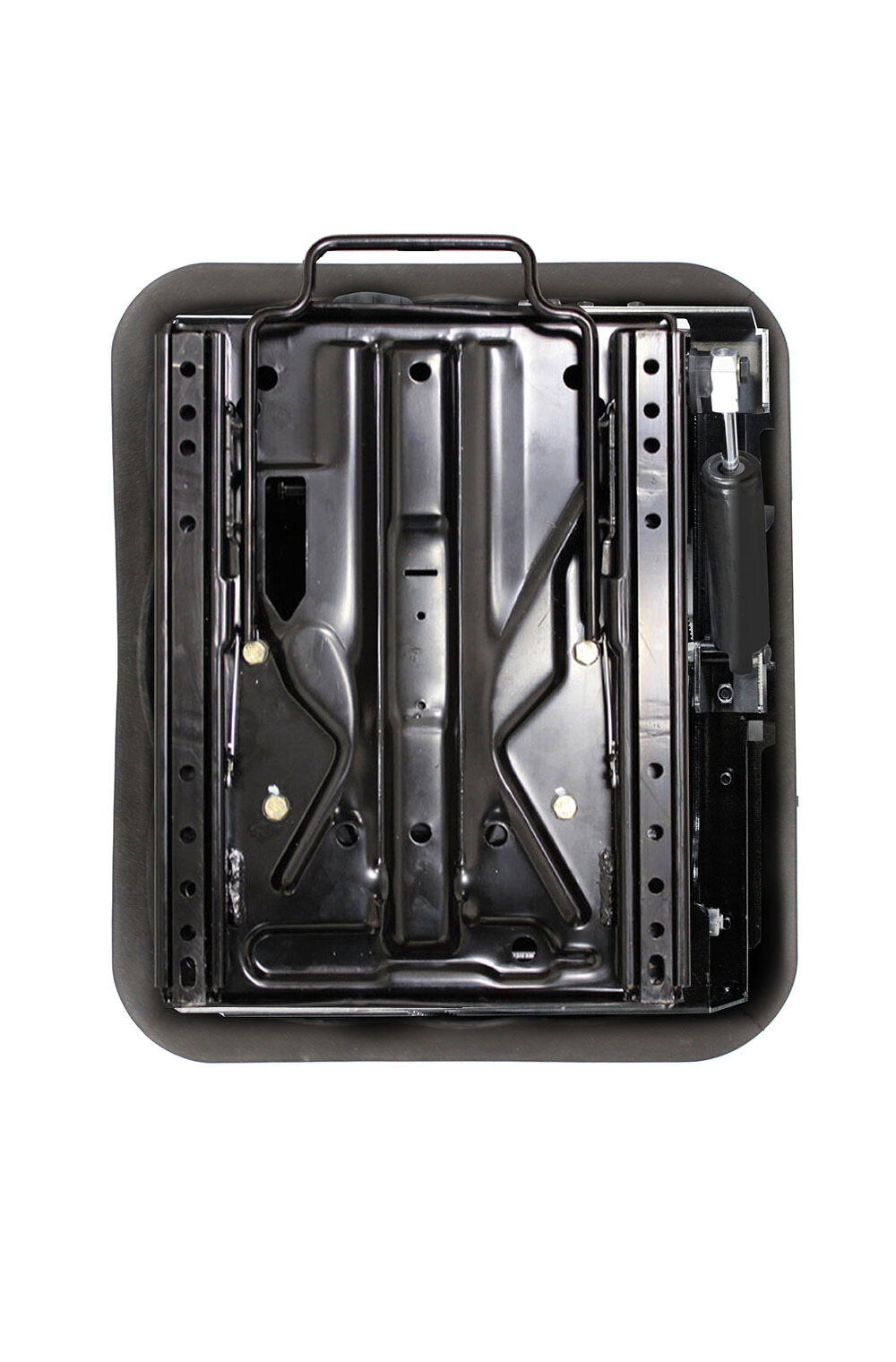

Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars
Operator Presence Switch
Seat Belt Anchor
3” Retractable Seat Belt with 3 Wire Safety Switch

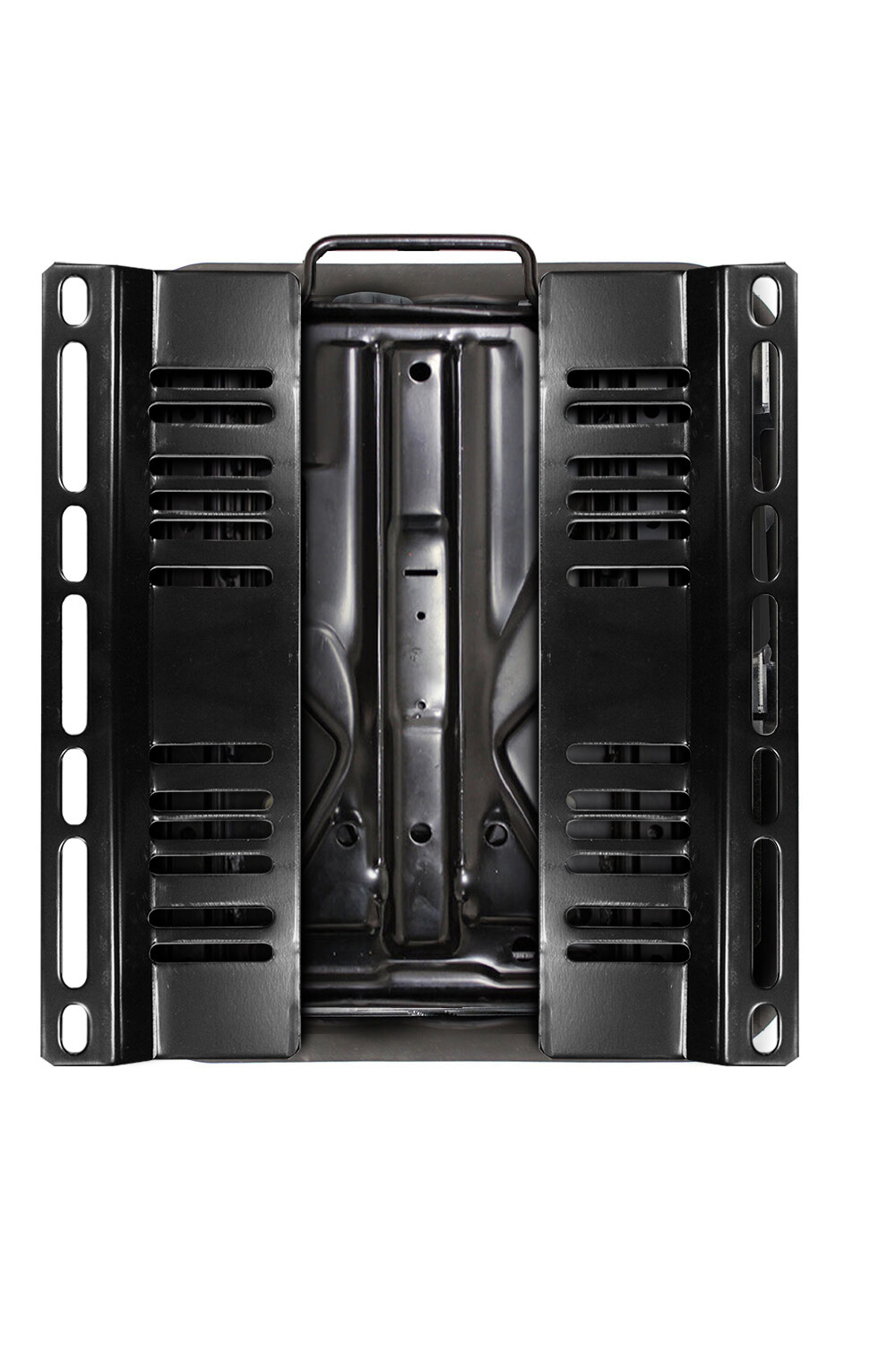

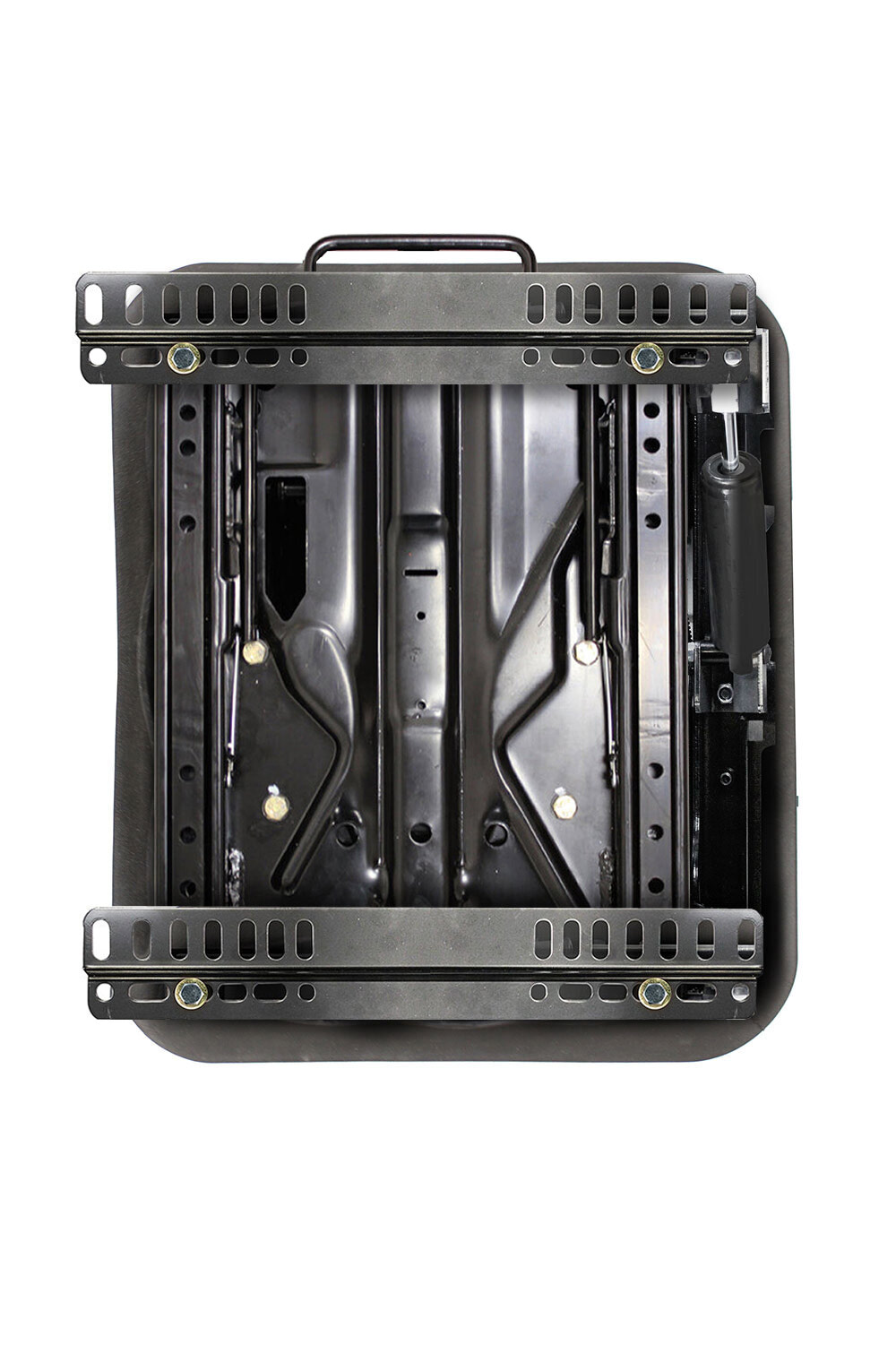

Universal Mounting Plates

Bolt Pattern

Mounting Plates (88059) Shipped With Seat
Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")
Front to Back - Various up to 406 mm (16")

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302
Seat Belt Anchor: ISO 6683

Replacement For

Volvo Rock Truck, Volvo Articulated Dump, Air Suspension Seat With Seat Presence Switch, and Seat Belt Safety Switch
57197VRT, T876 VRT
Volvo Part Number: 15131536, 15162125, 17457529, 16312466
