V876C CAT5 Caterpillar D, D2 & F Series Excavators Air Suspension Seat ll

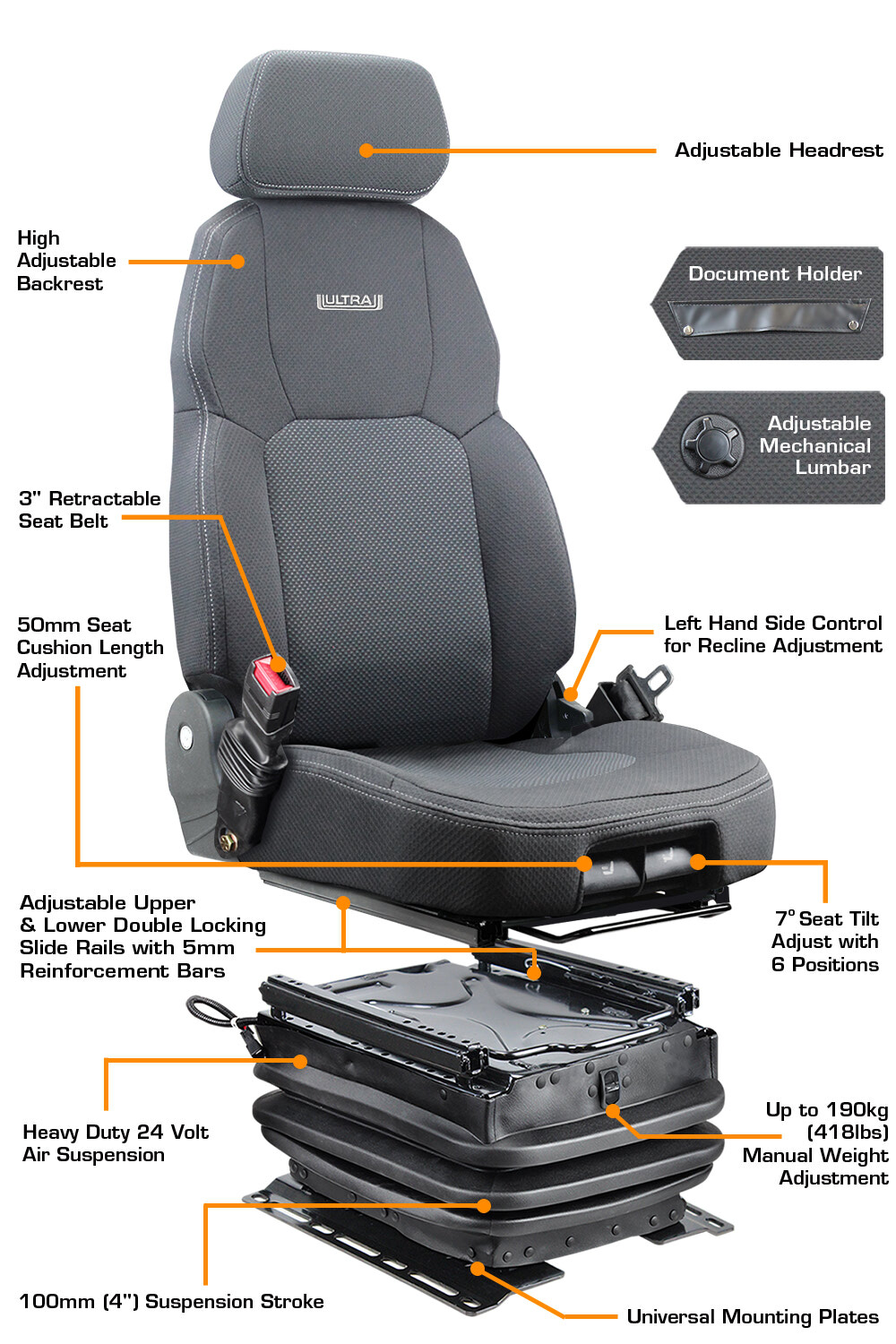

Features

• High Adjustable Backrest

• Left-Hand Side Control for Recline Adjustment

• Adjustable Mechanical Lumbar

• Adjustable Headrest
• Document Holder

• 3" Retractable Seat Belt
• 7° Seat Tilt Adjustment in 3 Positions

• 50mm Seat Cushion Length Adjustment

• Heavy Duty 24 Volt Air Suspension

• Up to 190kg (418lbs) Manual Weight Adjustment
• 100mm (4”) Suspension Stroke

• Adjustable Upper and Lower Double Locking Slide Rails with 5mm  Reinforcement Bars

• Universal Mounting Plates

Bolt Pattern

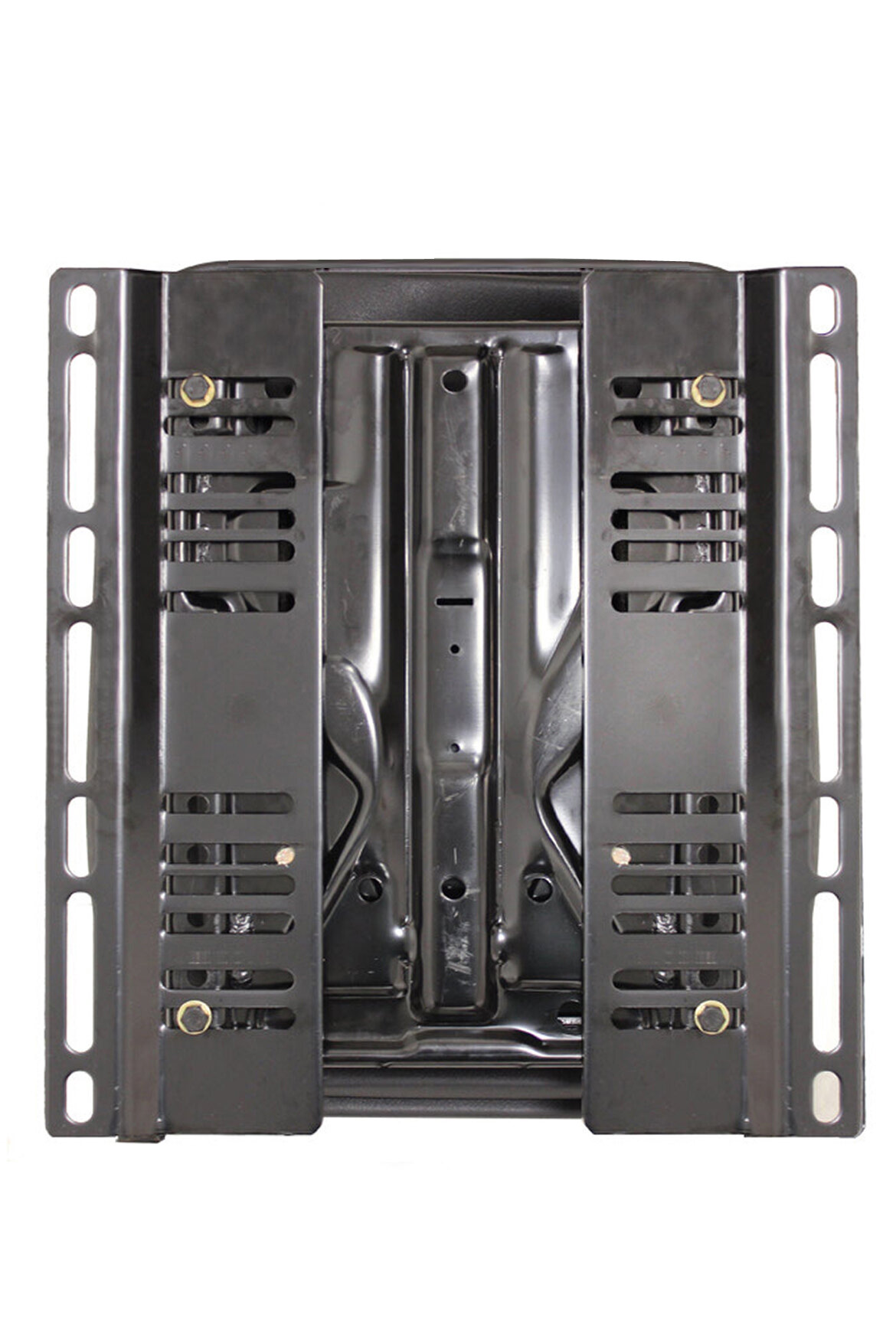

• Mounting Plates (88059) Shipped With Seat
• Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")

• Front to Back - Various up to 406 mm (16")

Industry Standards

• Operator Seat Vibration: ISO 7096
• Flammability: FMVSS 302

• Seat Belt Anchor: ISO 6683


Replacement For

• Caterpillar Seat Group Numbers Air:  488-6510, 488-6511,488-6598, 621-6281, 621-6320
• Caterpillar Seat Group Numbers Mechanical:  488-6501, 488-8381, 577-8381, 616-9631
