Weight:188lb (85kg)

Features View

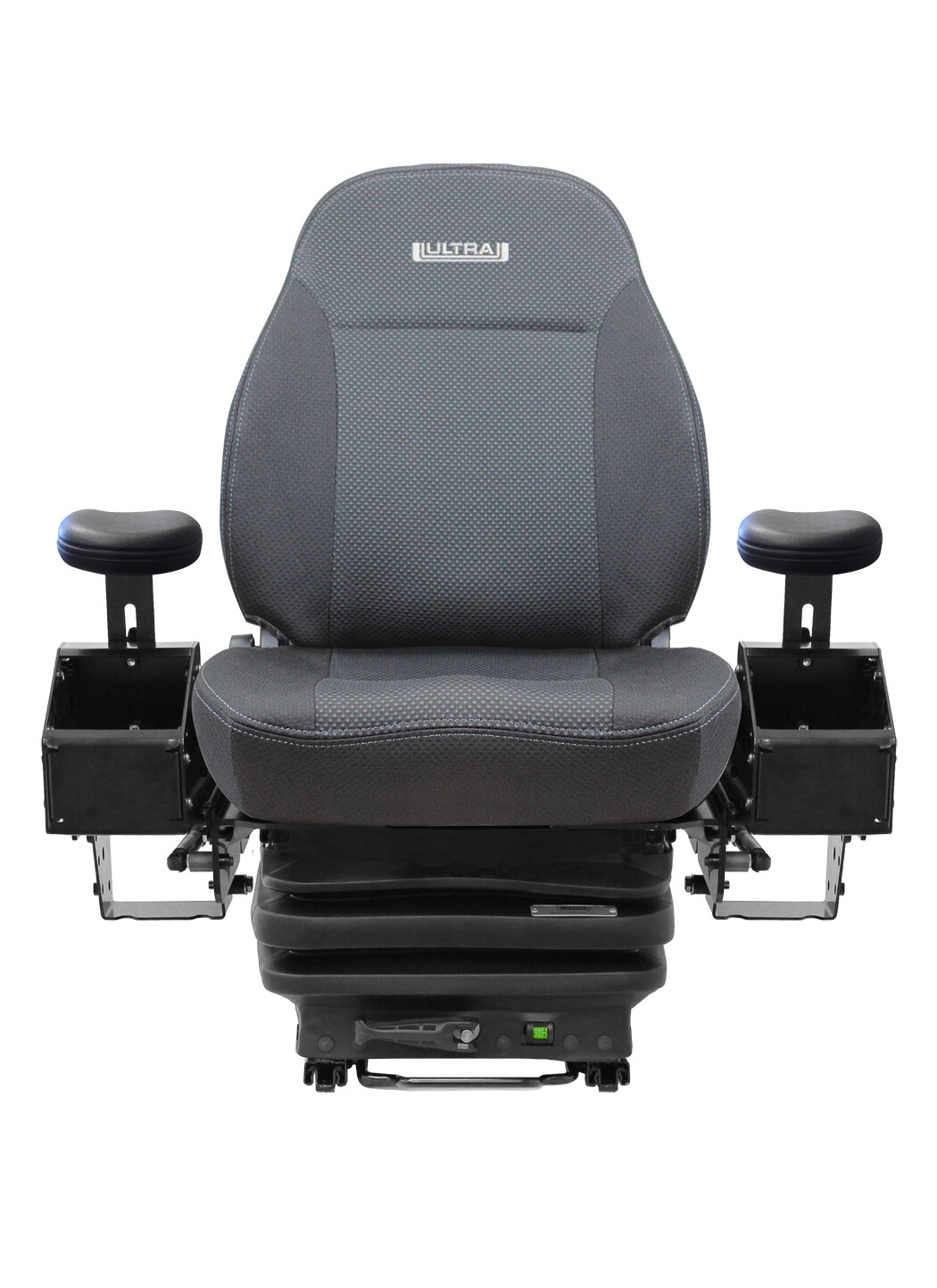

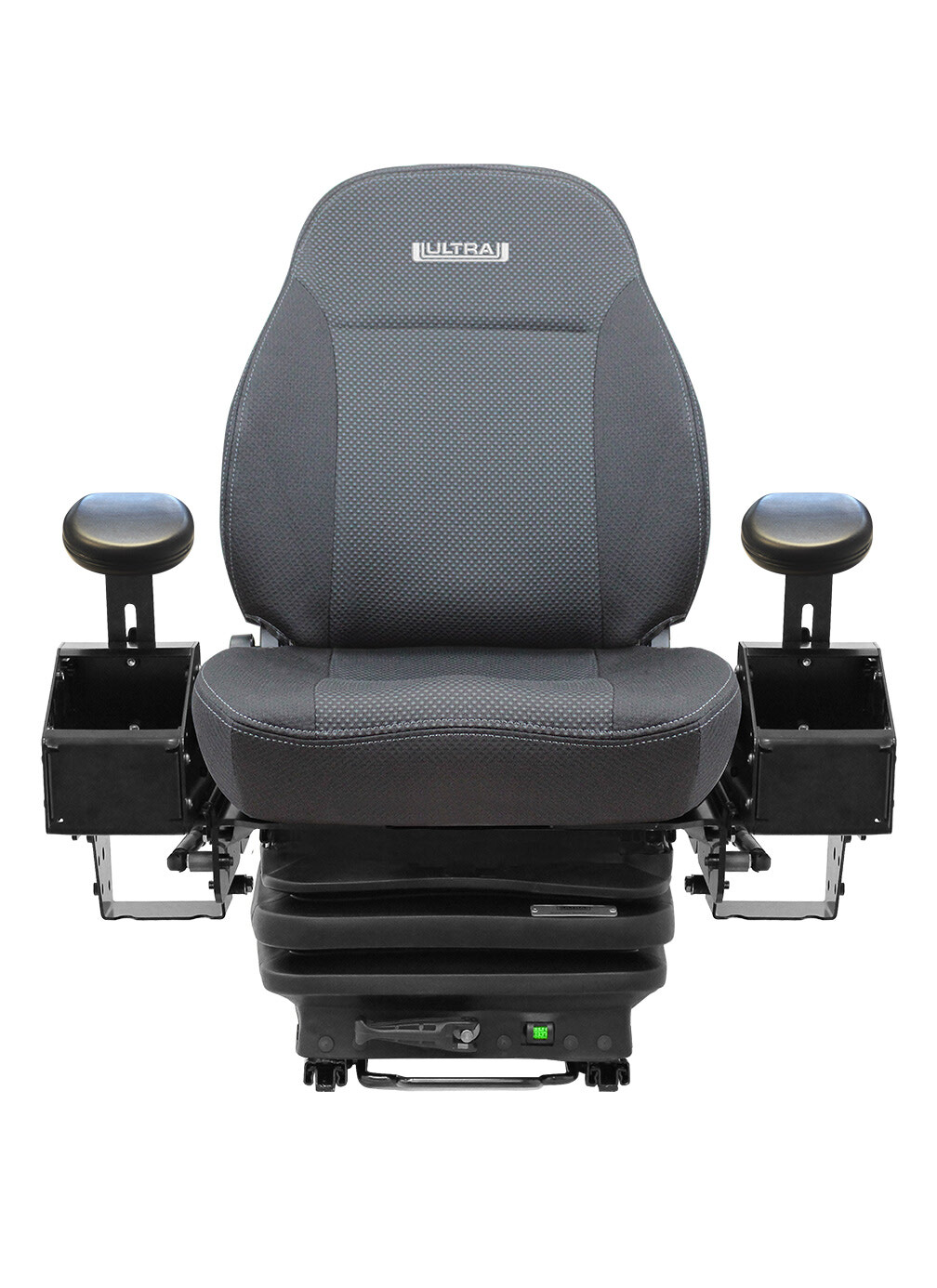

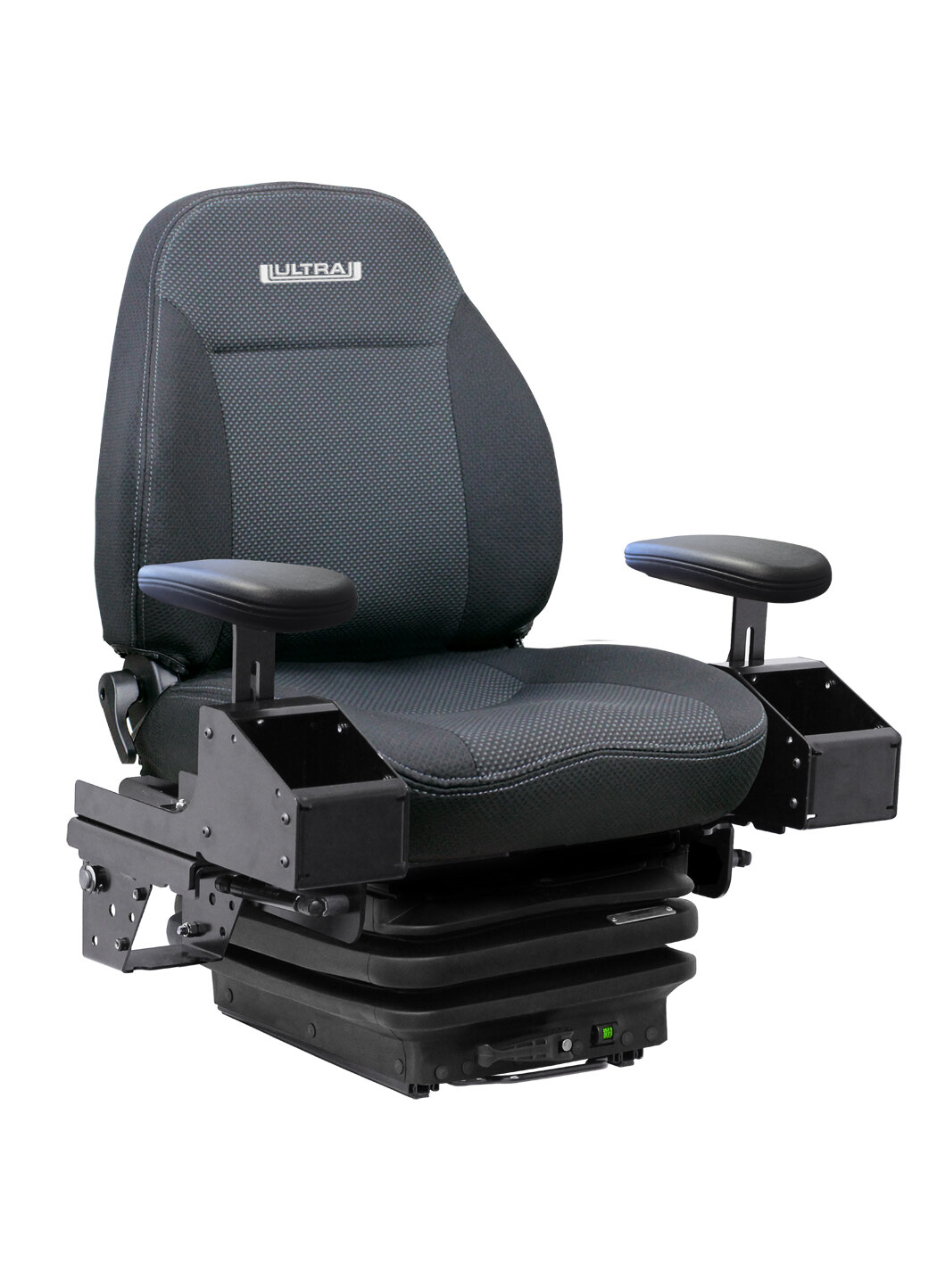

T732 HDP Mechanical Suspension Pod Seat

SELECT YOUR SEAT

		$2,184.00 USD T732 HDP Black/Grey Cloth Mechanical Suspension Seat 580448 Mechanical Suspension POD Seat.

		$2,184.00 USD T732 HDP Black Vinyl Mechanical Suspension Seat 580449 Mechanical Suspension POD Seat.

		None of the above This field is optional...

SELECT YOUR HEADREST

		$58.67 USD Adjustable Black/Grey Cloth Headrest 870221 Suited For T5 & T7 Series Seat Models, Administrator & Drafting 24 Hour Office Chairs

		$58.67 USD Adjustable Black Vinyl Headrest 87023 Suited For T5 & T7 Series Seat Models, Administrator & Drafting 24 Hour Office Chairs

		None of the above This field is optional...

SELECT YOUR ALTERNATE MOUNTING BRACKETS

		$114.67 USD Universal Mounting Plates - (Pair) 880-59 88059 Suited for most applications that require a wide side to side mounting pattern. Increase side to side pattern by a minimum of 3.5in to a maximum of 8in (per mounting bar / each side). Front to back mounting pattern is various to a maximum 406mm (16in).

		None of the above This field is optional...

SELECT YOUR SEAT BELT

		$160.00 USD 2 inch Retractable Seat Belt 81065 Suited For Most Seat Models.

		$210.67 USD 3 inch Retractable Seat Belt 81067 Suited For Most Seat Models.

		None of the above This field is optional...

Let us Help! What are you installing this seat in?

( $0 ) Base Price

+ ( $NaN ) SELECT YOUR SEAT

+ ( $NaN ) SELECT YOUR HEADREST

+ ( $NaN ) SELECT YOUR ALTERNATE MOUNTING BRACKETS

+ ( $NaN ) SELECT YOUR SEAT BELT

+ ( $NaN ) Let us Help! What are you installing this seat in?

+ ( $0 ) Price Modifiers

+ ( $0 ) Subtotal

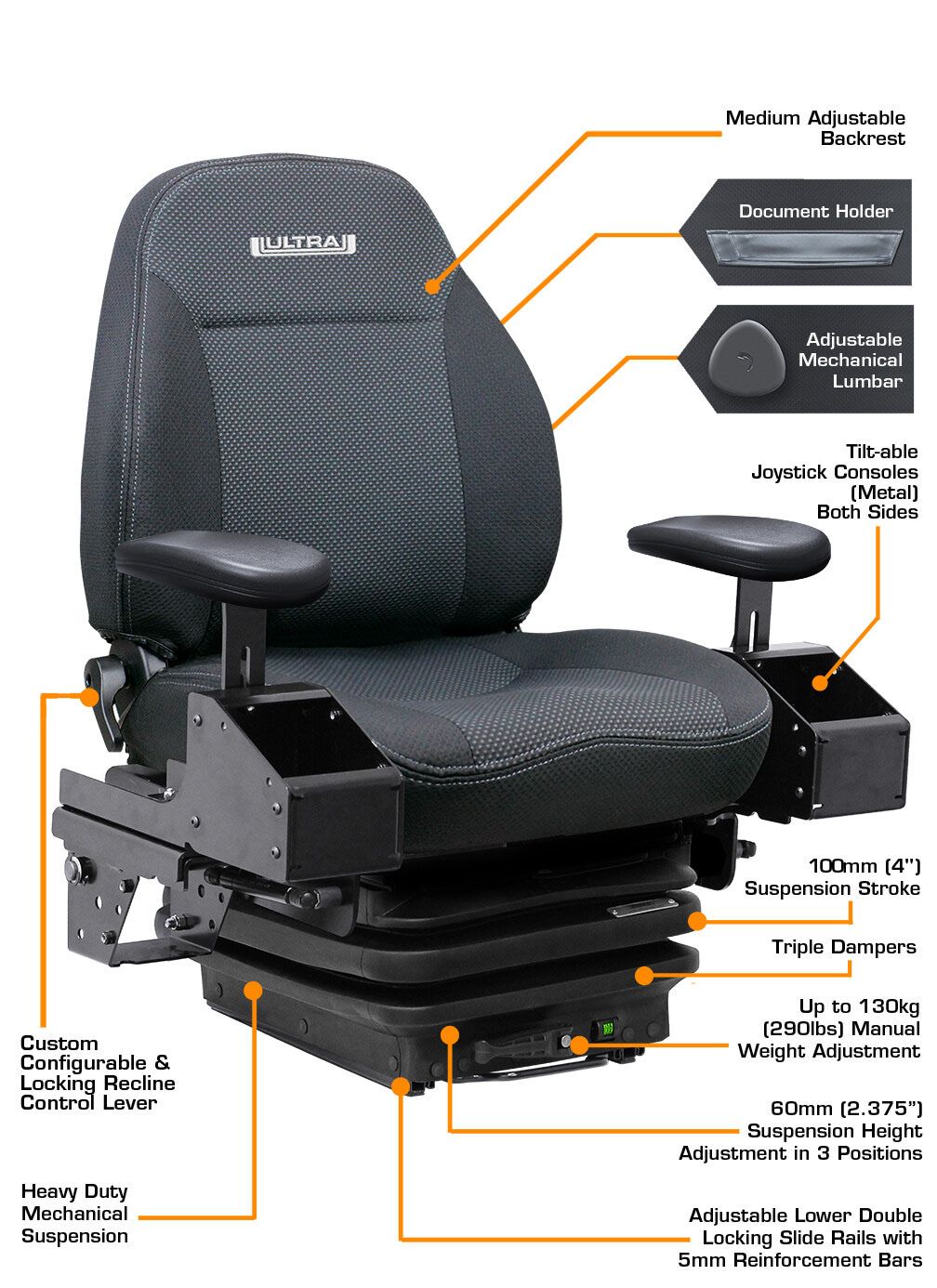

Features

Medium Adjustable Backrest
Custom Configurable & Locking Recline Control Lever
Adjustable Mechanical Lumbar
Document Holder
Tilt-able Joystick Consoles (Metal)

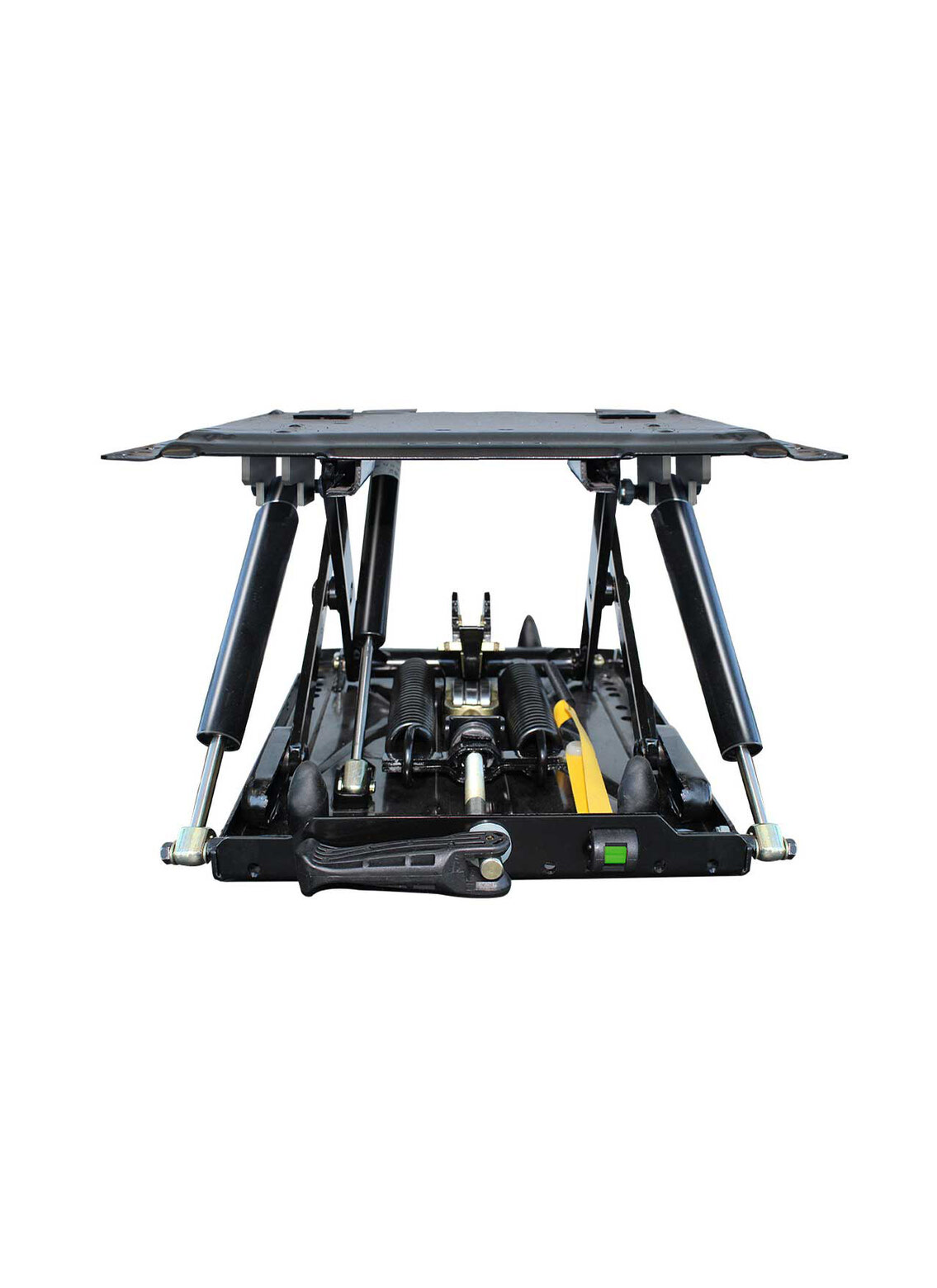

Heavy Duty Mechanical Suspension
Triple Dampers
Up to 130kg (290lbs) Manual Weight Adjustment
60mm (2.375”) Suspension Height Adjustment in 3 Positions
100mm (4") Suspension Stroke
Adjustable Lower Double Locking Slide Rails with 5mm Reinforcement Bars

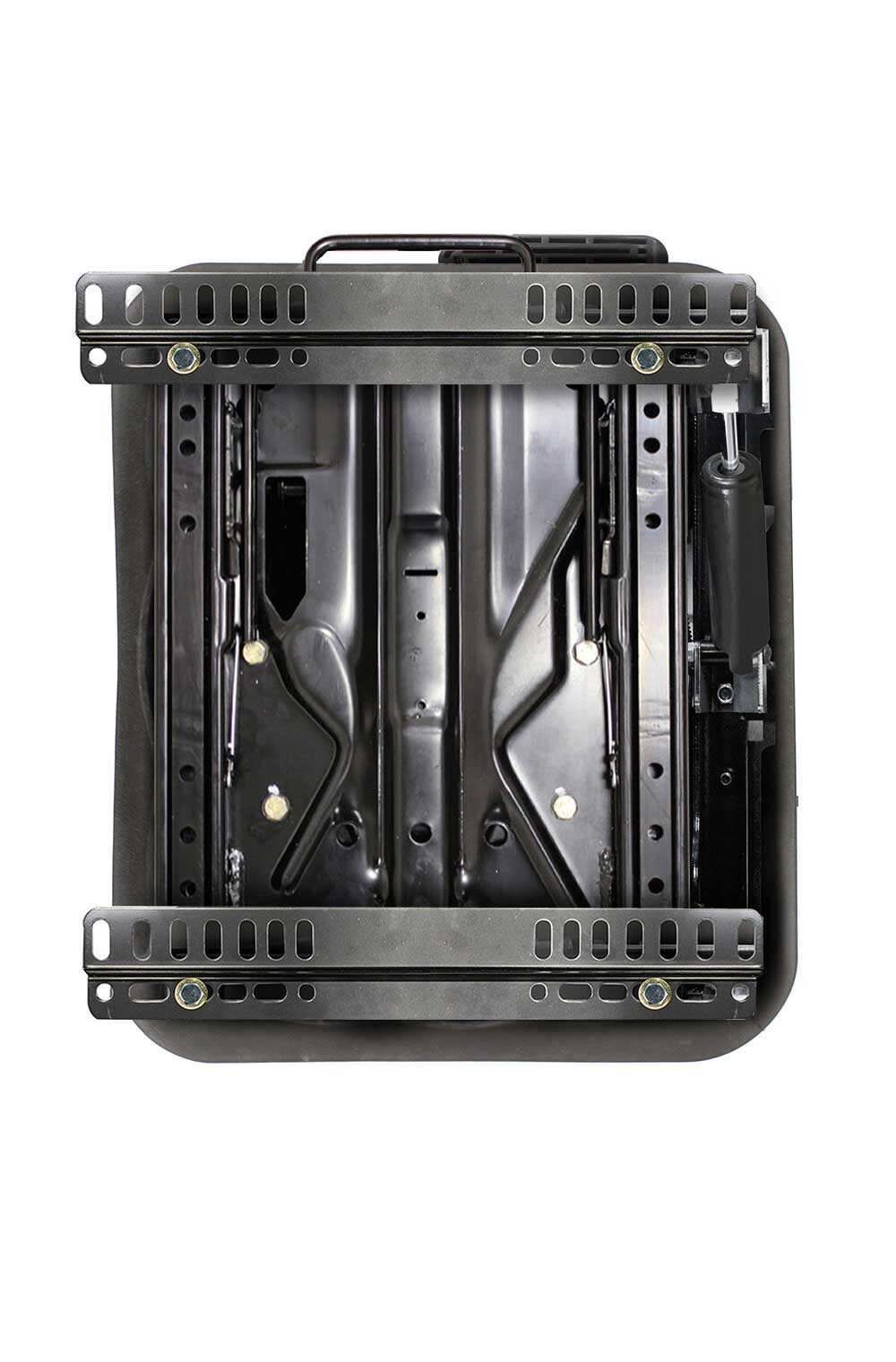

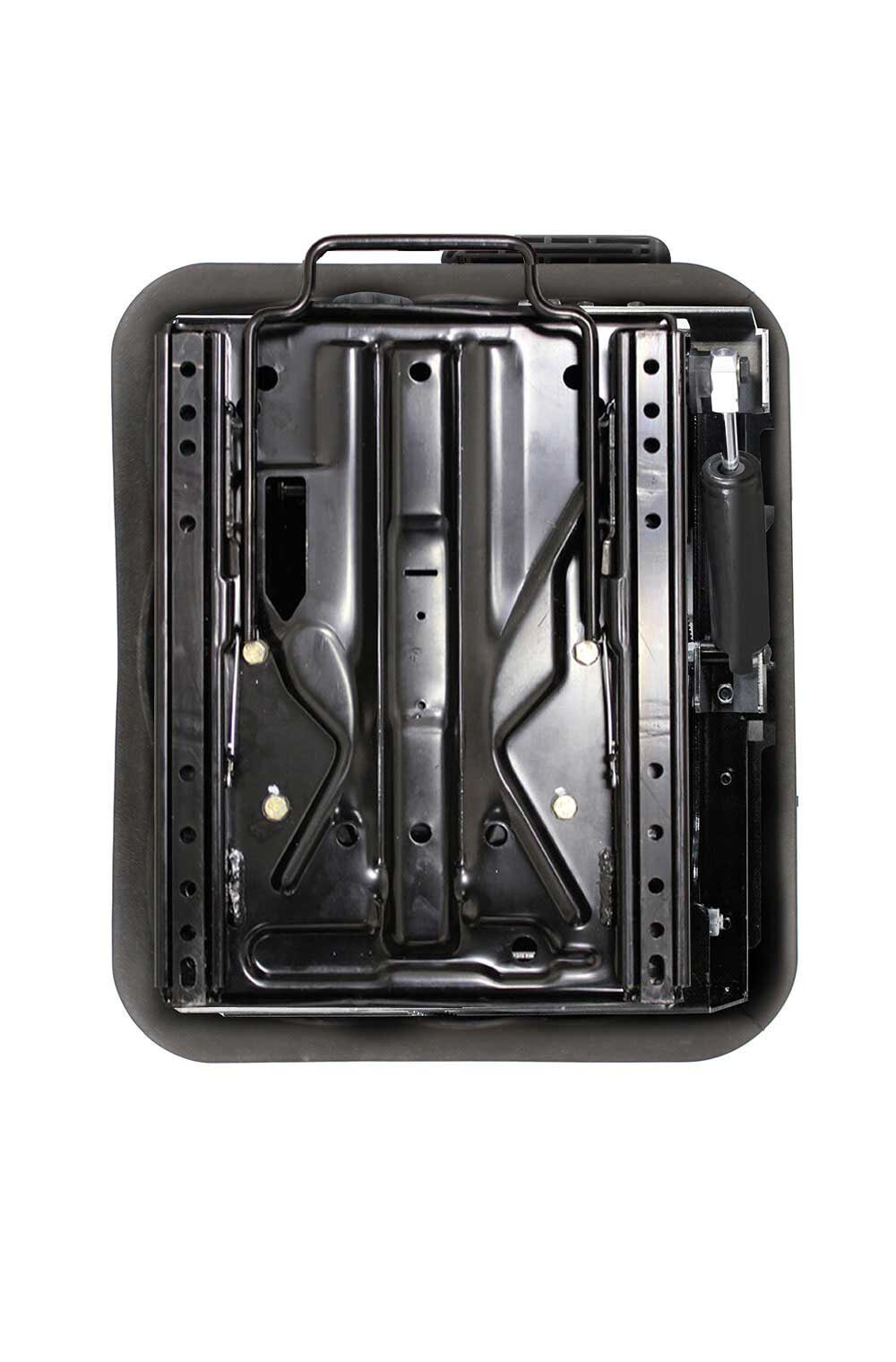

Bolt Pattern

260mm (10.25") Side to Side
229/254/279/305mm Front to Back
Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302
Seat Belt Anchor: ISO 6683
