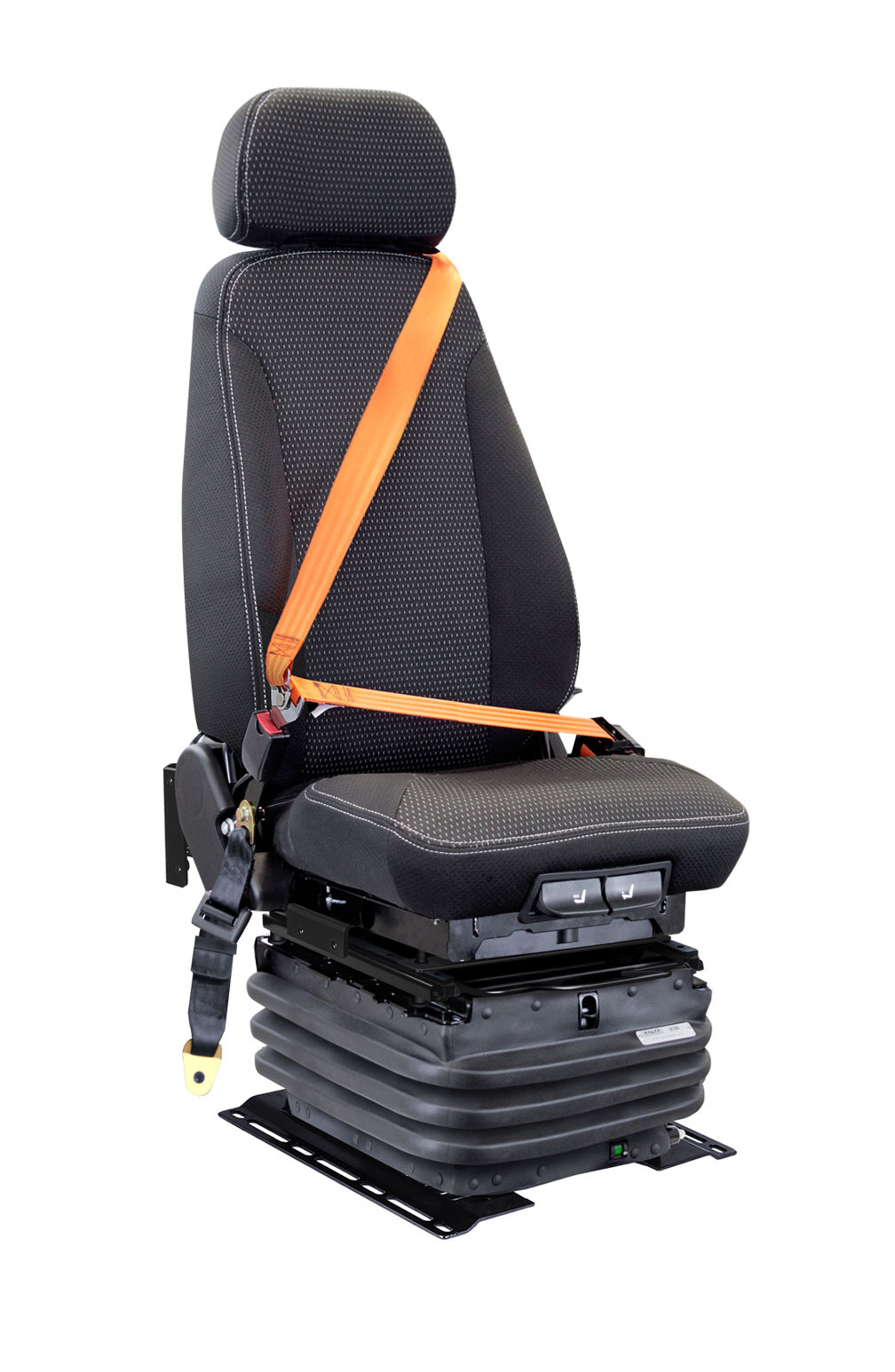

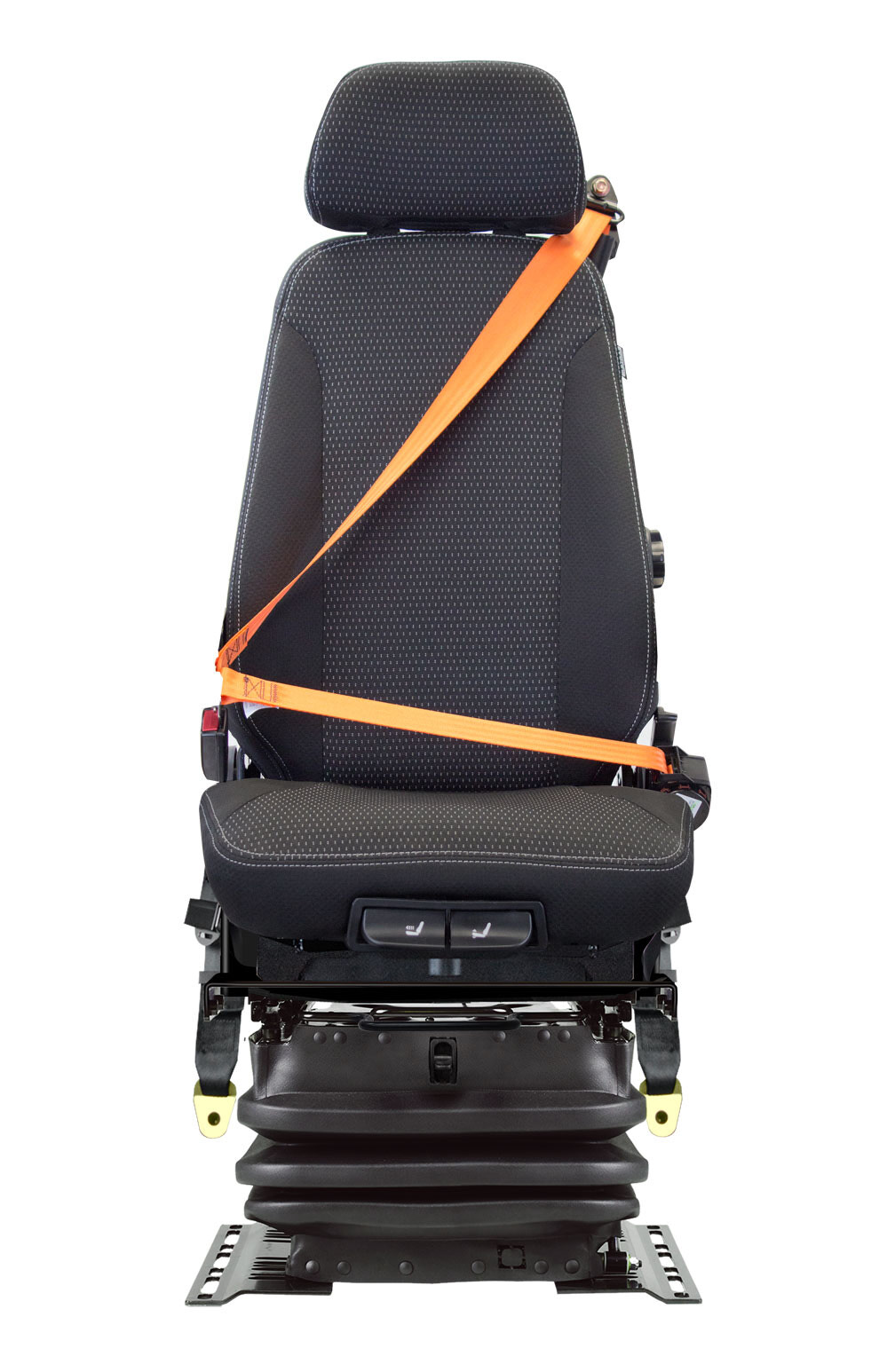

J978CH3 CAT7 Caterpillar Black/Grey 24 Volt Air Suspension Seat

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal

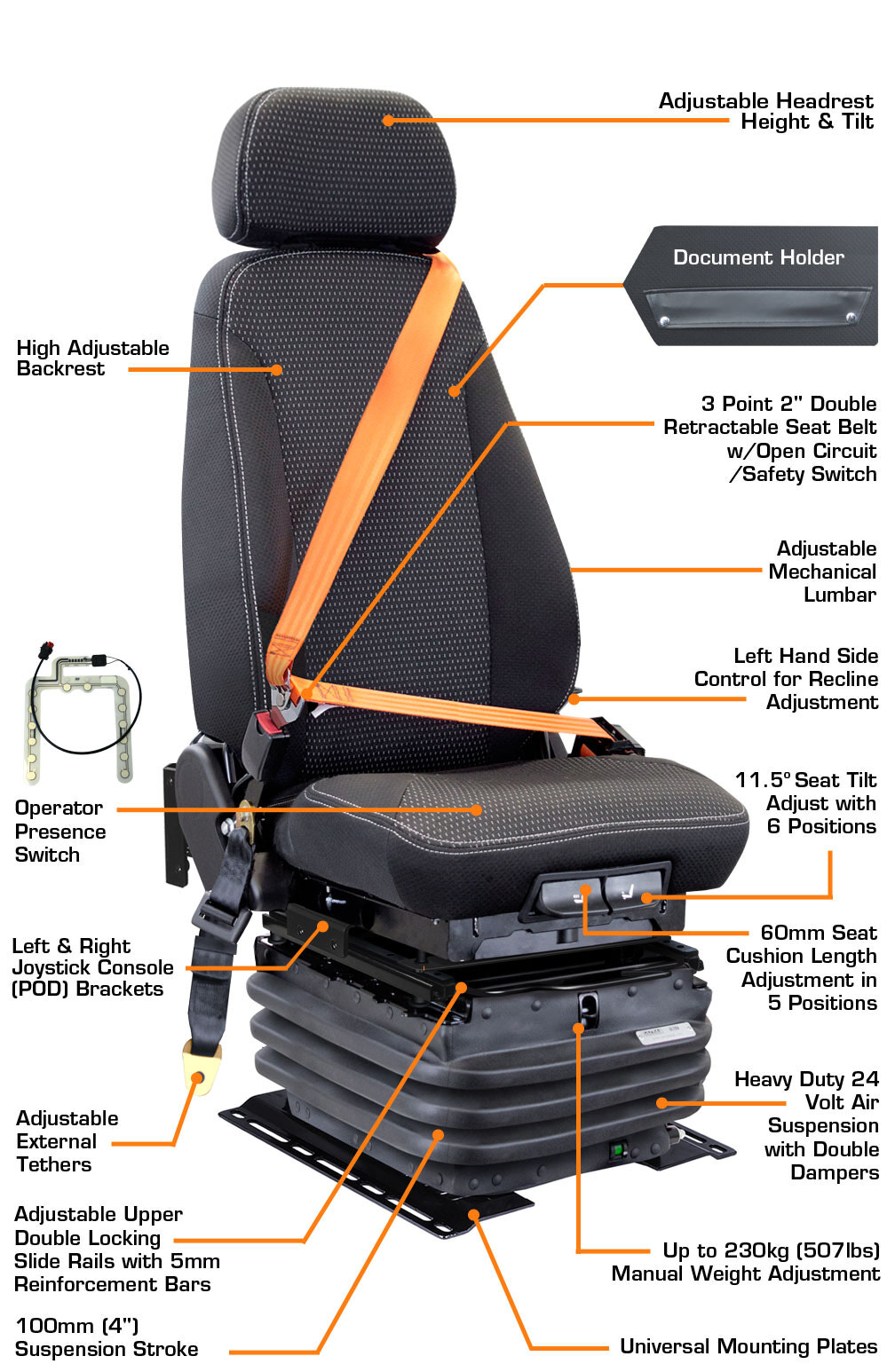

Features

  • High Adjustable Backrest
  • Adjustable Headrest / Height and Tilt
  • Left Hand Side Control for Recline Adjustment
  • Adjustable Mechanical Lumbar
  • Document Holder
  • 11.5° Seat Tilt Adjustment in 6 Positions
  • 60mm Seat Cushion Length Adjustment in 5 Positions

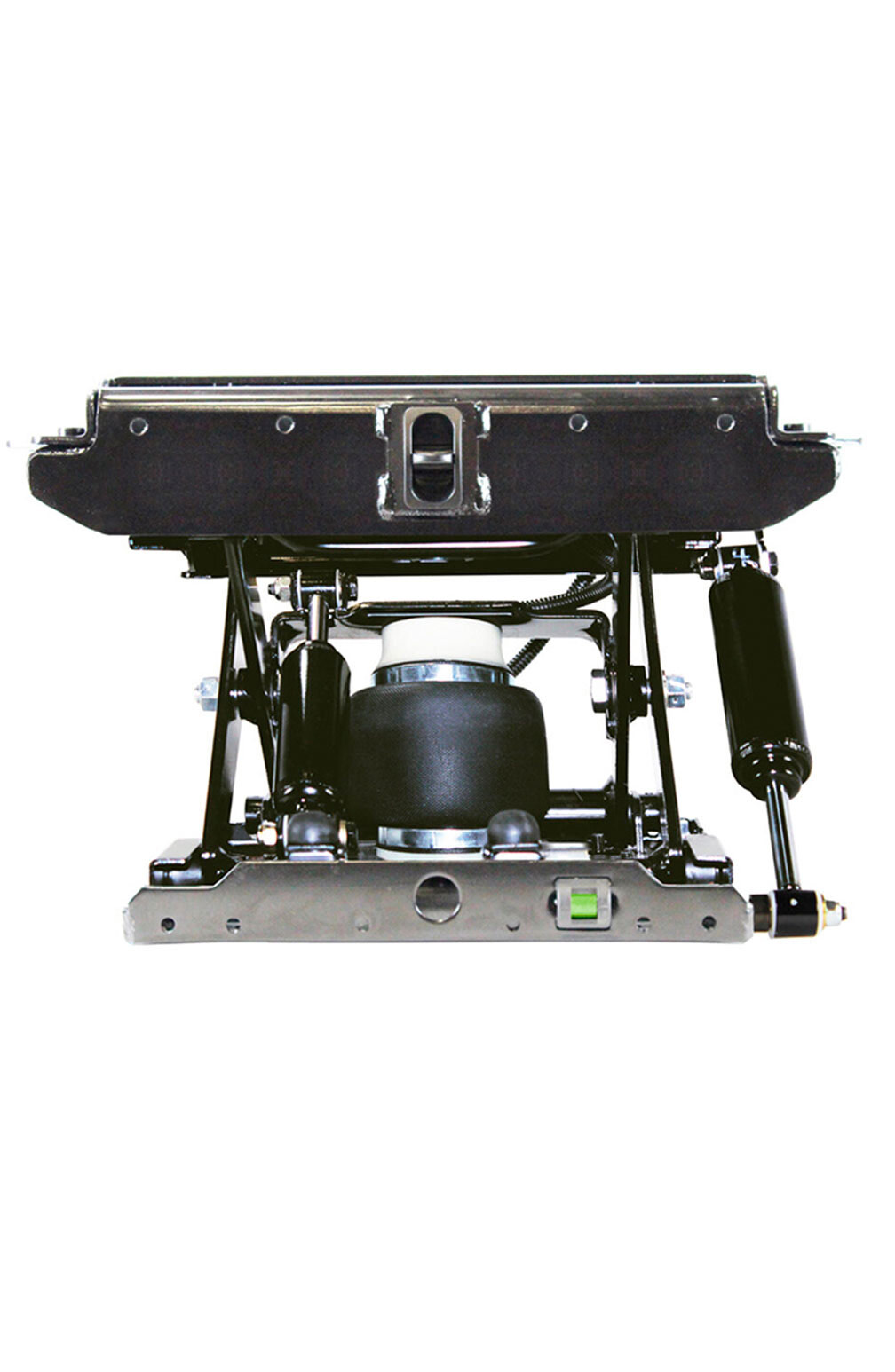

  • Heavy Duty 24 Volt Air Suspension with Double Dampers
  • Up to 230kg (507lbs) Manual Weight Adjustment
  • 100mm (4") Suspension Stroke

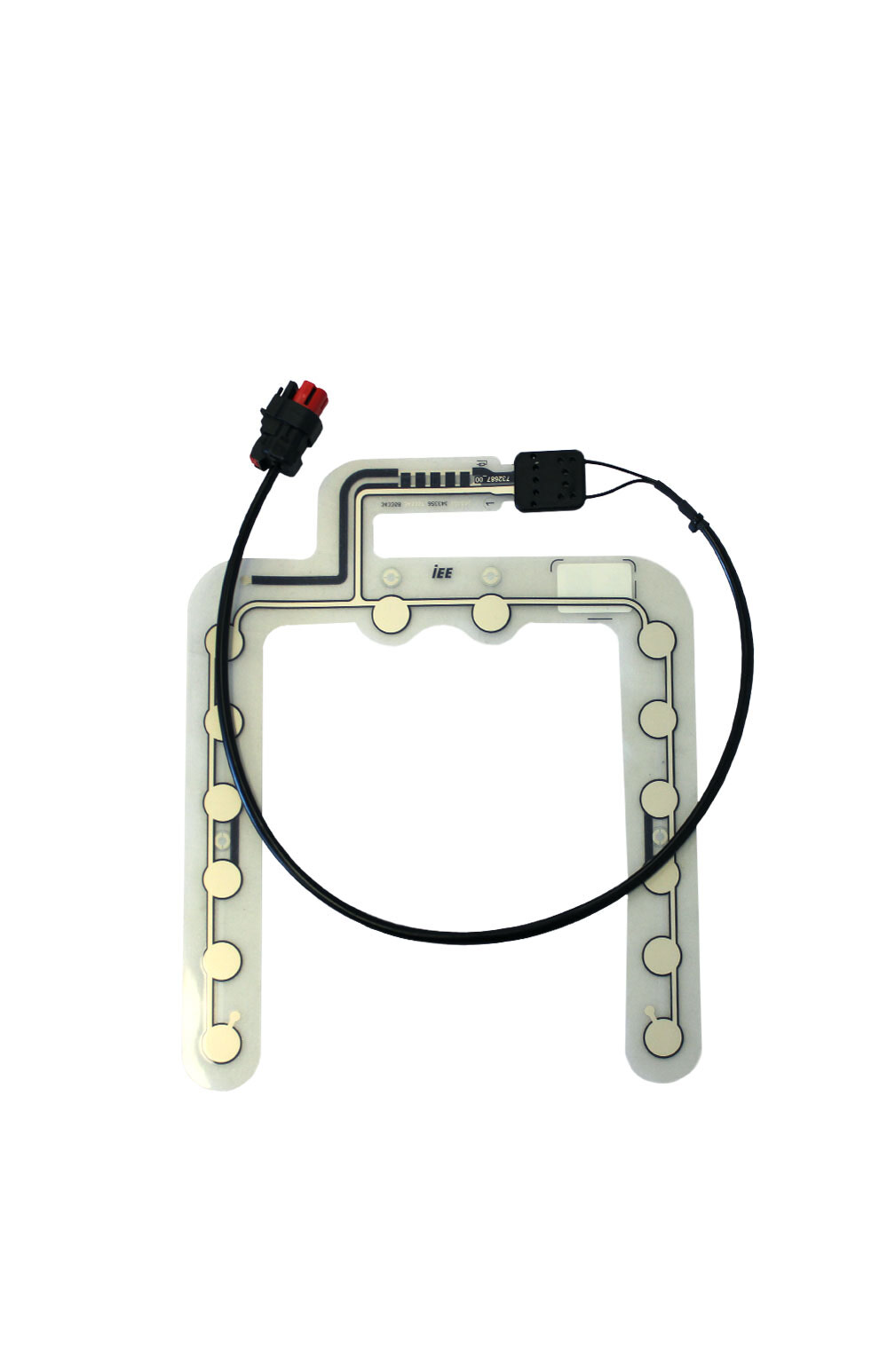

  • Operator Presence Switch
  • Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars

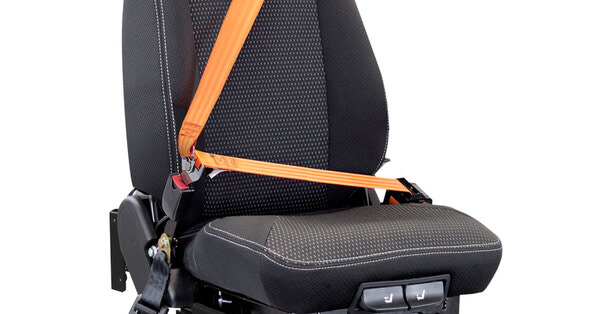

  • 3 Point 2" Double Retractable Shoulder Seat Belt With Open Circuit / Safety Switch
  • Adjustable External Tethers
  • Left & RIght Joystick Console (POD) Brackets
  • Universal Mounting Plates

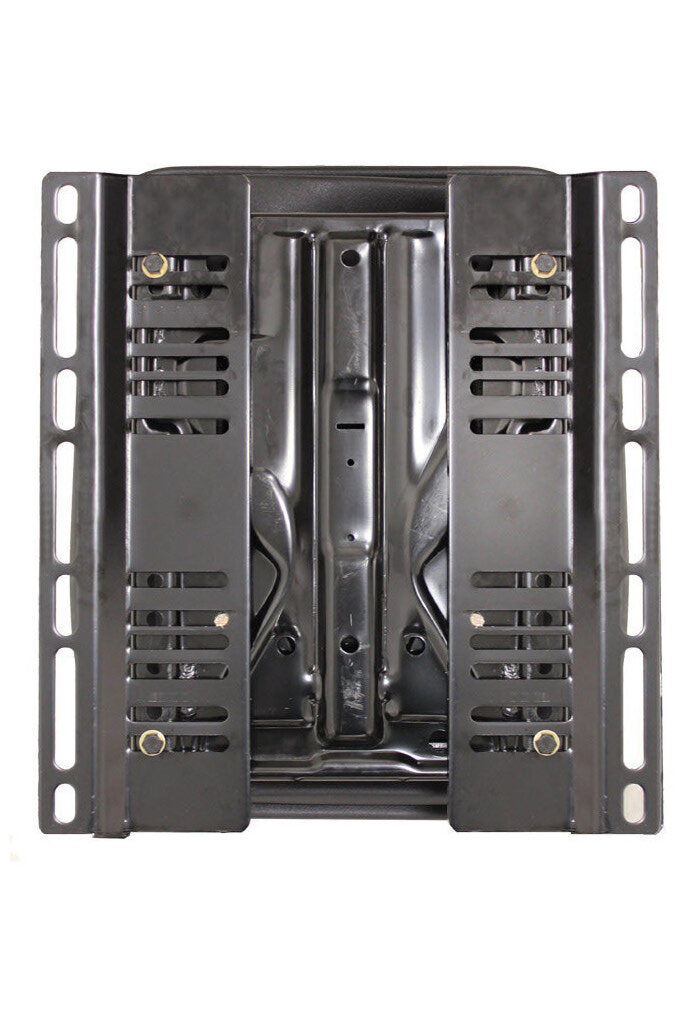

Bolt Pattern

  • Mounting Plates (88059) Shipped With Seat
  • Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")
  • Front to Back - Various up to 406mm (16")

Industry Standards

  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302

Can be used as a replacement for:

  • Caterpillar Model Numbers: 950K, 950M, 962K, 962M, 966K, 966M, 966M XE, 972K, 972M, 972M XE, 980M, 982M, 986K, 988K, 988K XE, 990, 990K, 993, 993K, 994K
  • Caterpillar Group Numbers: 421-1225, 421-1226, 351-2796, 521-0672, 521-0685
