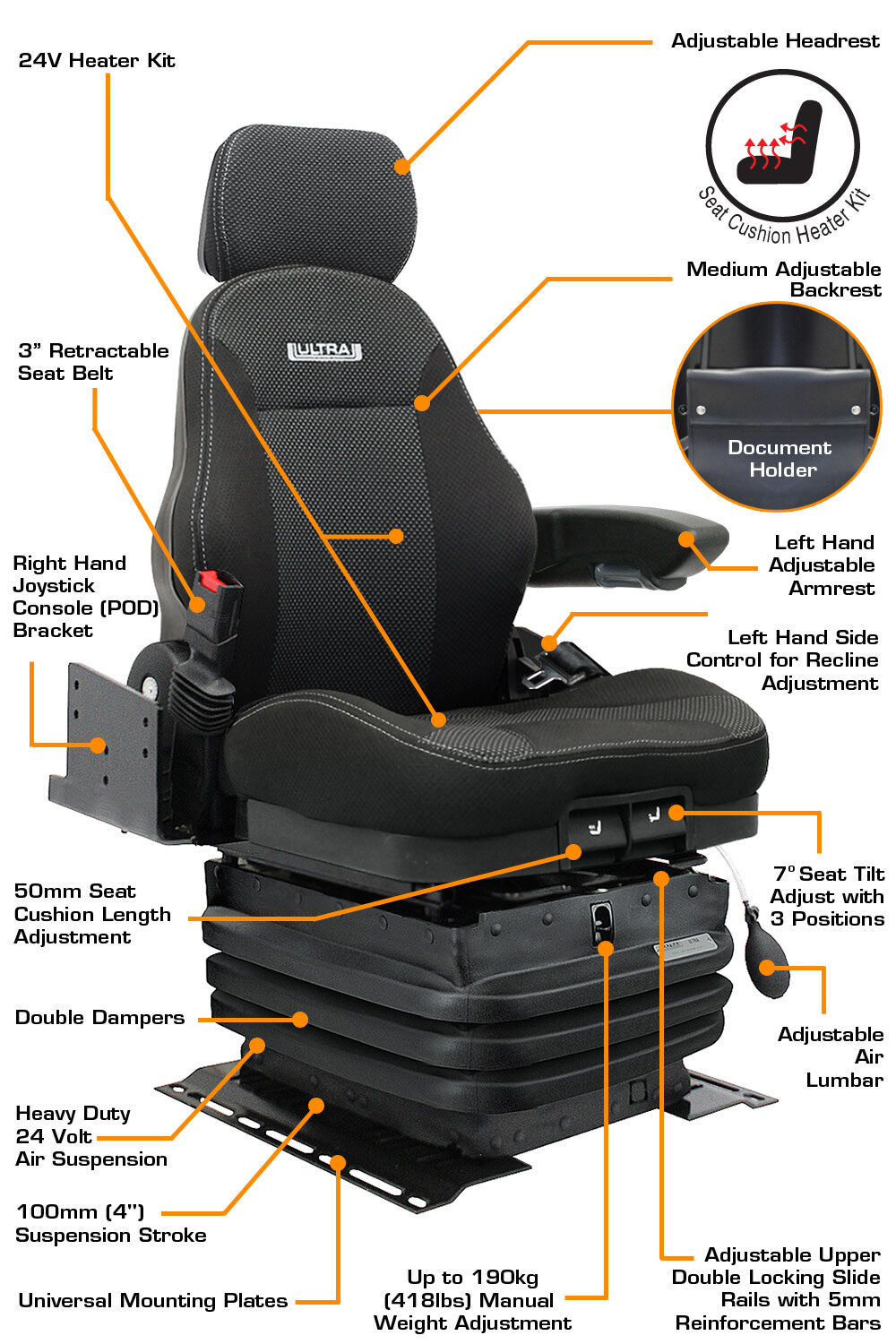

Features
- Medium Adjustable Backrest
- Left Hand Side Control for Recline Adjustment
- Adjustable Air Lumbar
- Document Holder
- 7º Seat Tilt Adjustment in 3 Positions
- 50 mm Seat Cushion Length Adjustment

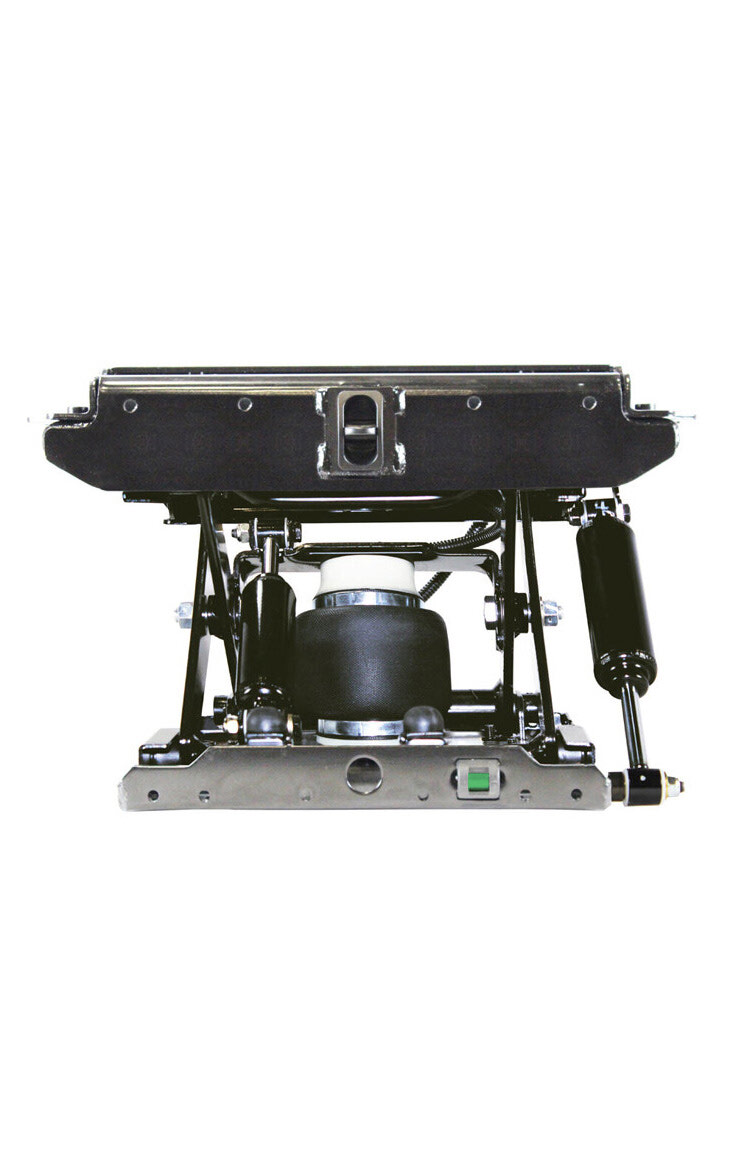

- Heavy Duty 24 Volt Air Suspension with Double Dampers
- Up to 190 kg (418lbs) Manual Weight Adjustment
- 100mm (4") Suspension Stroke
- Adjustable Upper Double Locking Slide Rails
- Adjustable Headrest
-

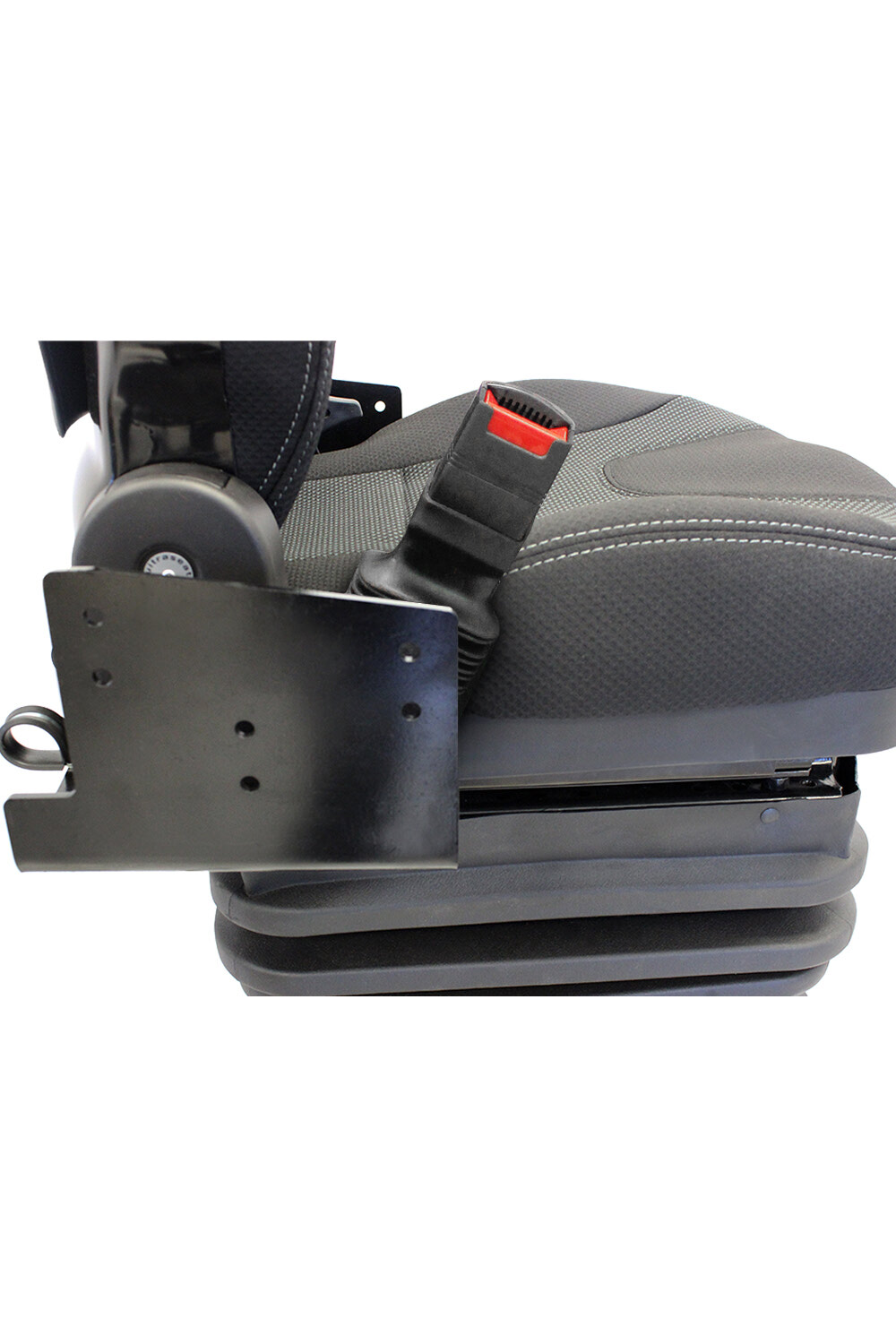

Right Joystick Console (Pod) Bracket
-
Adjustable 2.5” Left-Hand Armrest
-
3” Retractable Seat Belt
-

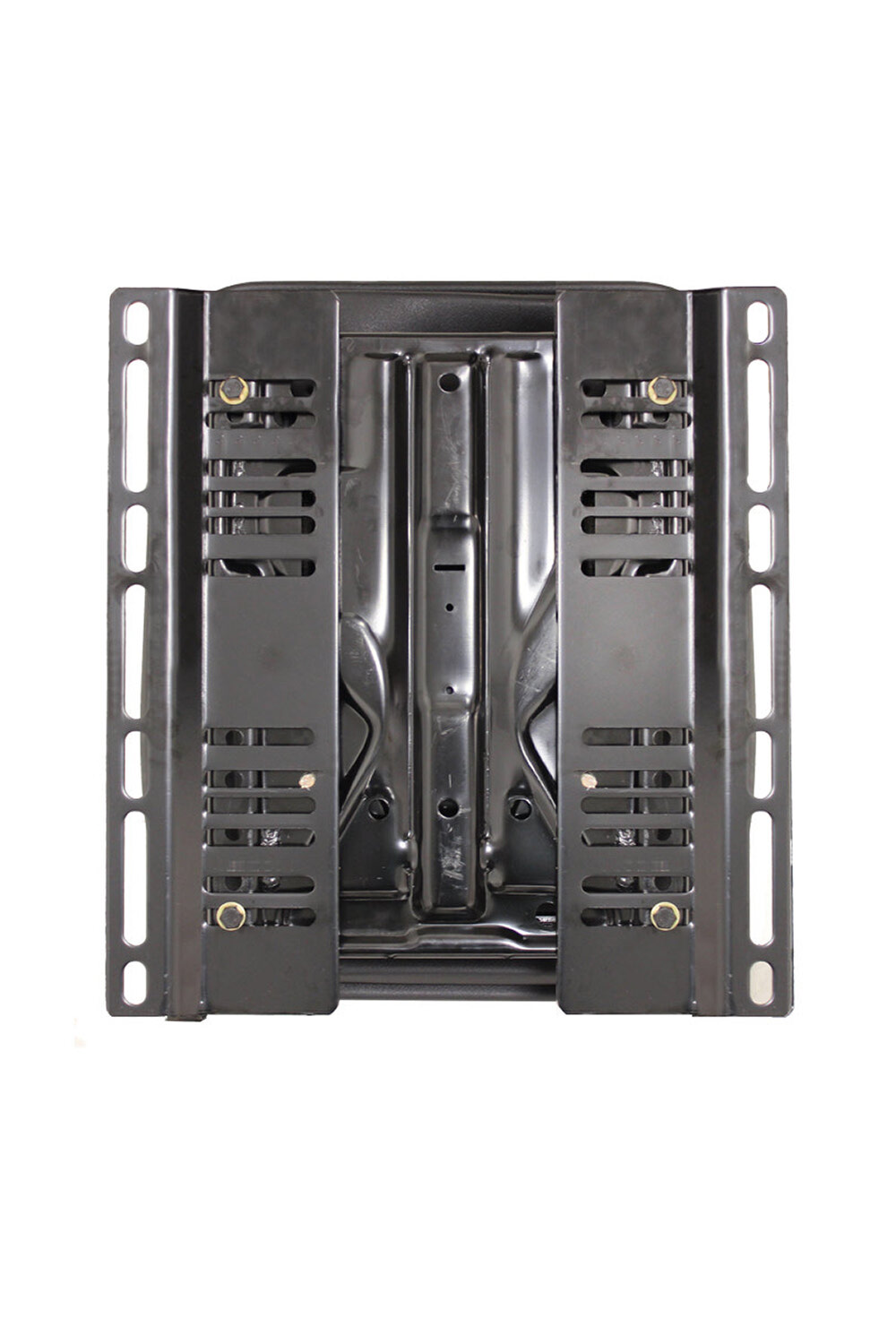

Universal Mounting Plates
Bolt Pattern
- Mounting Plates (88059) Shipped with Seat
- Side to Side - Adjustable from a Minimum 346mm (13-5/8") to a Maximum 467mm (18-3/8")
- Front to Back - Various up to 406mm (16")
Industry Standards
- Operator Seat Vibration: ISO 7096
- Seat Belt Anchor: ISO 6683
- Flammability: FMVSS 302
Replaces
- Caterpillar Seat Group Numbers: 342-0145, 342-0111, 478-1320, 490-5983, 424-5261, 423-7201
