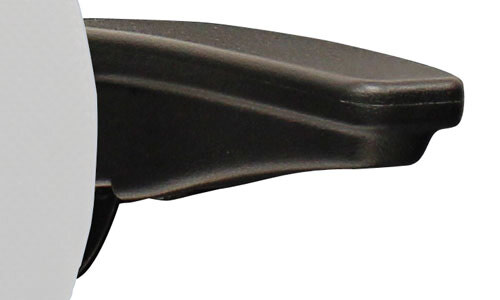

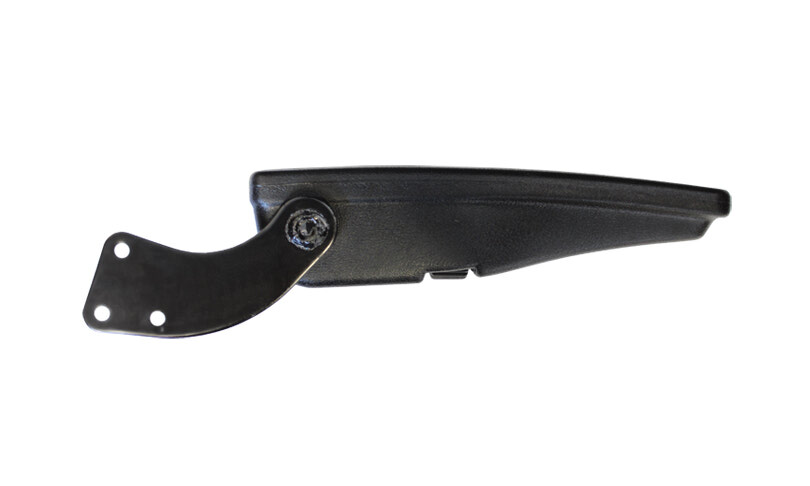

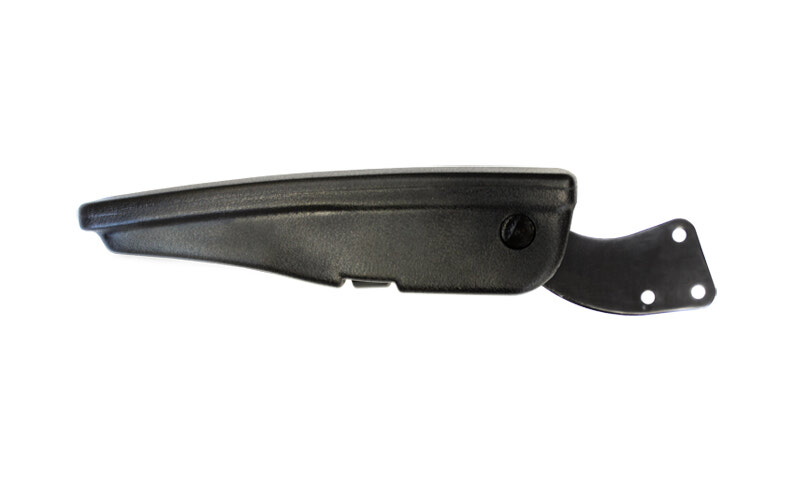

2.5 inch Econo Left Armrest

Features

• Designed to fit “K” & “T” Series Seats

• Heavy Duty Molded Vinyl / Cushioned Top Pad
• Angle Adjustable / Adjustment Dial

• Flip Up

Bolt Kit

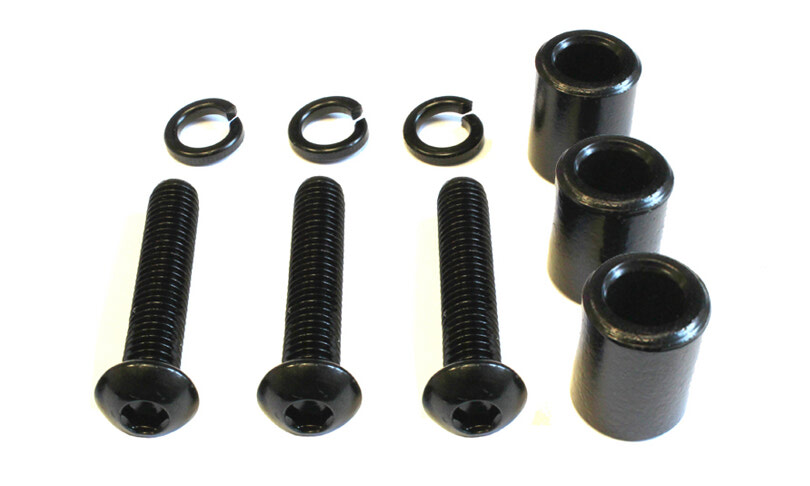

• Supplied with Each Arm (3 - 8mm x 40mm Button Head Bolts, 3 - 8mm Lock Washes, 3 - 20mm Long x 16mm Wide (OD) X 9mm (ID) Spacers)

Dimensions / Mounting Pattern

• 63.5mm (2.5”) Wide, 318mm (12.5”) Long (see Mounting Pattern Download)

Replacement For

• Ultra "K" & "T" Series, KAB Seats with Arms Mounted Directly to Side of Seat (Seat Frame), KAB SK-1562 Left Hand Only


Armrest Installation Guide

• See Installation Guide Download (Ultra Seats)

• See Installation Guide Download (KAB Seats)
