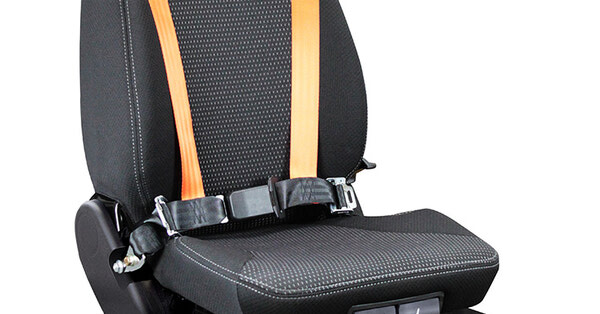

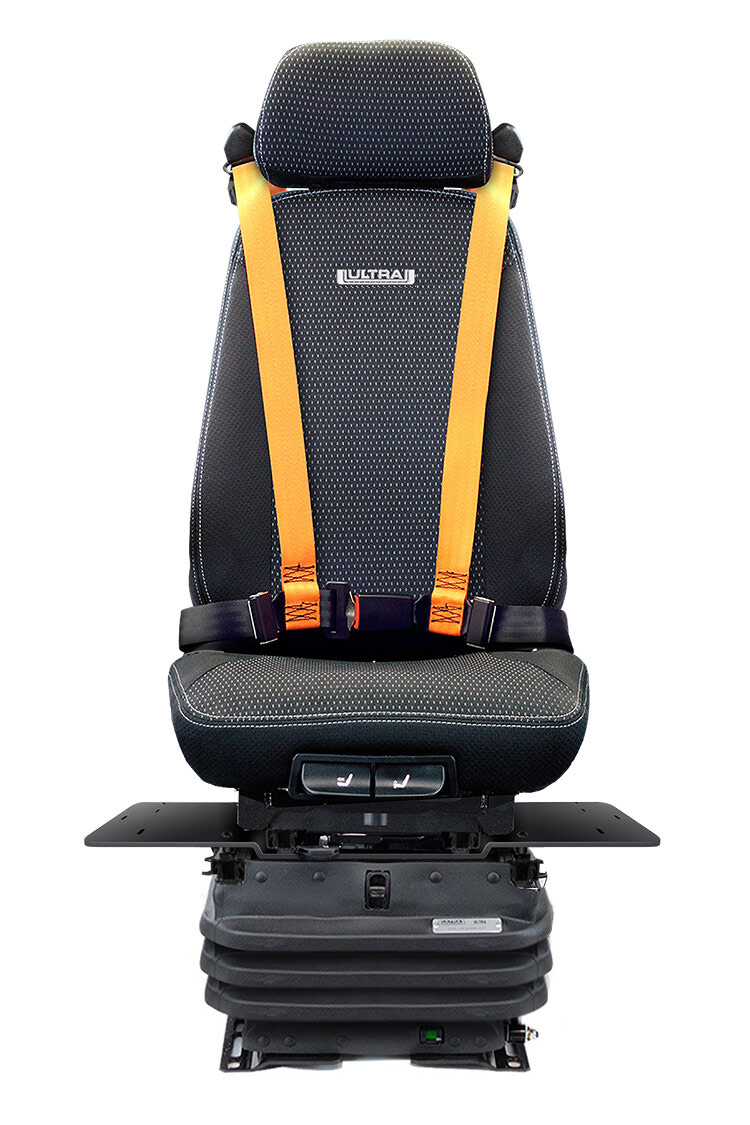

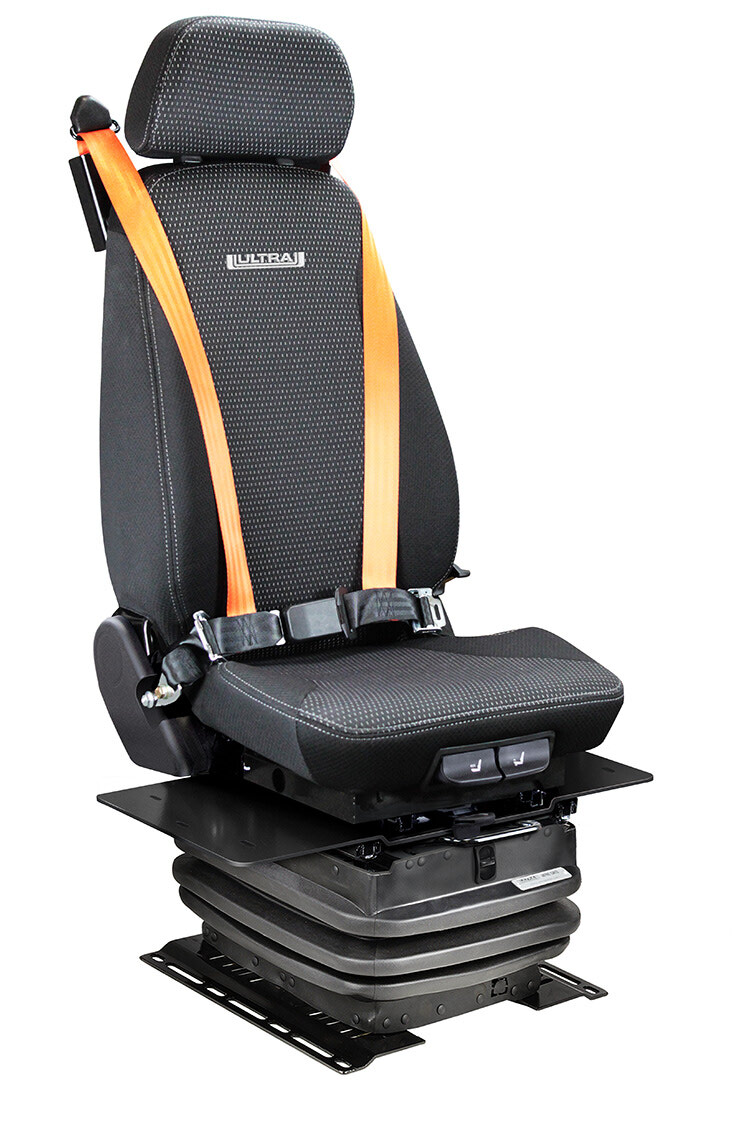

J978H4JDSK 4 Point Seat Belt John Deere Skidder Seat

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN SELECT YOUR LEFT ARMREST
+ $NaN SELECT YOUR RIGHT ARMREST
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal

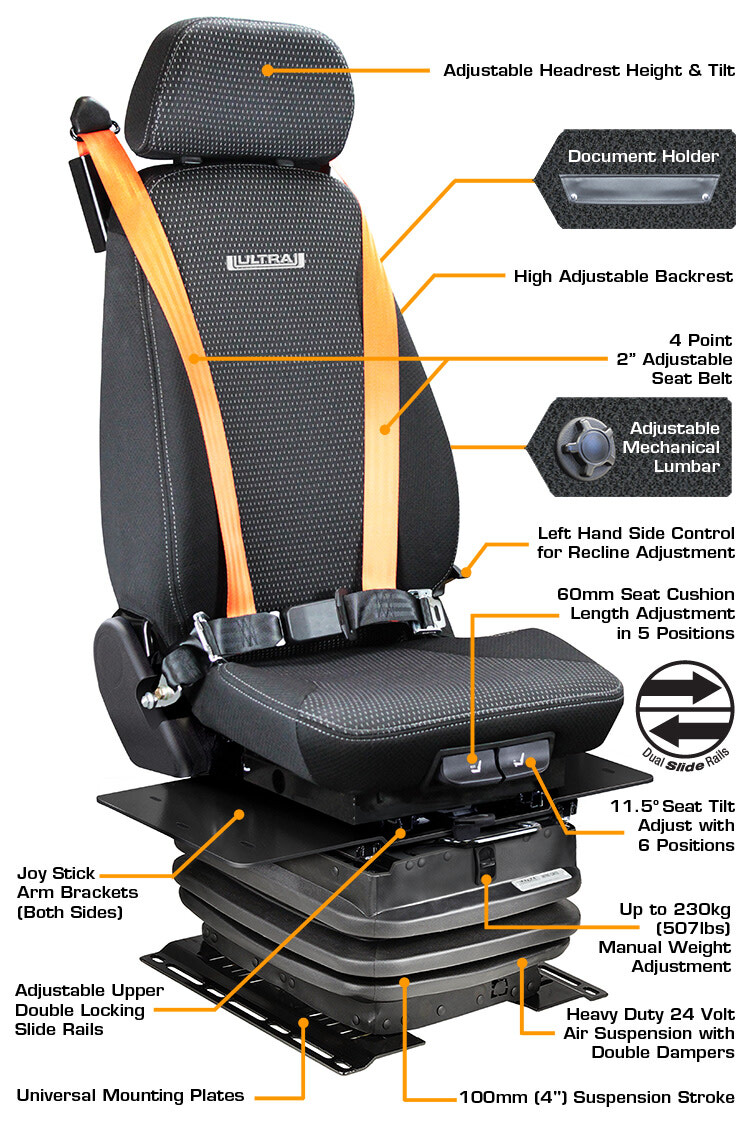

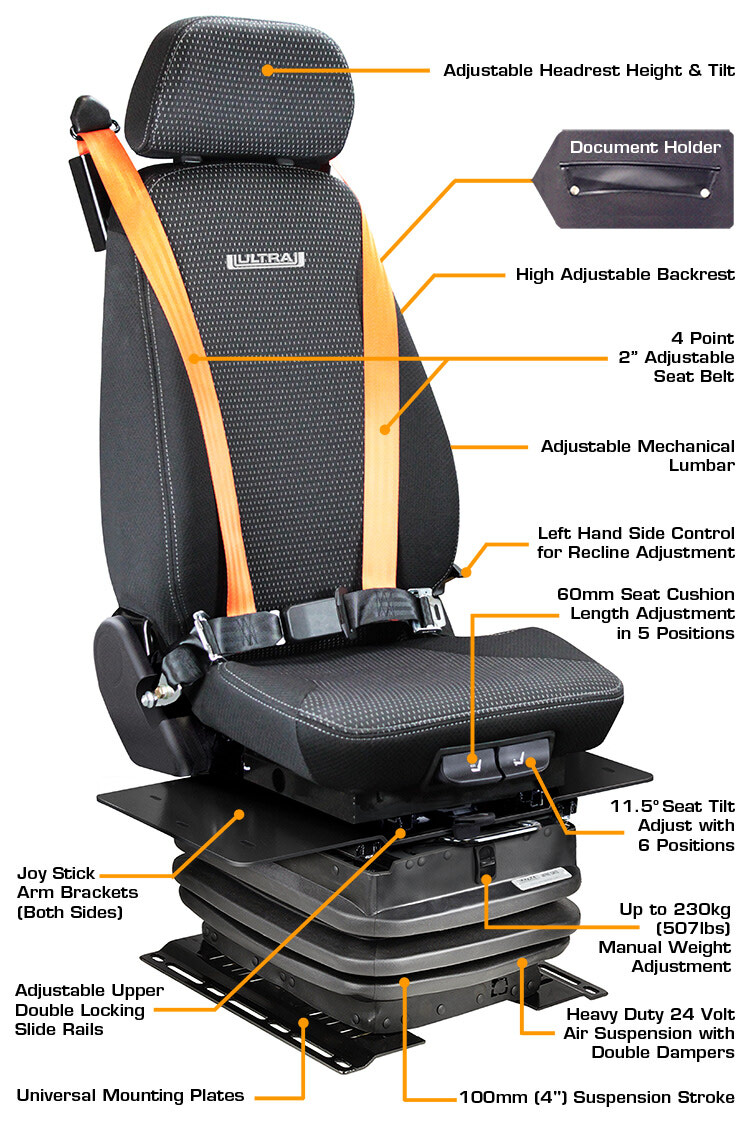

Features

  • High Adjustable Backrest
  • Left-Hand Side Control for Recline Adjustment
  • Adjustable Mechanical Lumbar
  • Adjustable Headrest / Height and Tilt
  • Document Holder
  • 11.5° Seat Tilt Adjustment in 6 Positions
  • 60mm Seat Cushion Length Adjustment in 5 Positions

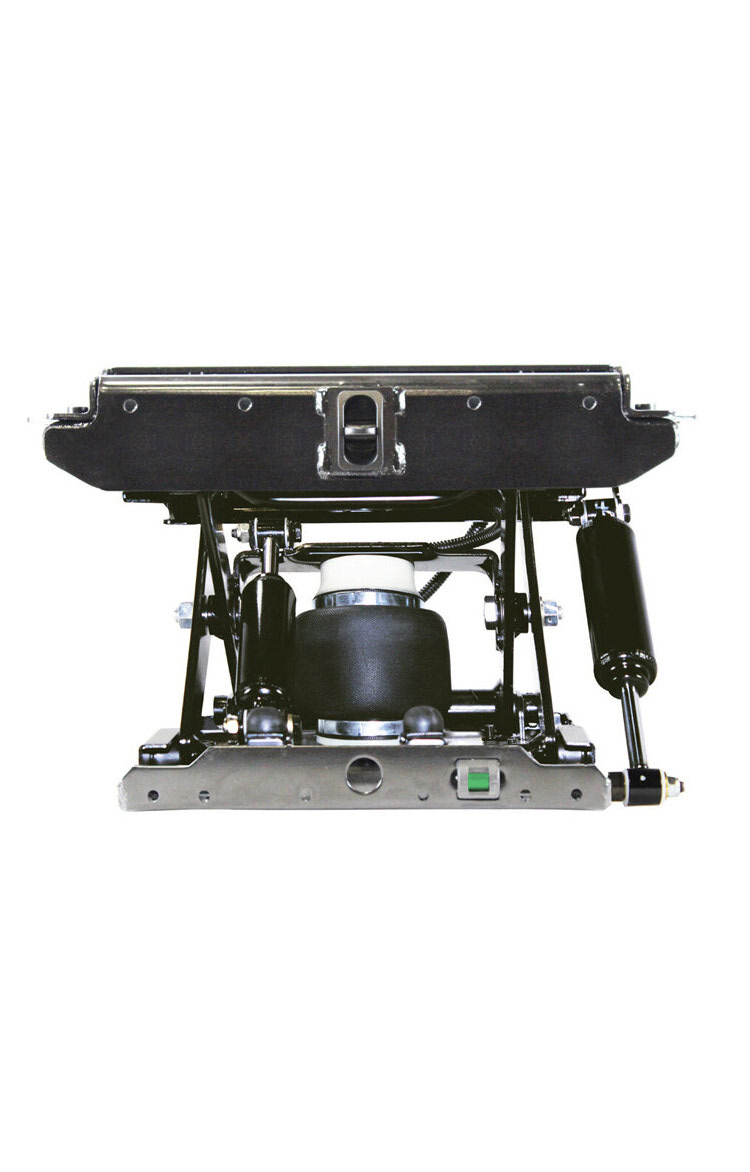

  • Heavy Duty 24 Volt Air Suspension with Double Dampers (One Adjustable)
  • Up to 230kg (507lbs) Manual Weight Adjustment
  • 100mm (4") Suspension Stroke
  • Dual Adjustable Upper Double Locking Slide Rails
  • 4 Point 2" Adjustable Seat Belt
  • Joystick Arm Brackets (Both Sides)
  • Universal Mounting Plates

Bolt Pattern

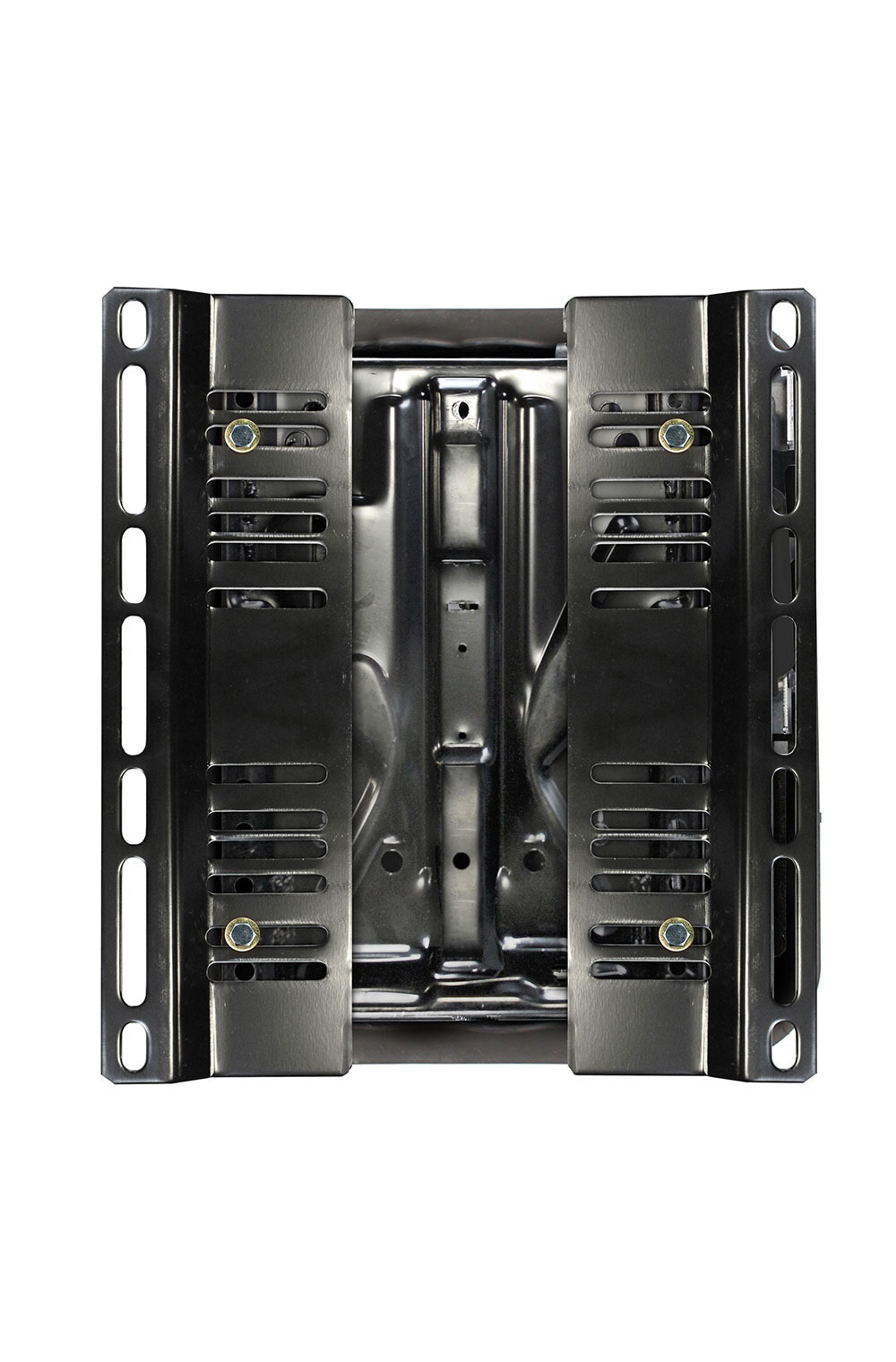

  • Mounting Plates (88059) Shipped With Seat

  • Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")

  • Front to Back - Various up to 406 mm (16")

Industry Standards


  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302

Replaces John Deere Seat

  • Model Numbers
    • 648L, 748L, 848L, 948L
  • Group Numbers
    • AT401631, AT415575, AT467191, AT467193
