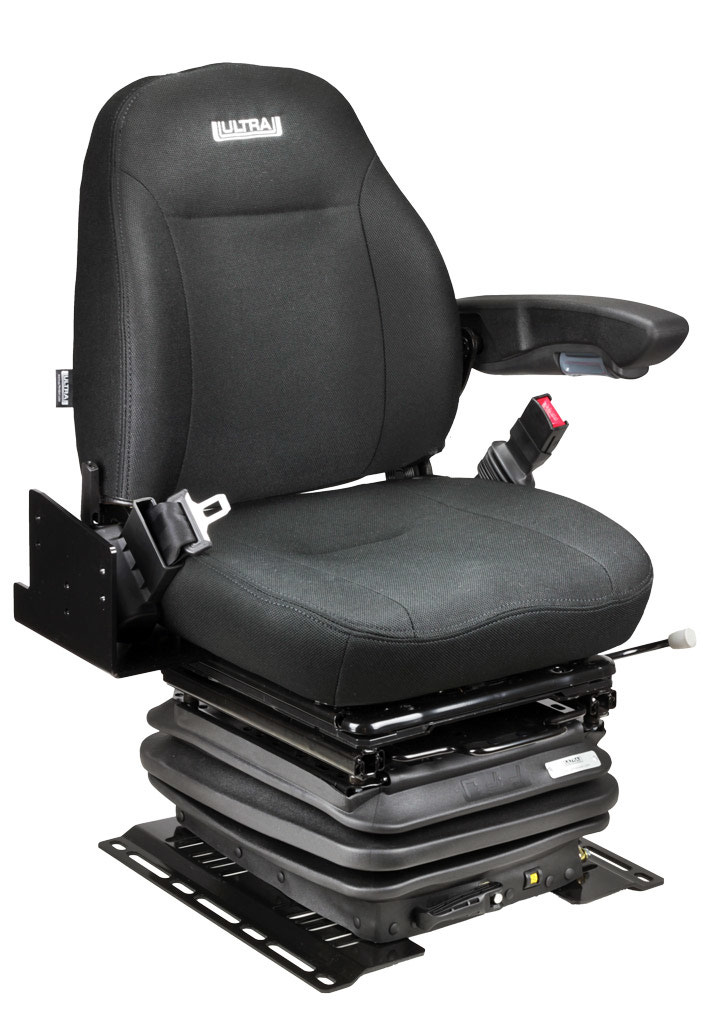

T732S CAT8RH Mechanical Suspension Seat with Swivel

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN SELECT YOUR HEADREST
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal

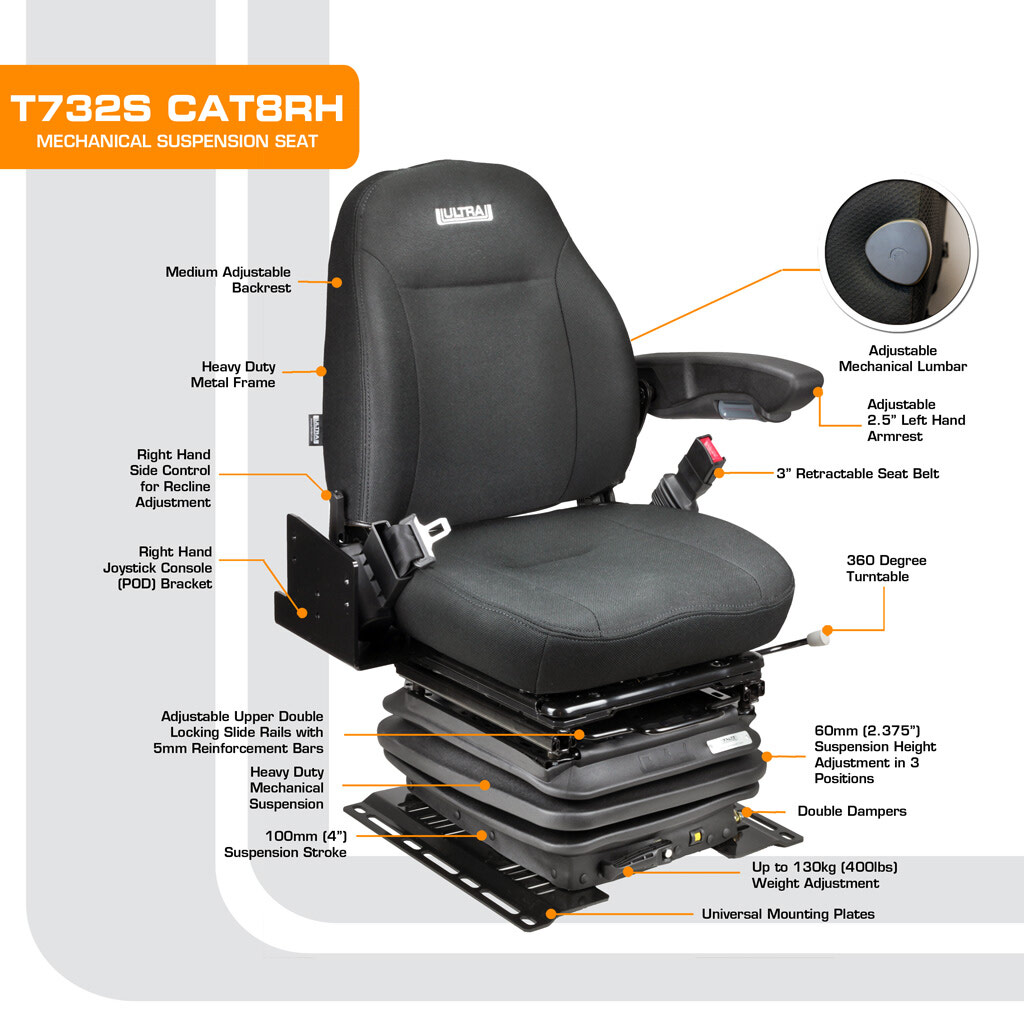

Features

  • Medium Adjustable Backrest
  • Right Hand Side Control for Recline
  • Heavy Duty Metal Frame
  • Adjustable Mechanical Lumbar
  • Document Holder
  • Heavy Duty Mechanical Suspension
  • Double Dampers
  • Up to 130kg (290lbs) Manual Weight Adjustment
  • 60mm (2.375”) Suspension Height Adjustment in 3 Positions
  • 100mm (4”) Suspension Stroke
  • Adjustable Upper Double Locking Slide Rails with 5mm Reinforcement Bars
  • 360 Degree Turntable

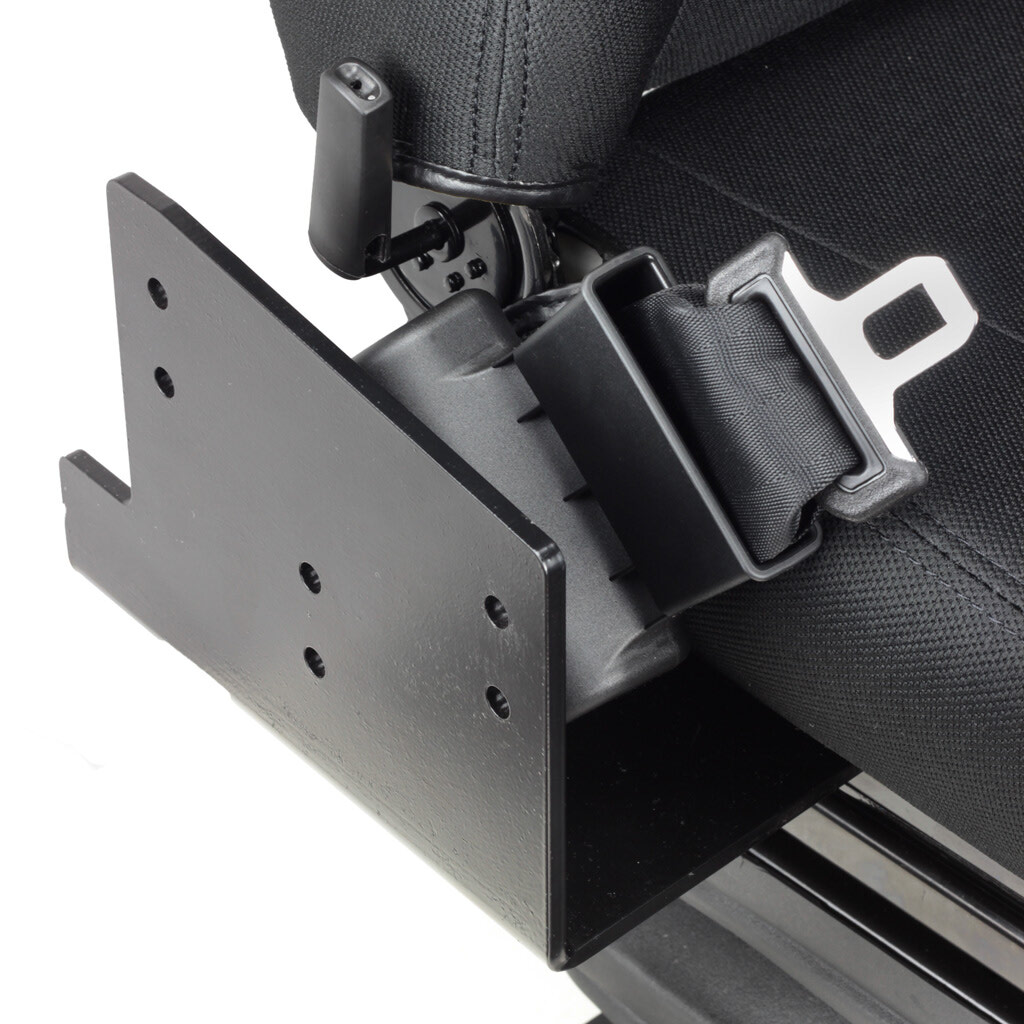

  • Right Hand Joystick Console (POD) Bracket
  • Adjustable 2.5" Left Hand Armrest
  • 3" Retractable Seat Belt
  • Universal Mounting Plates Installed On Seat

Bolt Pattern

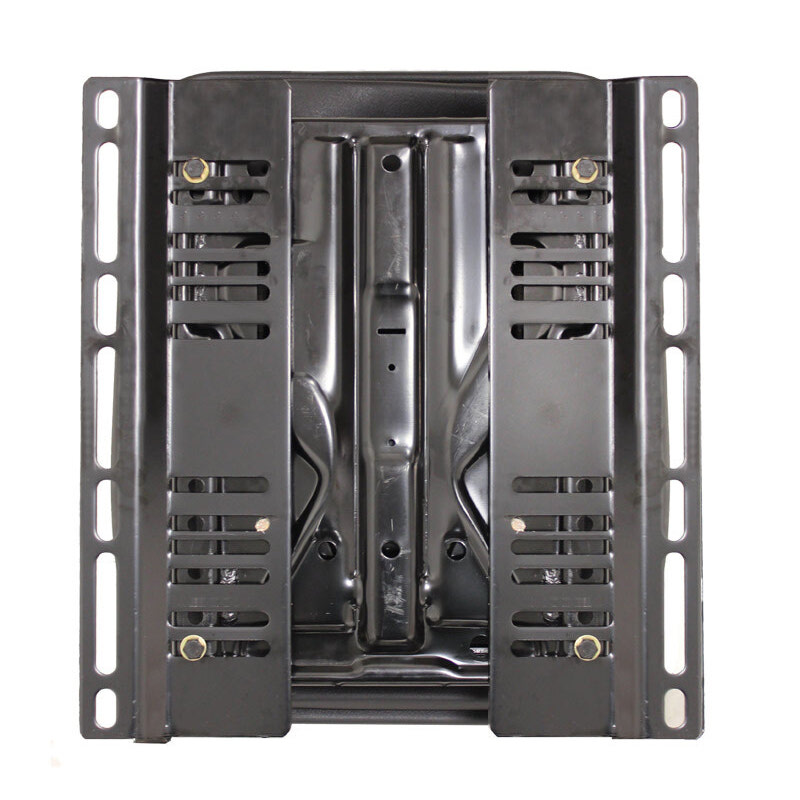

  • Universal Mounting Plates (880-59) Shipped with Seat
  • Side to Side - Adjustable from a Minimum 346mm (13-5/8") to a Maximum 467mm (18-3/8")
  • Front to Back - Various up to 406mm (16")

Industry Standards

  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302
  • Seat Belt Anchor: ISO 6683

Replacement For

  • Caterpillar Seat Group Number 356-1227, 356-1963, 415-0041
