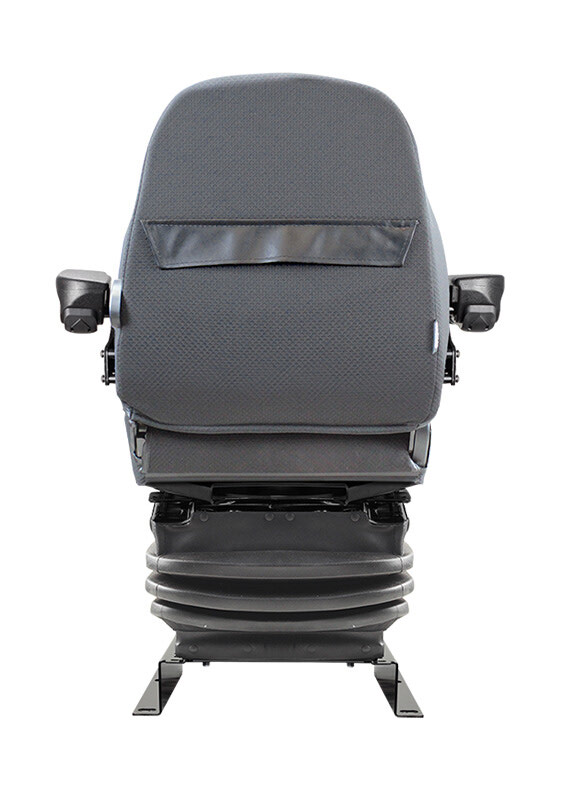

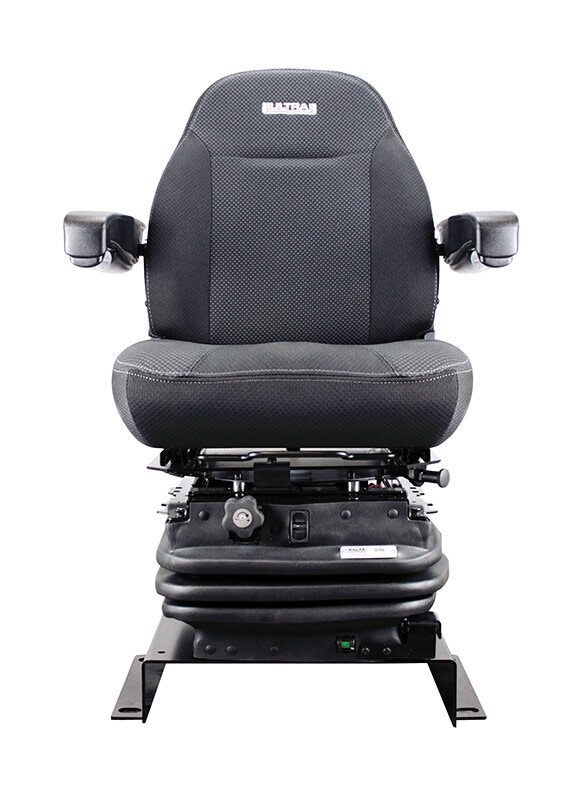

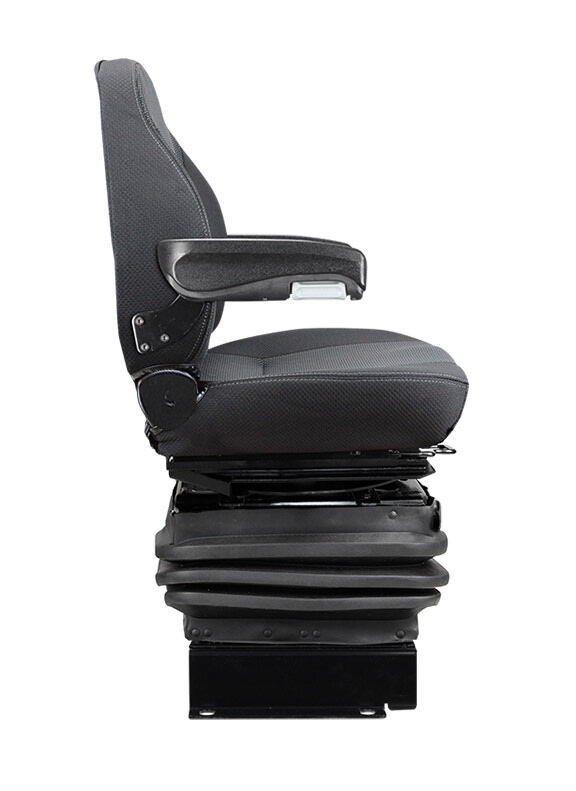

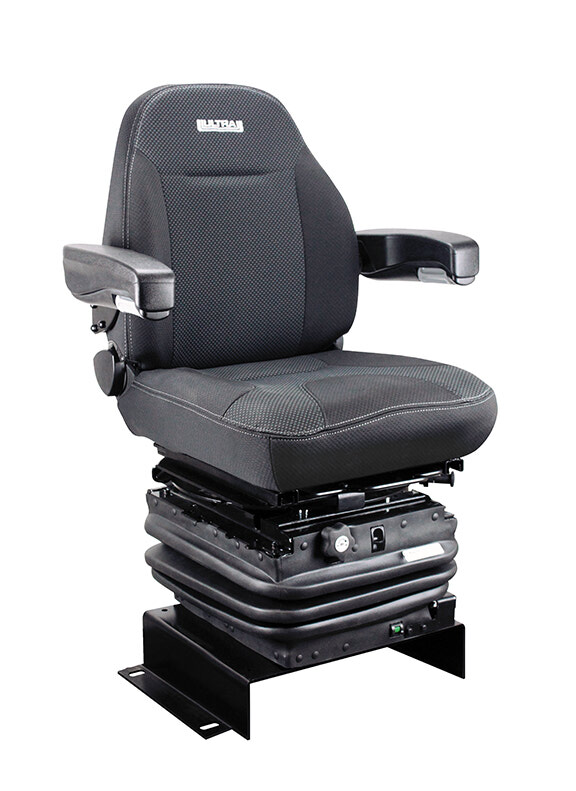

K778SC MB Caterpillar Scraper Seat

SELECT YOUR SEAT

		$3,078.67 USD K778SC MB (CAT) Caterpillar Scraper Seat 58572C24 Upper Double Locking Slide Rails Air Suspension Seat.

		None of the above This field is optional...

SELECT YOUR HEADREST

		$56.00 USD Adjustable Black/Grey Cloth Headrest 870221 Suited For K7, T5 & T7 Series Seat Models, Administrator & Drafting 24 Hour Office Chairs

		$56.00 USD Adjustable Black Vinyl Headrest 87023 Suited For K7, T5 & T7 Series Seat Models, Administrator & Drafting 24 Hour Office Chairs

		None of the above This field is optional...

SELECT YOUR SEAT BELT

		$152.00 USD 2 inch Retractable Seat Belt 81065 Suited For Most Seat Models.

		$182.67 USD 3 inch Retractable Seat Belt 81067 Suited For Most Seat Models.

		None of the above This field is optional...

Let us Help! What are you installing this seat in?

$0 Base Price

+ $NaN SELECT YOUR SEAT

+ $NaN SELECT YOUR HEADREST

+ $NaN SELECT YOUR SEAT BELT

+ $NaN Let us Help! What are you installing this seat in?

+ $0 Price Modifiers

+ $0 Subtotal

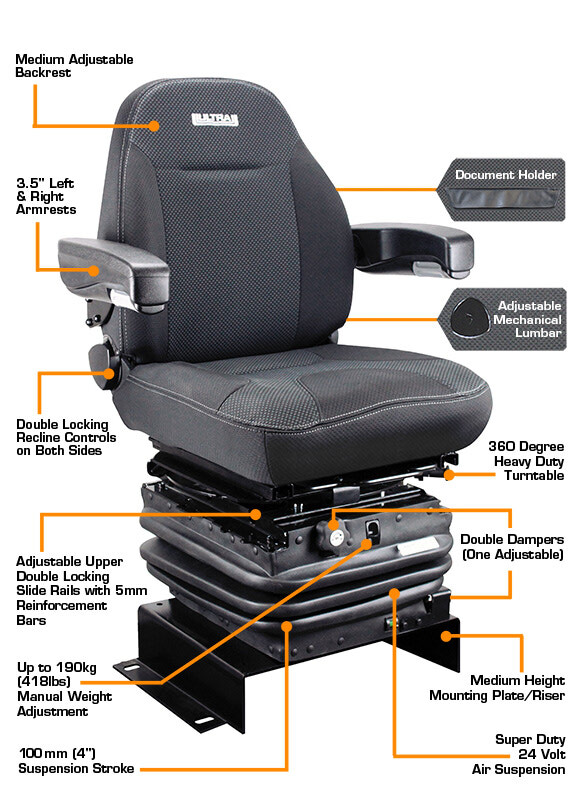

Features

Medium Adjustable Backrest
Double Locking Recline with Controls on Both Sides
Document Holder
Adjustable Mechanical Lumbar
Extra Large Seat and Back Cushions
Heavy Duty 24 Volt Air Ride Suspension
Double Dampers (One Adjustable)
Up to 181kg (400bs) Manual Weight Adjustment
125mm (5”) Suspension Stroke
Adjustable Upper Double Locking Slide Rails
3.5" Left and Right Armrests
360 Degree Turntable

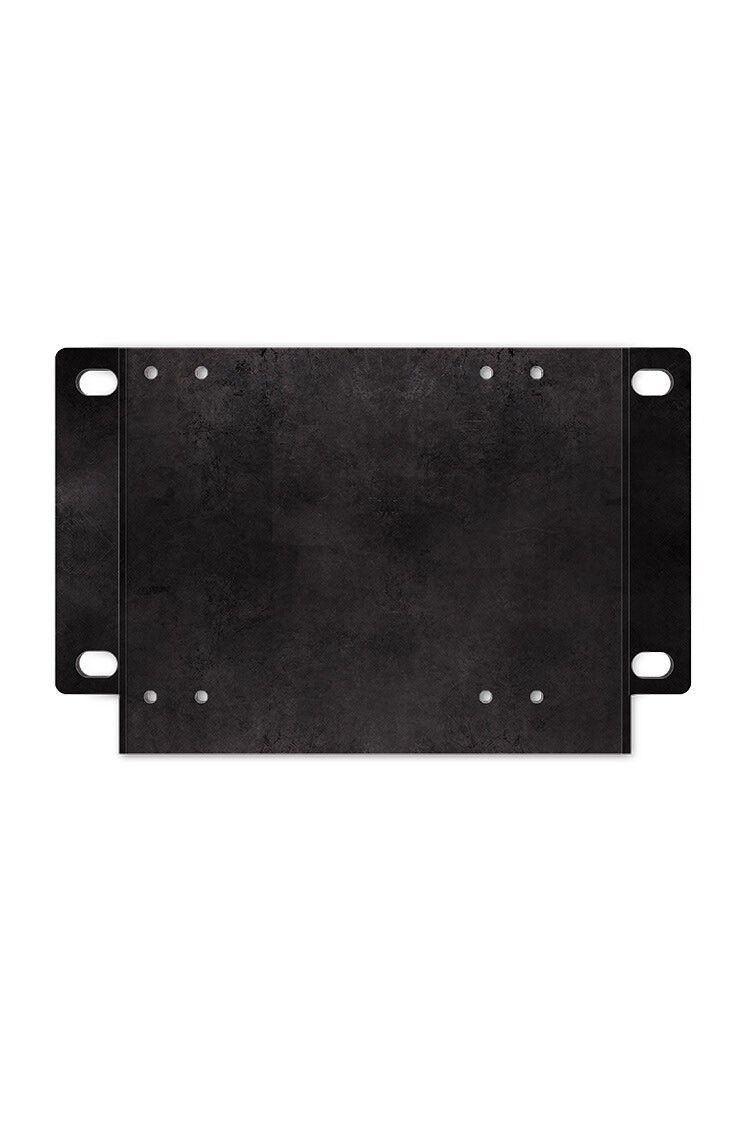

Bolt Pattern

260 mm (10.25”) Side to Side
248mm (9.75") Front to Back

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302
Seat Belt Anchor: ISO 6683

Replacement For

Cat Seat/Cat Scraper Seat: 154-2492, 230-1389, 284-5903, 399-7946
