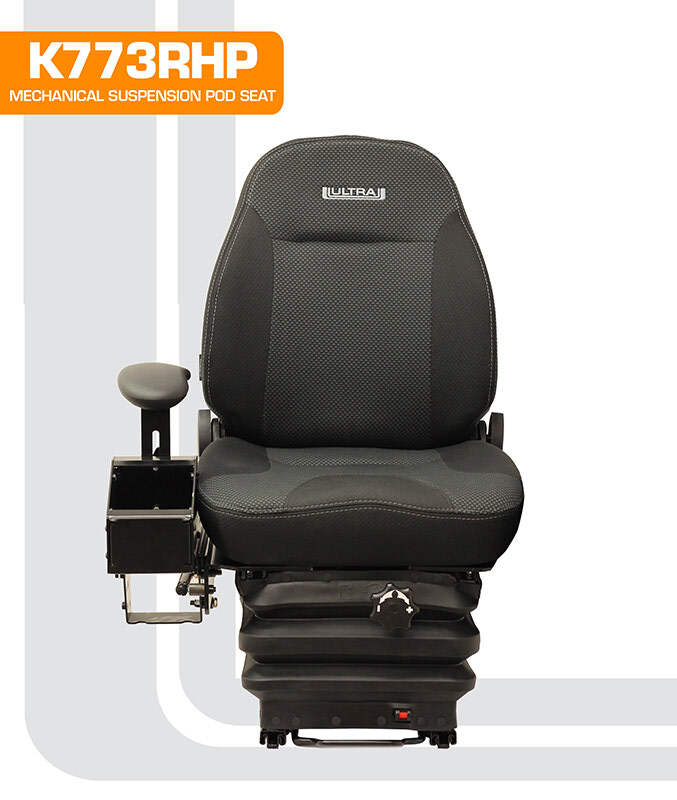

K773HDRHP Mechanical Suspension Right Hand Pod Seat

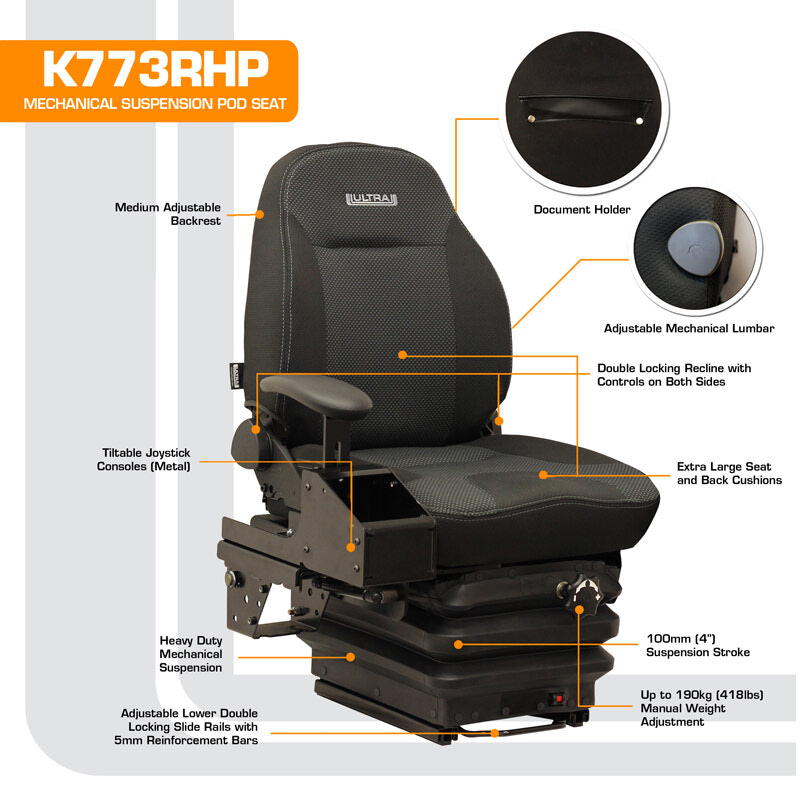

Features

• Medium Adjustable Backrest

• Double Locking Recline with Controls on Both Sides
• Extra Large Seat and Back Cushions

• Adjustable Mechanical Lumbar

• Document Holder

• Double Dampers
• Tilt-able Joystick Console (Metal)

• Heavy Duty Mechanical Suspension

• Up to 190kg (418lbs) Manual Weight Adjustment
• 100mm (4”) Suspension Stroke

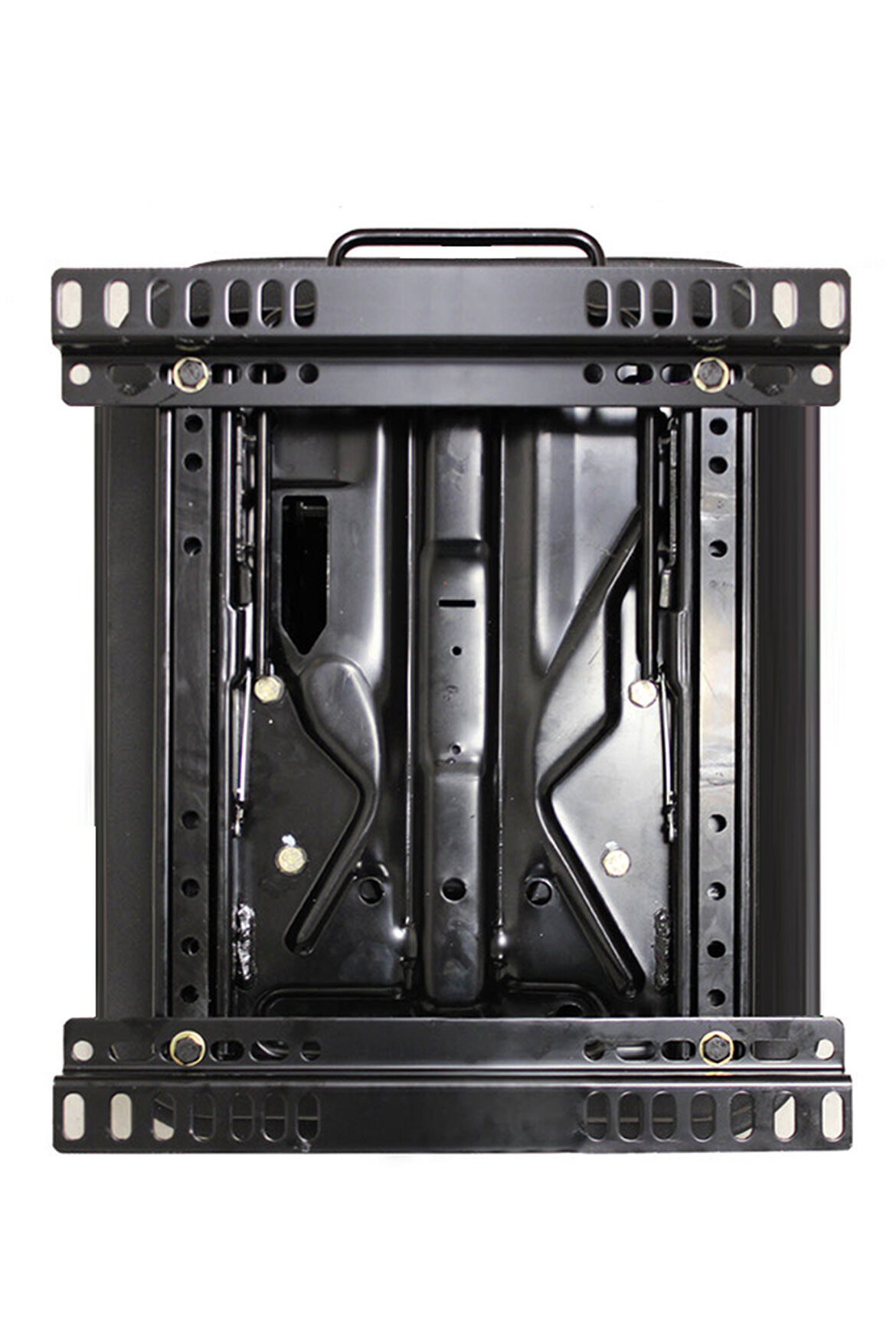

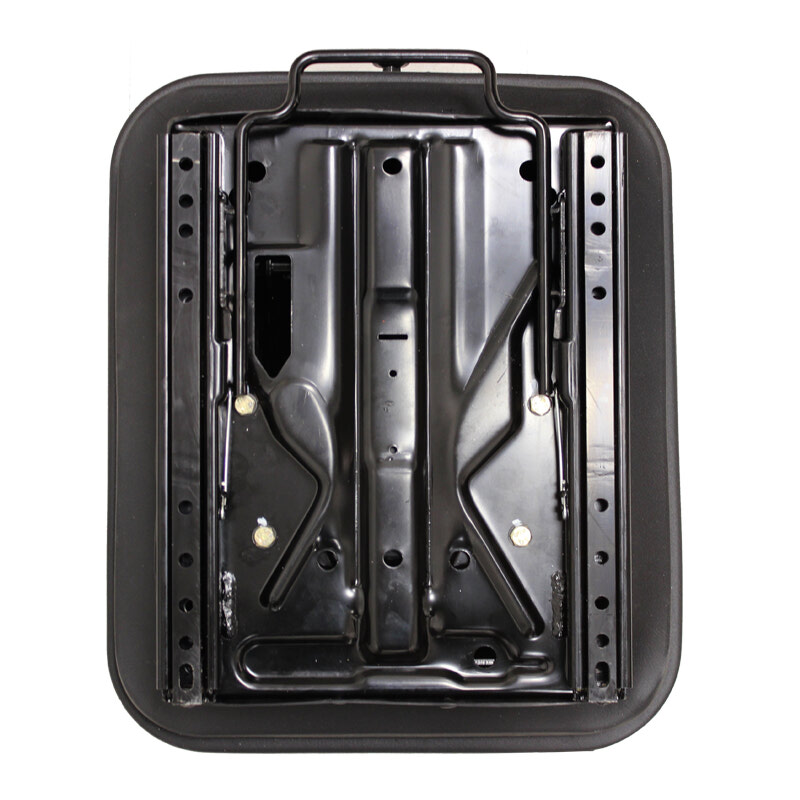

• Adjustable Lower Double Locking Slide Rails with 5mm Reinforcement Bars


Bolt Pattern

• 260mm (10.25") Side to Side

• 229/254/279/305mm Front to Back
• Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)

Industry Standards

• Operator Seat Vibration: ISO 7096
• Flammability: FMVSS 302
• Seat Belt Anchor: ISO 6683
