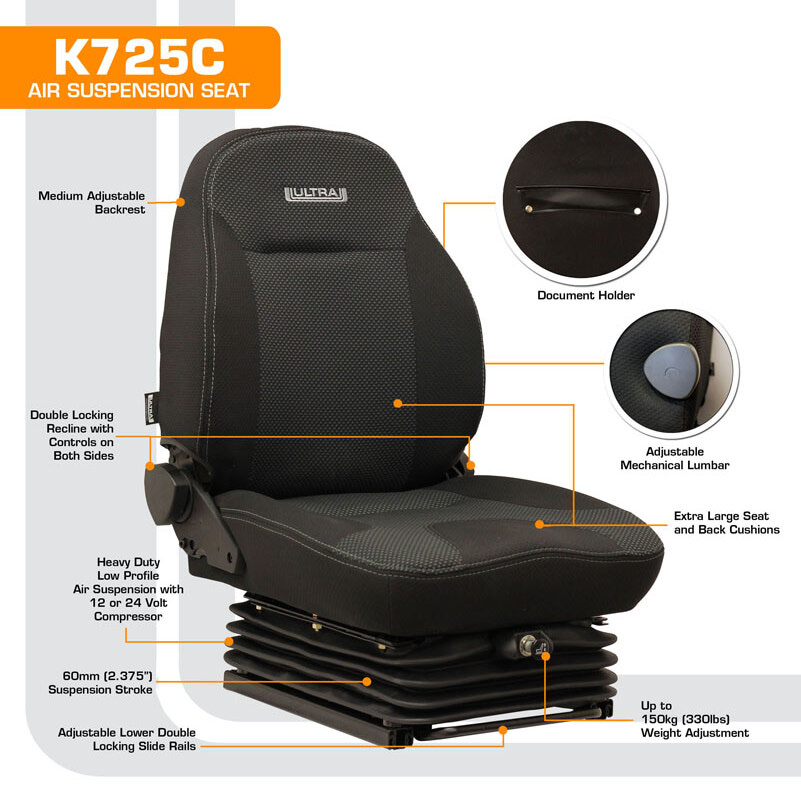

Features
- Medium Adjustable Backrest
- Double Locking Recline with Controls on Both Sides
- Extra Large Seat and Back Cushions
- Document Holder
- Adjustable Mechanical Lumbar
- Heavy Duty Low Profile Air Suspension with 12 or 24 Compression
- Up to 150kg (330lbs) Weight Adjustment
- 60mm (2.375”) Suspension Stroke
- Adjustable Lower Double Locking Slide Rails

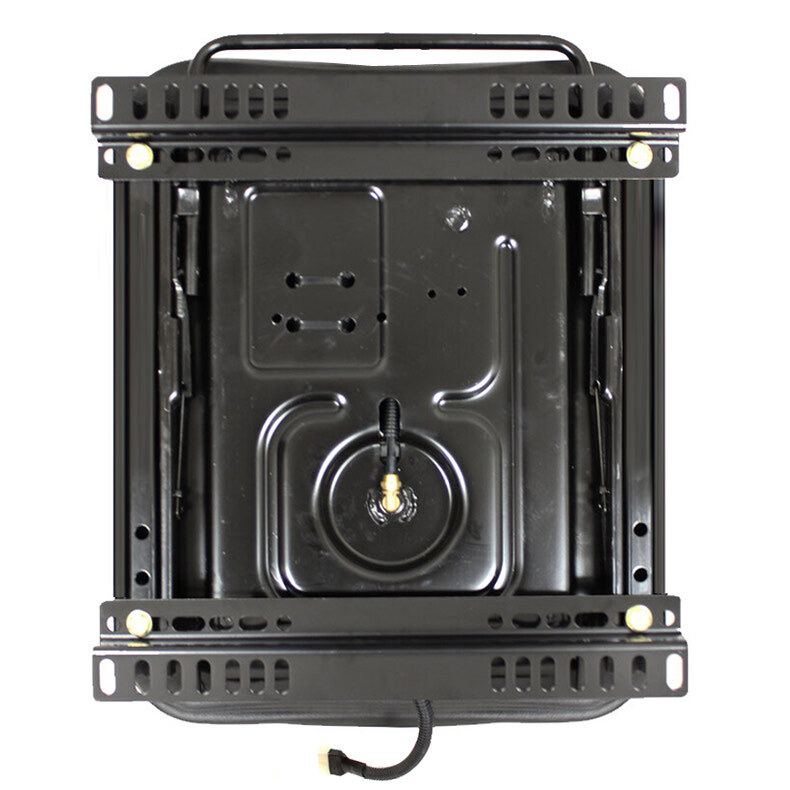

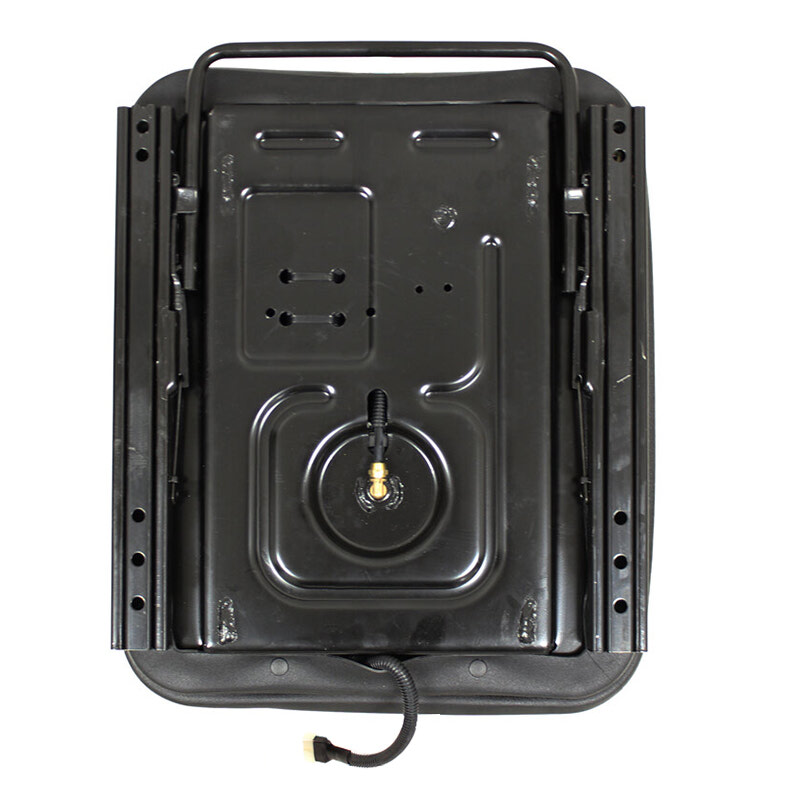

Bolt Pattern
-
327mm (12.875”) Side to Side
-
251/279/330mm (9.875/11/13”) Front to Back (See Bolt Pattern Download for Details)
- Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)
Industry Standards
-
Operator Seat Vibration: ISO 7096
-
Flammability: FMVSS 302
-
Seat Belt Anchor: ISO 6683
Replacement For
- KAB 25/T, 25/E1
