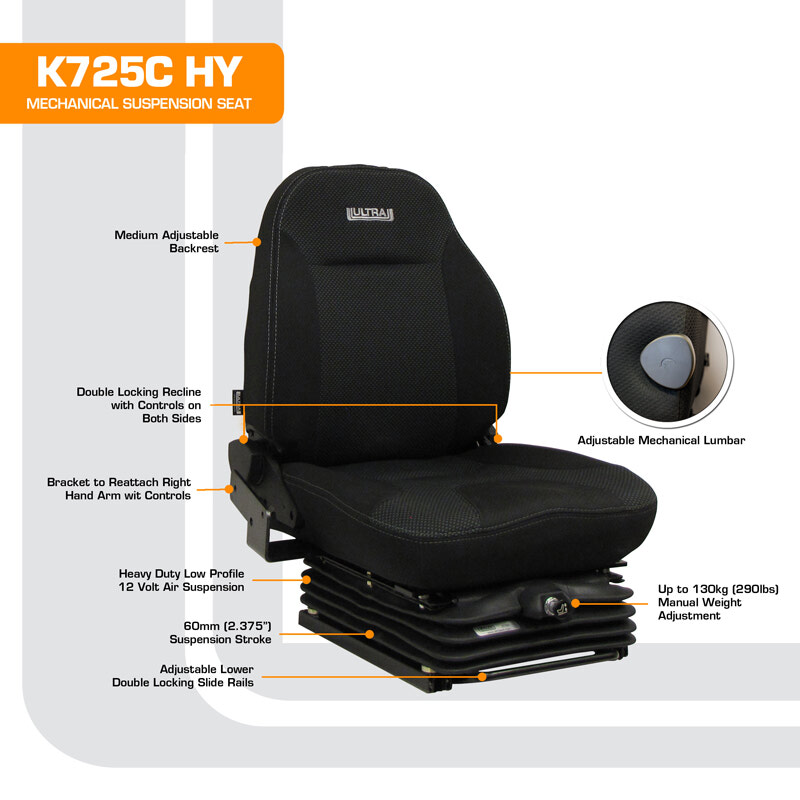

Features
- Medium Adjustable Backrest
- Heavy Duty 12 Volt Air Suspension
- Adjustable Mechanical Lumbar
- Double Locking Recline with Controls on Both Sides
- Up to 132kg (290lbs) Manual Weight Adjustment
- 60mm (2.375”) Suspension Stroke

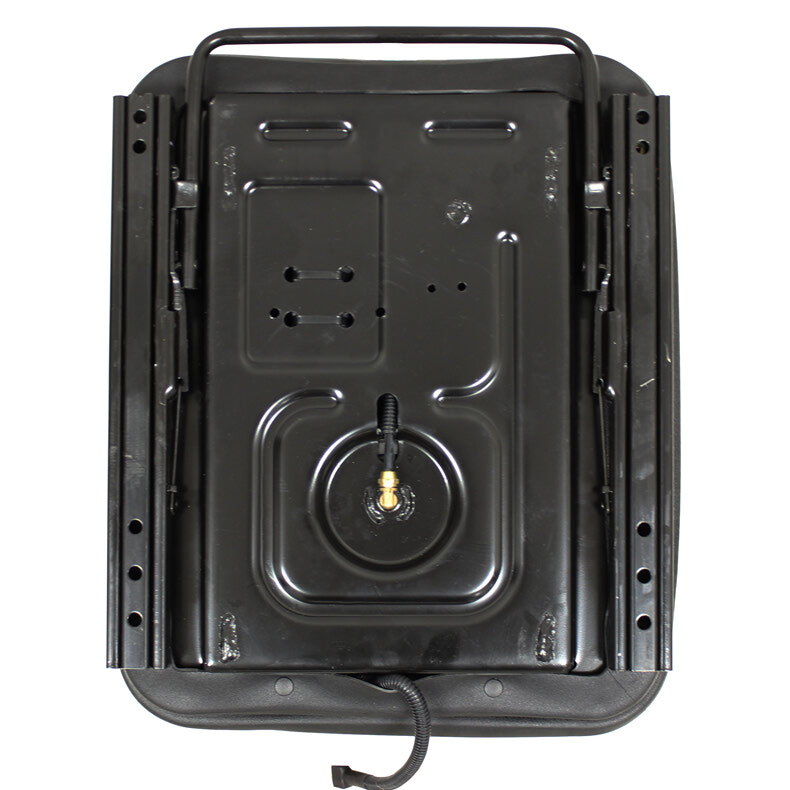

- Adjustable Lower Double Locking Slide Rails

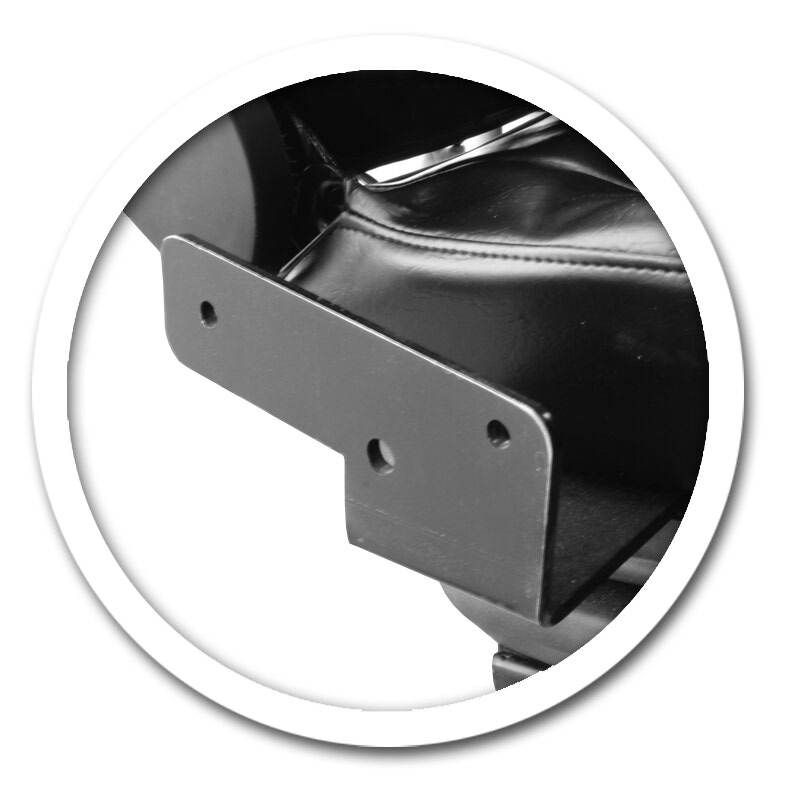

- Bracket to Reattach Right Hand Arm with Controls

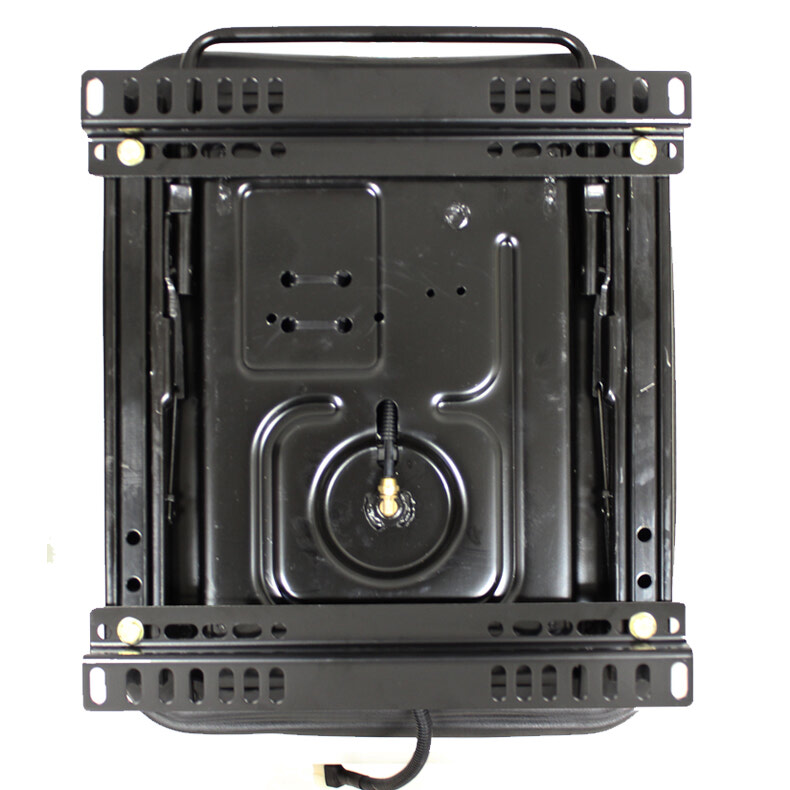

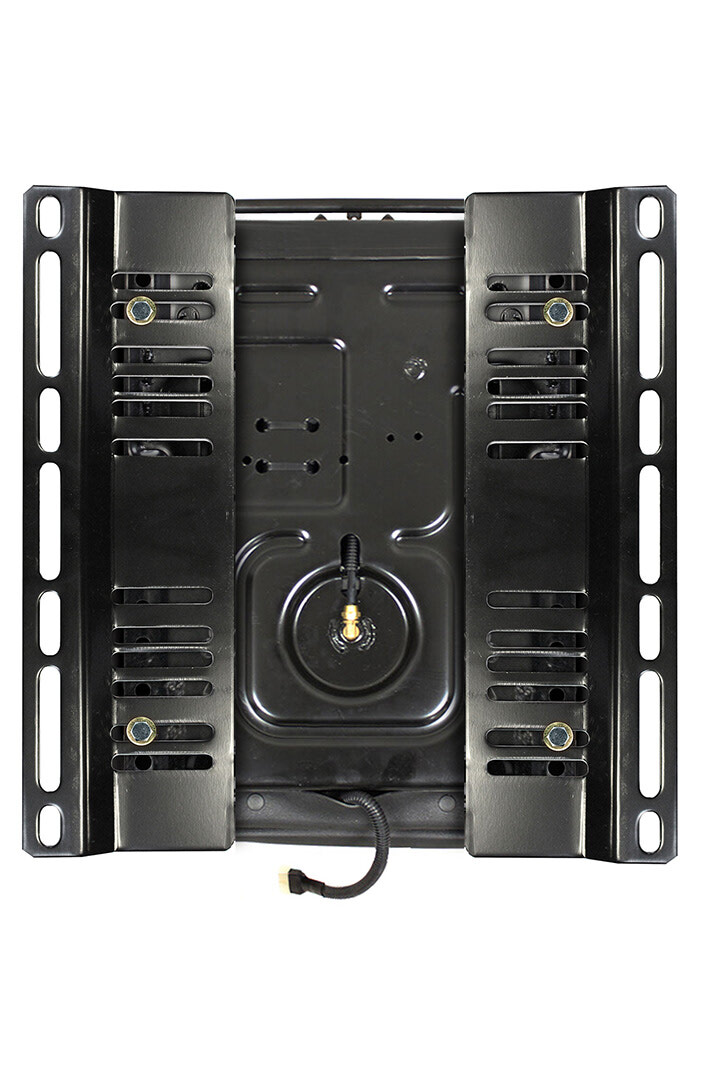

- Z-Bar Mounting Brackets
Bolt Pattern
-
328mm (12.913”) Side to Side
-
270/300/330mm (10.629/11.811/13”) Front to Back (See Bolt Pattern Download for Details)
- Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)
Industry Standards
- Operator Seat Vibration: ISO 7096
- Flammability: FMVSS 302
- Seat Belt Anchor: ISO 6683
