Features

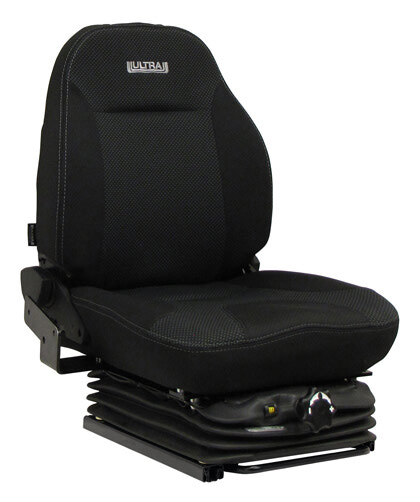

- Designed for Hyster Forklifts with Controls Built into Right Hand Side
- Medium Adjustable Backrest
- Adjustable Mechanical Lumbar
- Double Locking Recline with Controls on Both Sides
- Heavy Duty Low Profile Mechanical Suspension
- Up to 130kg (290lbs) Manual Weight Adjustment
- 60mm (2.375”) Suspension Stroke

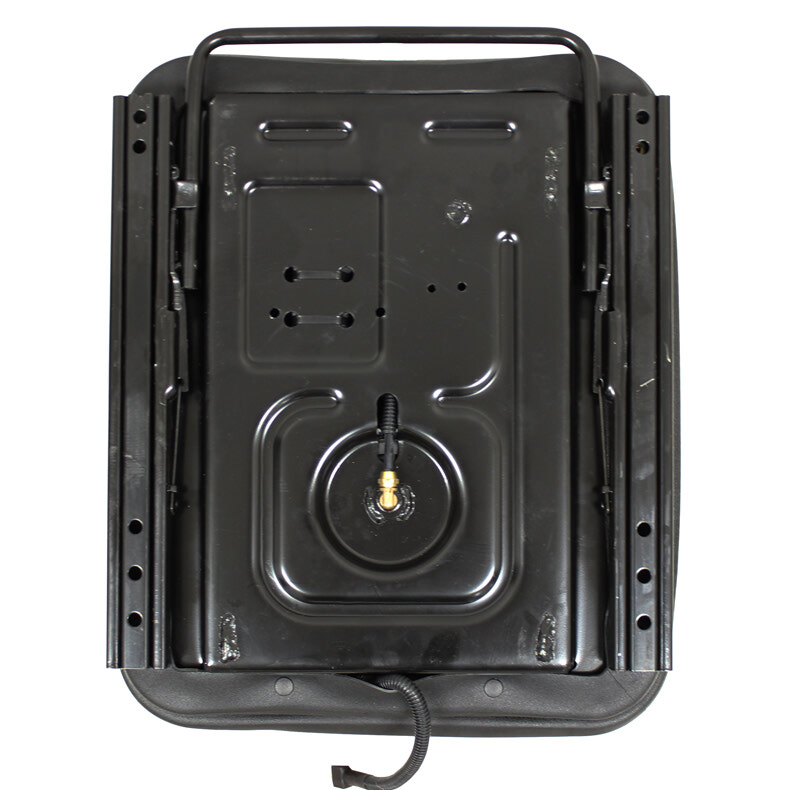

- Adjustable Lower Double Locking Slide Rails

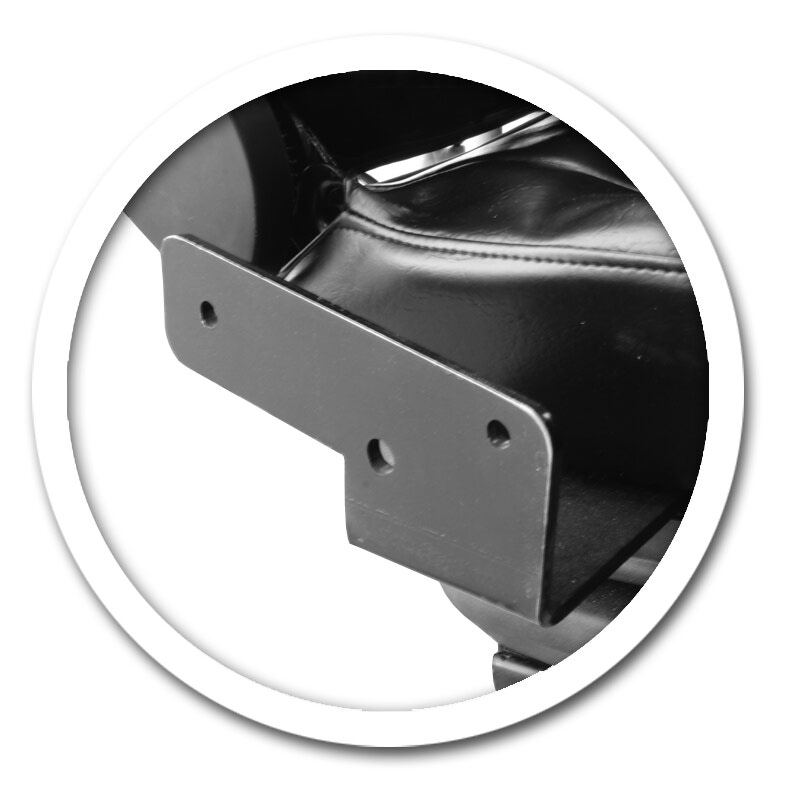

- Bracket to Reattach Right Hand Arm with Controls
Bolt Pattern
-
328mm (12.913”) Side to Side
-
270/300/330mm (10.629/11.811/13”) Front to Back (See Bolt Pattern Download for Details)

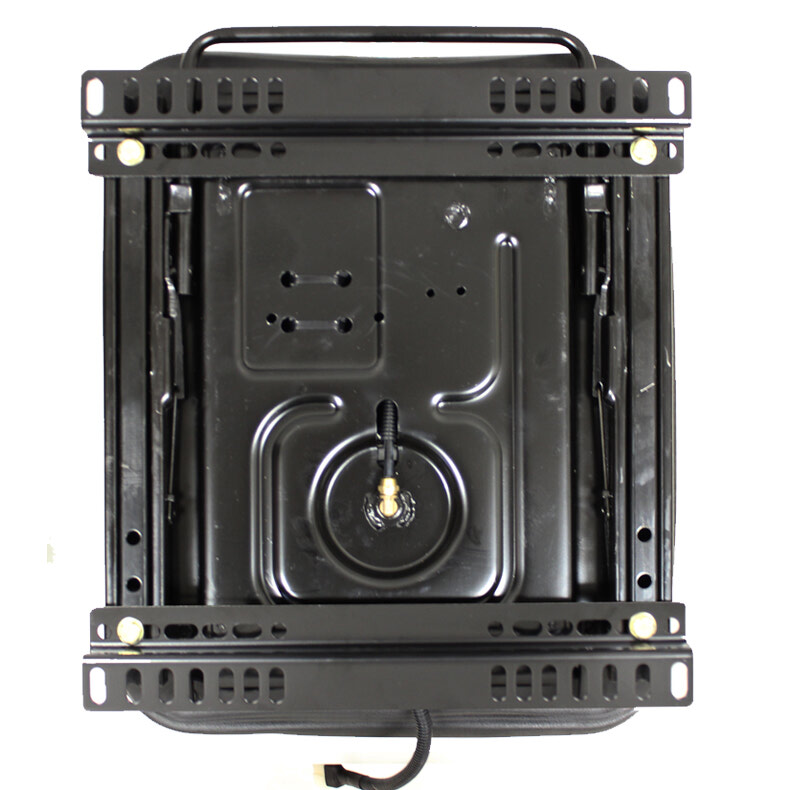

- Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)
