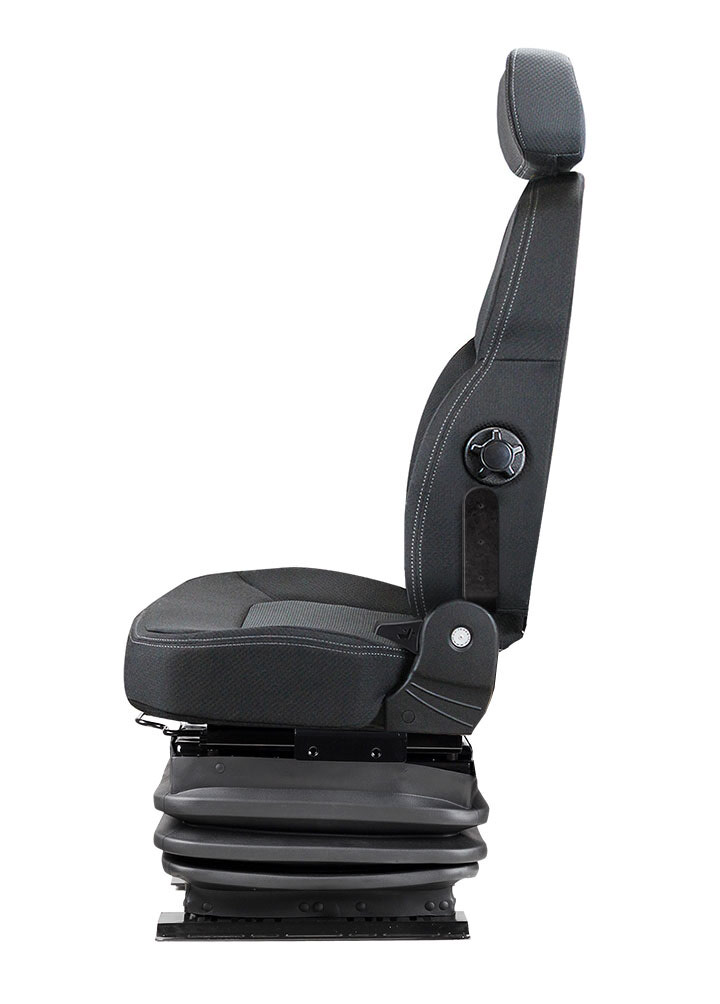

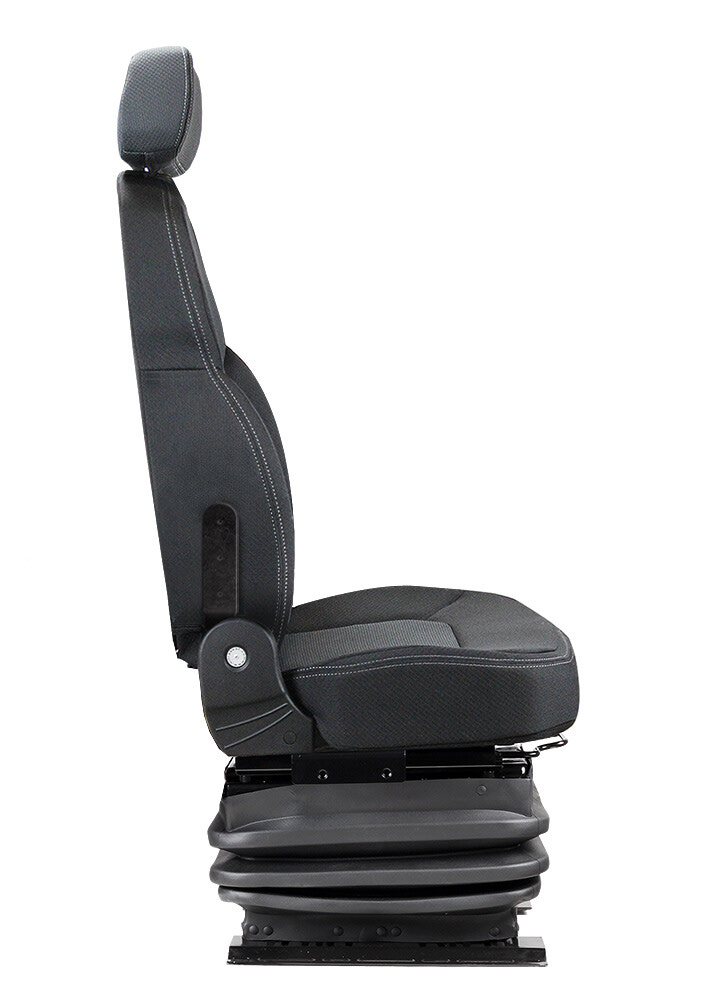

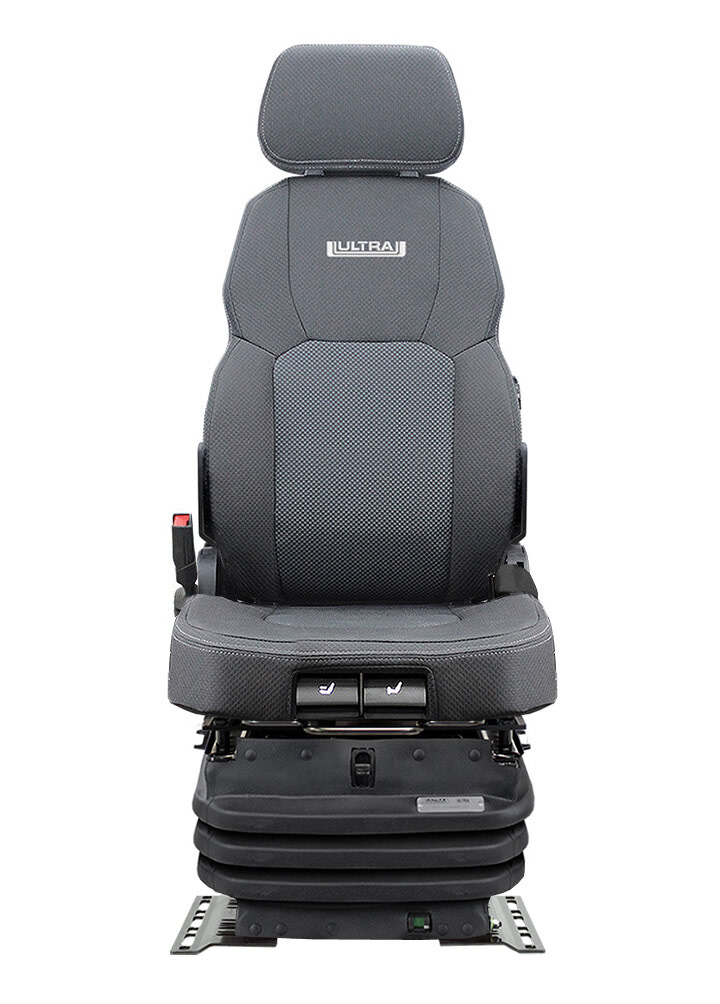

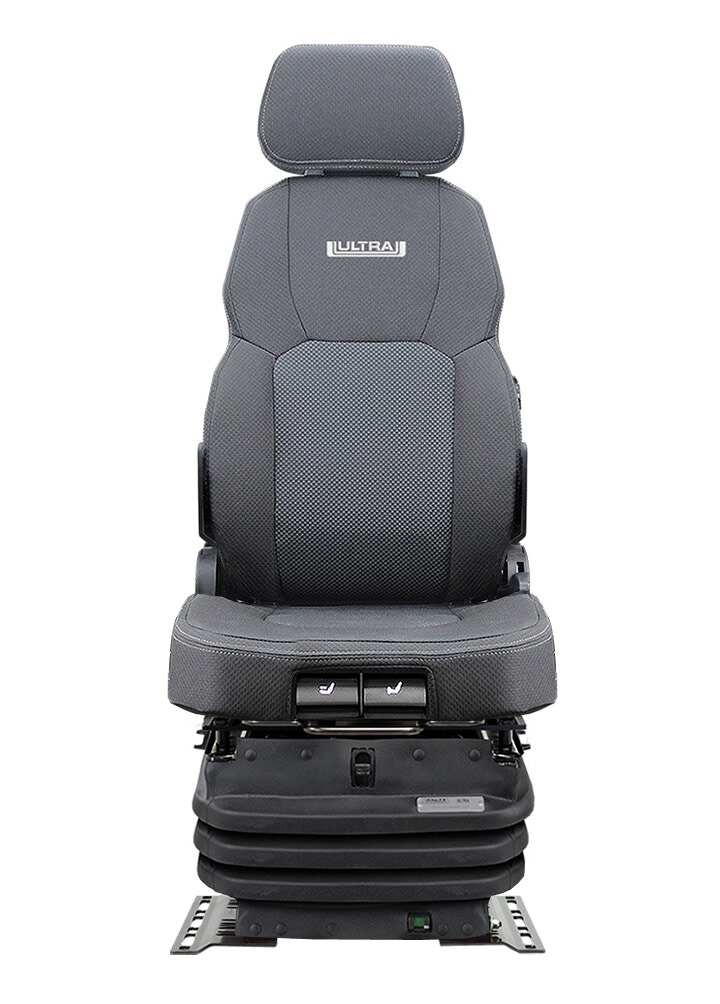

V878CHD JA - Air Suspension Seat with Double Dampers and Dual Arm Brackets For Joy Stick Controls

$0 Base Price
+ $NaN SELECT YOUR SEAT
+ $NaN SELECT YOUR SEAT BELT
+ $NaN Let us Help! What are you installing this seat in?
+ $0 Price Modifiers
$0 Subtotal

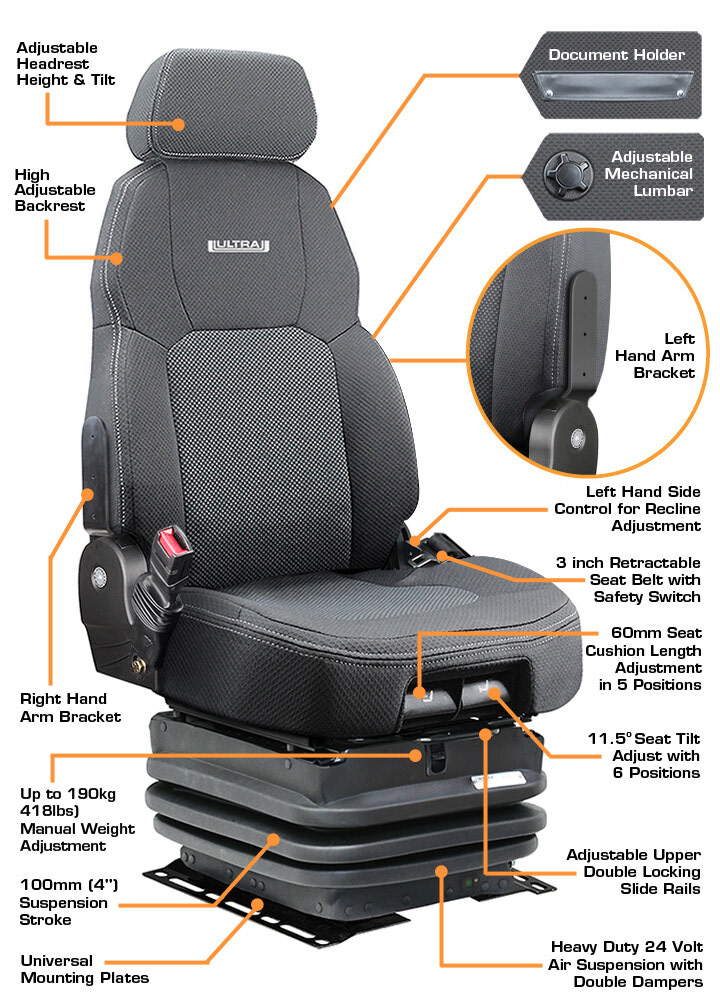

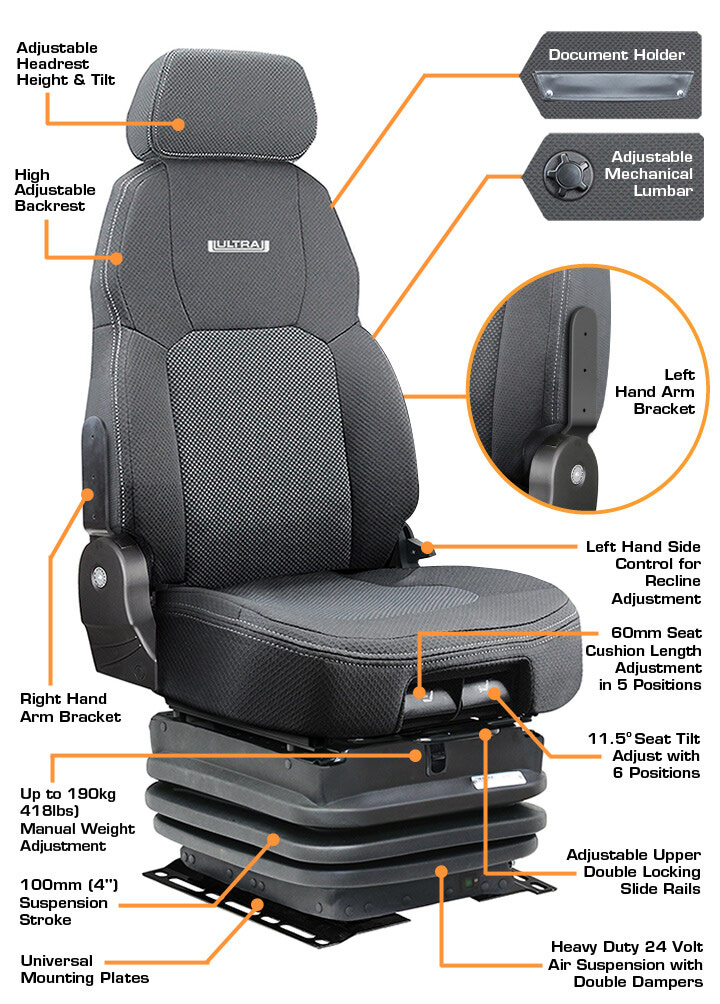

Features

  • High Adjustable Backrest
  • Adjustable Headrest/Height & Tilt
  • Left-Hand Side Control for Recline Adjustment

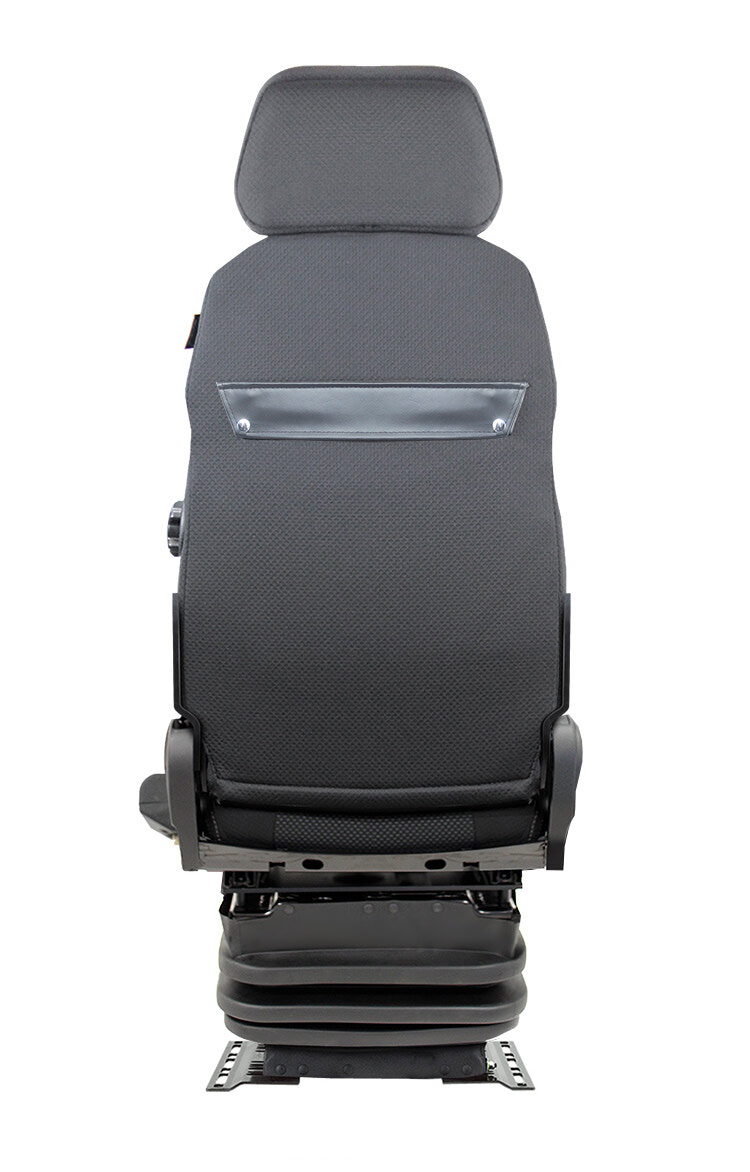

  • Document Holder
  • Adjustable Mechanical Lumbar
  • 11.5° Seat Tilt Adjustment In 6 Positions
  • 60mm Seat Cushion Length Adjustment in 5 Positions

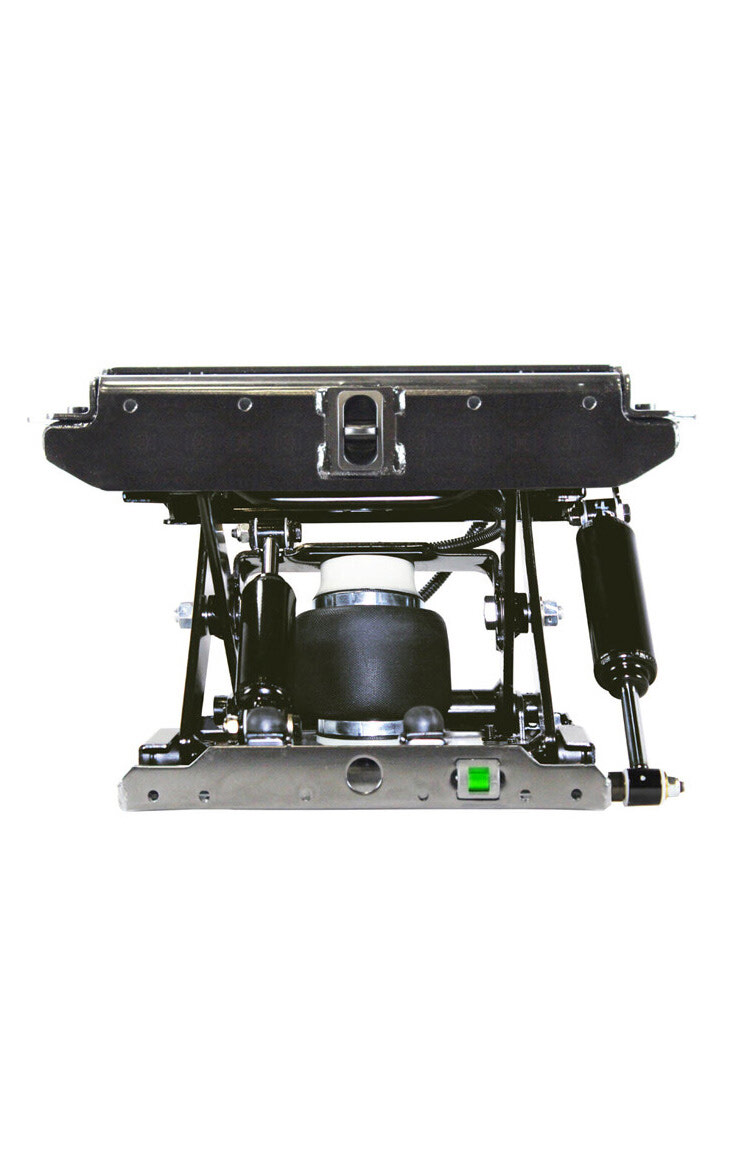

  • Heavy Duty 24 Volt Air Suspension with Double Dampers
  • Up to 230kg (507lbs) Manual Weight Adjustment
  • 100mm (4”) Suspension Stroke
  • Adjustable Upper Double Locking Slide Rails
  • 3 inch Retractable Seat Belt with Safety Switch • 81067SW (Normally Open)

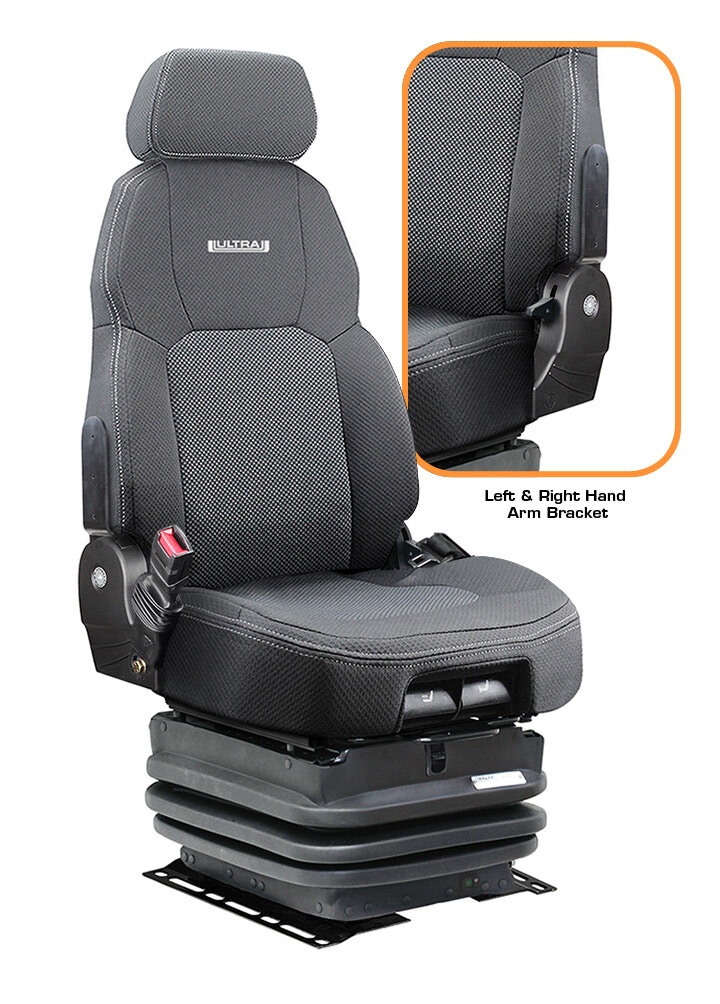

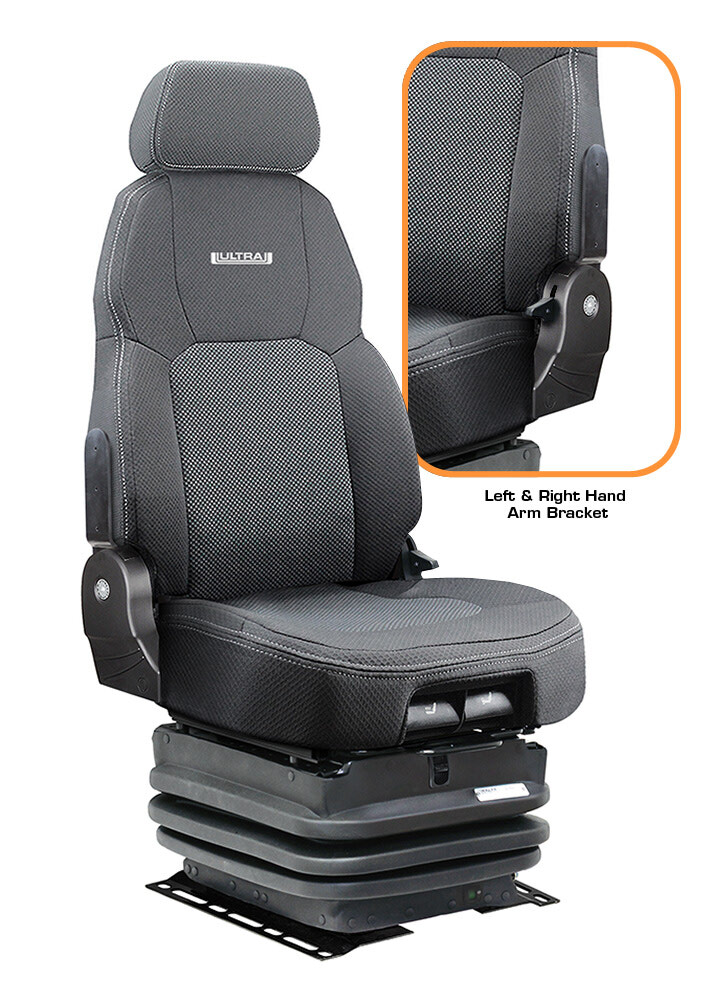

  • Joy Stick Arm Brackets (Both Sides)
  • Universal Mounting Plates

Bolt Pattern

  • Mounting Plates (88059) Shipped With Seat

  • Side to Side - Adjustable From a Minimum of 346mm (13 5/8") to a Maximum of 467mm (18 3/8")

  • Front to Back - Various up to 406 mm (16")

Industry Standards

  • Operator Seat Vibration: ISO 7096
  • Flammability: FMVSS 302

Replaces John Deere Seat:

  • F076665, F645347
  • AT412195, AT522603 (Grade Pro)
