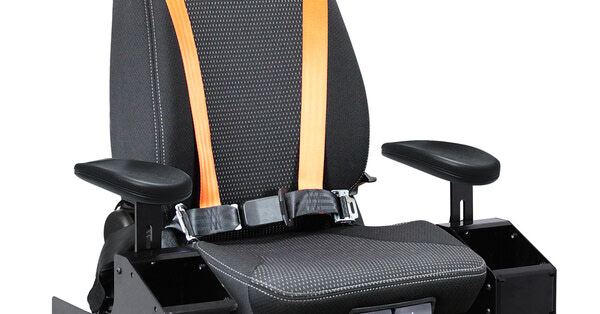

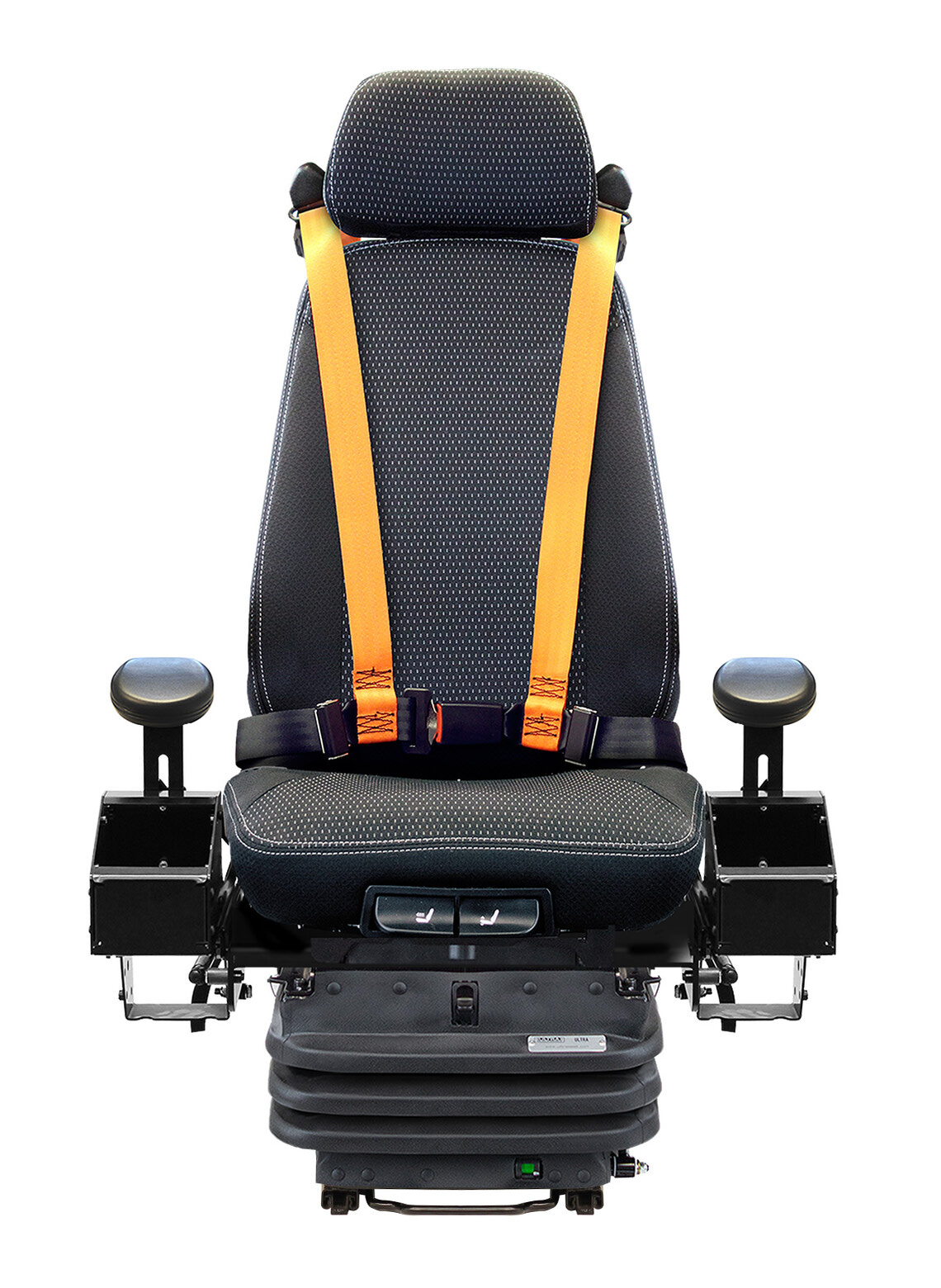

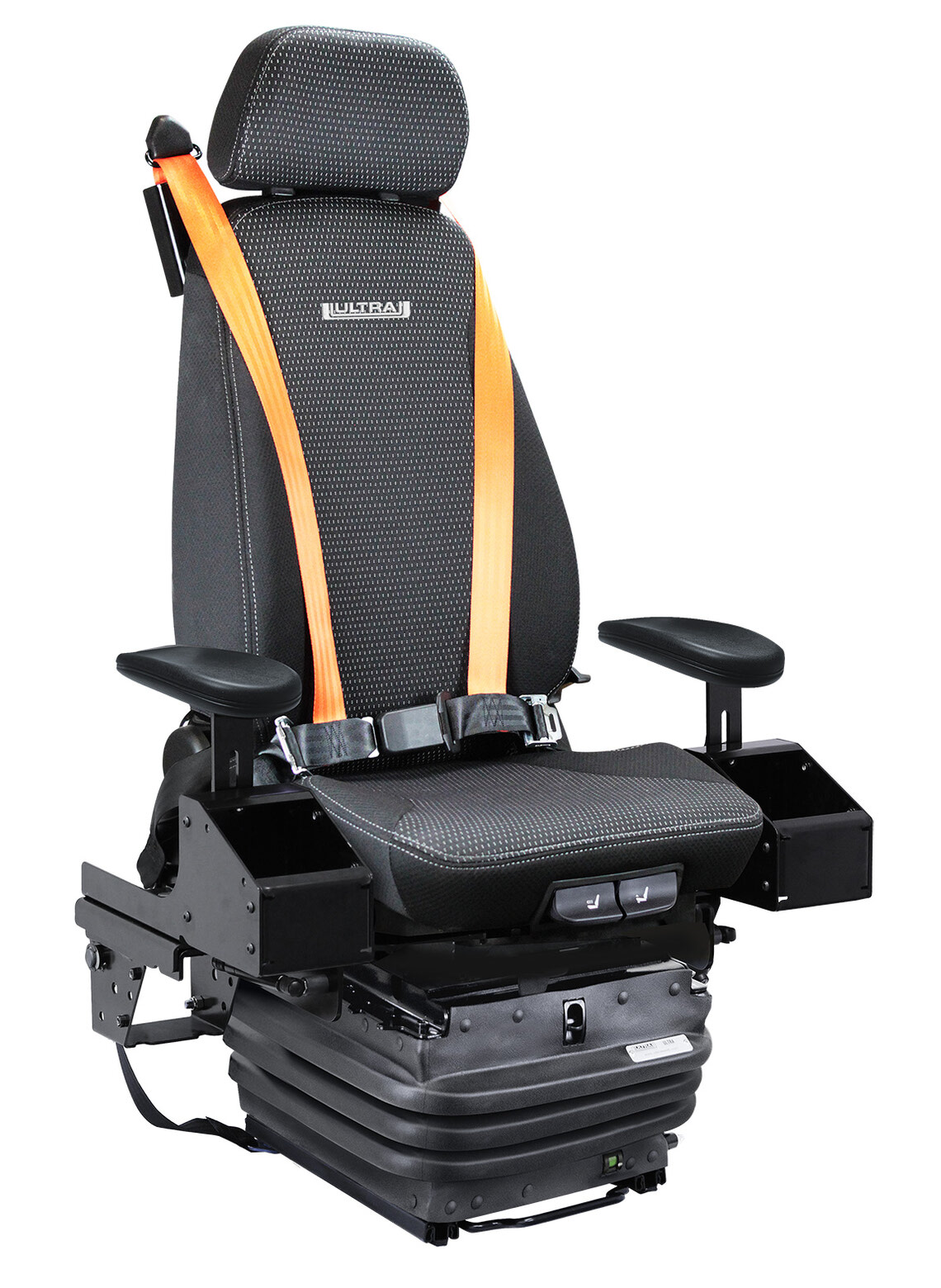

J978H4 PC - 4 Point Harness Air Suspension Pod Seat

SELECT YOUR SEAT

		$4,166.67 USD J978H4 PC - Black/Grey Cloth 4 Point Harness Air Suspension Pod Seat 585436C24 J978 H4PC 4 Point Harness Air Suspension Pod Seat

		None of the above This field is optional...

SELECT YOUR ALTERNATE MOUNTING BRACKETS

		$114.67 USD Universal Mounting Plates - (Pair) 880-59 88059 Suited for most applications that require a wide side to side mounting pattern. Increase side to side pattern by a minimum of 3.5in to a maximum of 8in (per mounting bar / each side). Front to back mounting pattern is various to a maximum 406mm (16in).

		None of the above This field is optional...

Let us Help! What are you installing this seat in?

$0 Base Price

+ $NaN SELECT YOUR SEAT

+ $NaN SELECT YOUR ALTERNATE MOUNTING BRACKETS

+ $NaN Let us Help! What are you installing this seat in?

+ $0 Price Modifiers

+ $0 Subtotal

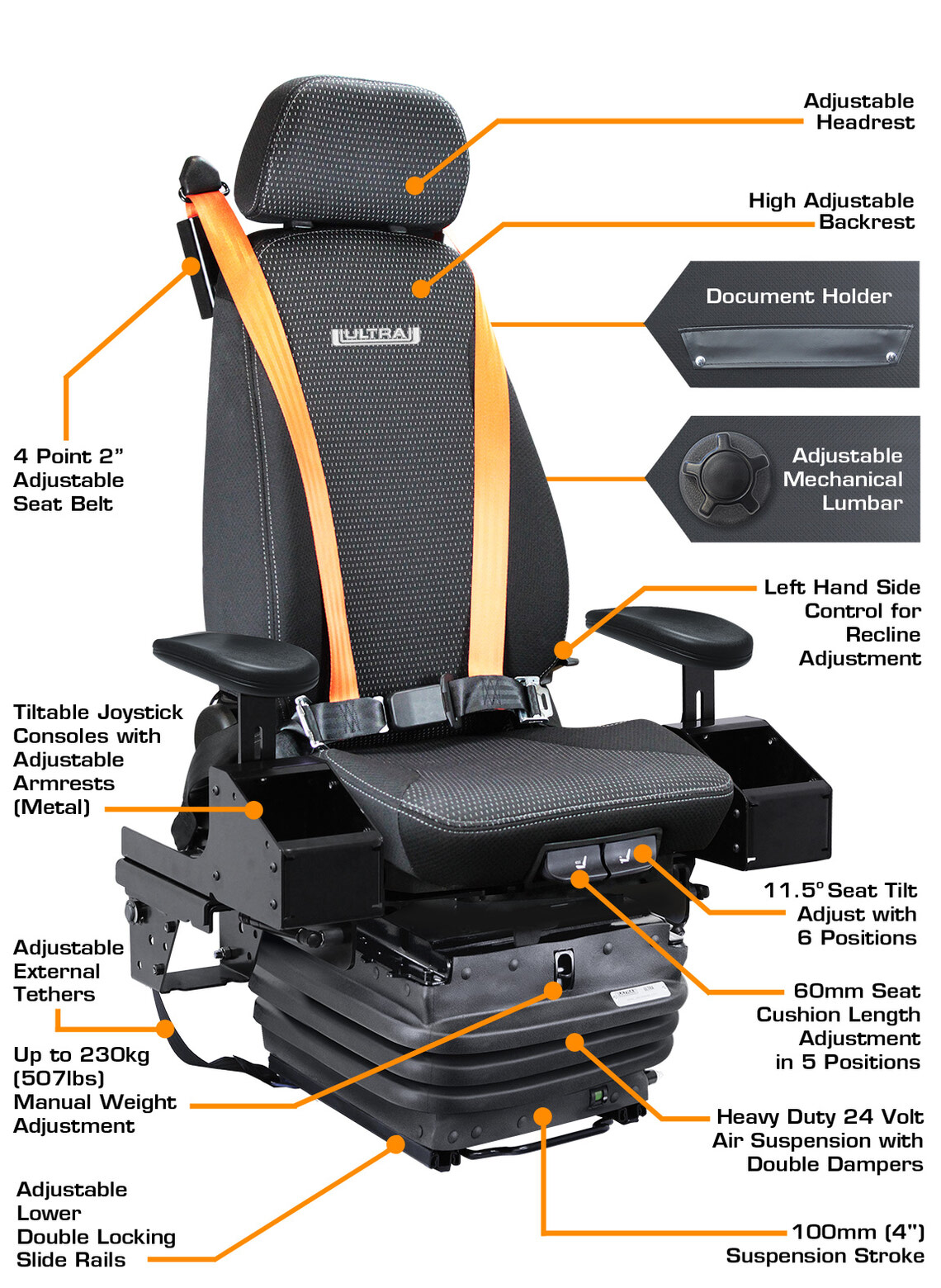

Features

High Adjustable Backrest
Left-hand side Control for Recline Adjustment
Adjustable Mechanical Lumbar
Adjustable Headrest / Height and Tilt
Document Holder
11.5° Seat Tilt Adjustment in 6 Positions
60mm Seat Cushion Length Adjustment in 5 Positions

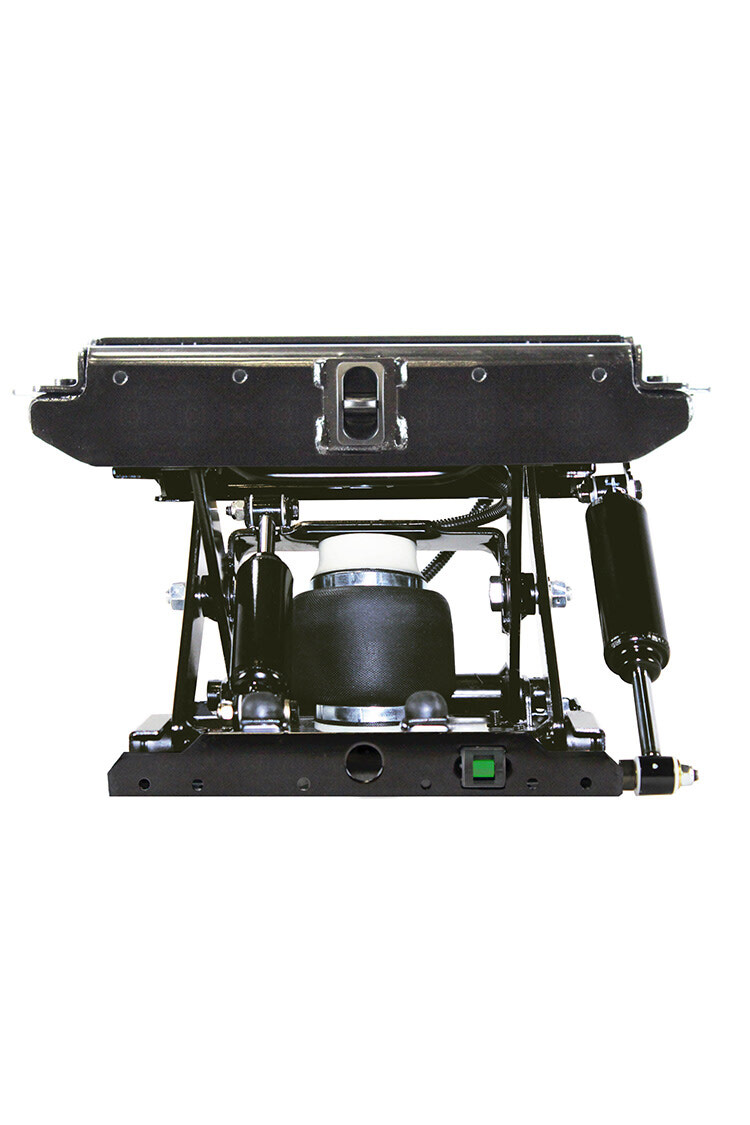

Heavy Duty 24 Volt Air Suspension with Double Dampers
Tilt-able Joystick Consoles (Metal)
Up to 230kg (507lbs) Manual Weight Adjustment
100mm (4") Suspension Stroke
Adjustable Upper Double Locking Lower Slide Rails
4 Point 2” Adjustable Seat Belt
Adjustable External Tethers

Bolt Pattern

260mm (10.25”) Side to Side
Front to Back (Various, See Bolt Pattern Download)

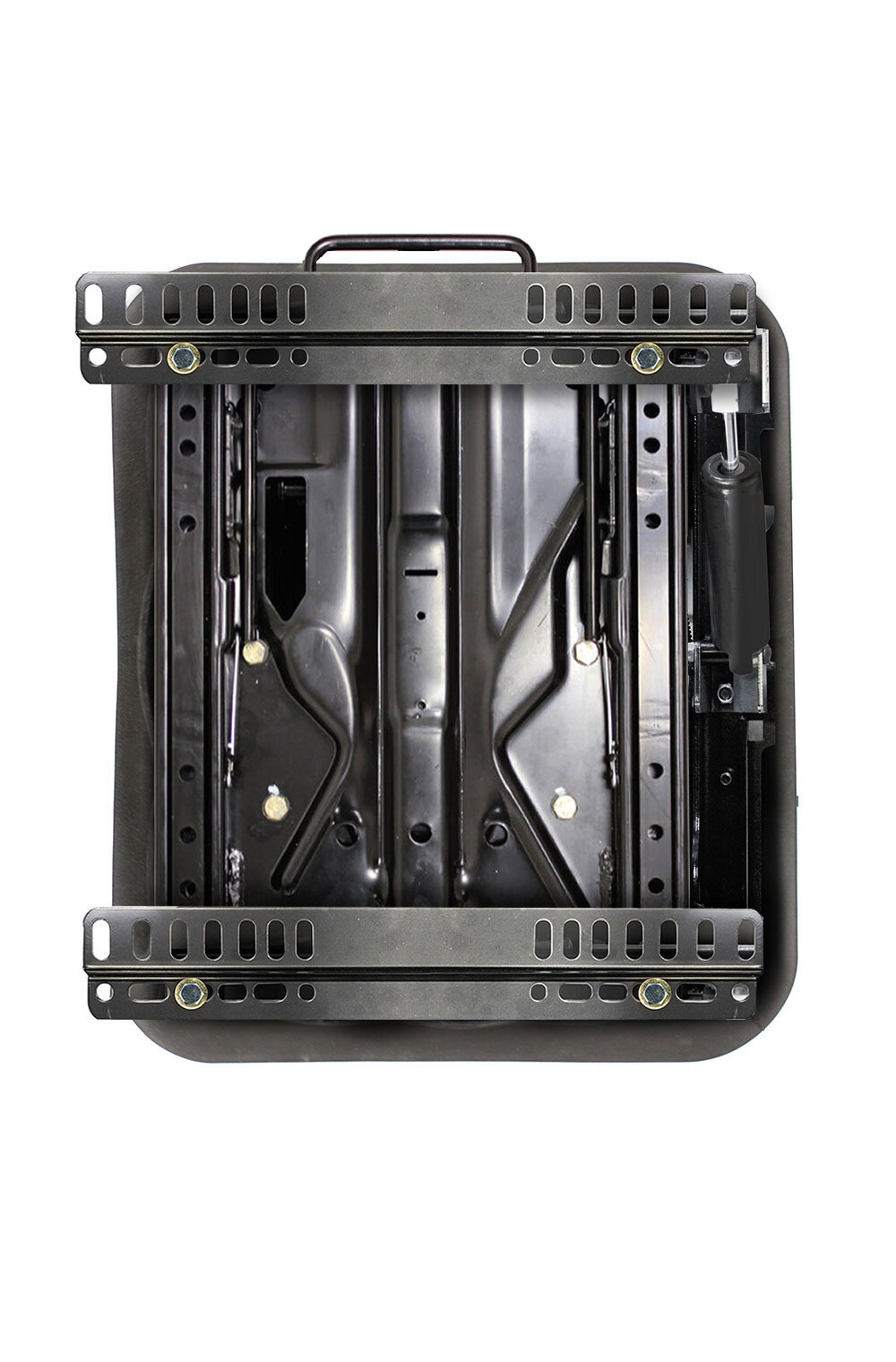

Z-Bar Mounting Brackets Shipped with Seat (See Z-Bar Dimensions Download for Mounting Options)

Industry Standards

Operator Seat Vibration: ISO 7096
Flammability: FMVSS 302
